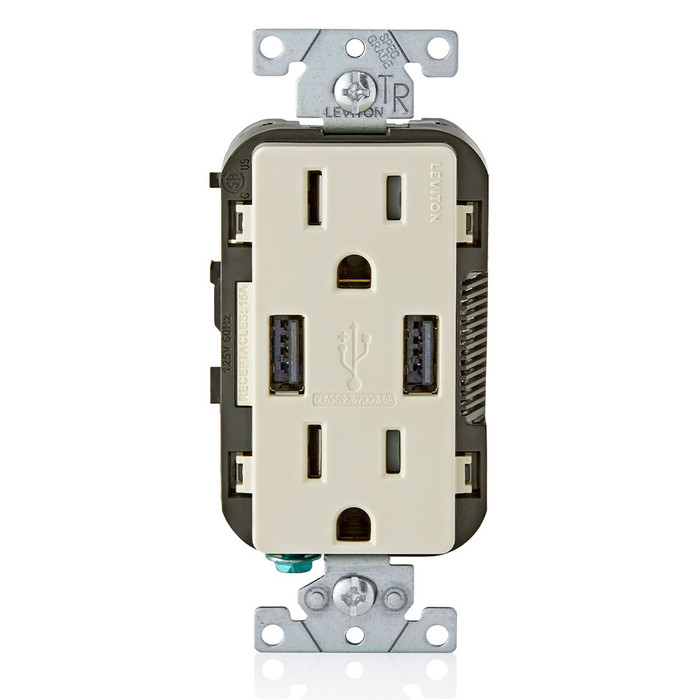

Leviton Tamper-Resistant Decora Duplex Receptacle with USB Charger, 15-Amp 125-Volt NEMA 5-15R

Leviton Tamper-Resistant Decora Duplex Receptacle with USB Charger, 15-Amp 125-Volt NEMA 5-15R

(No reviews yet) Write a Review

Model: T5632-T
Selected Color is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$26.90
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Leviton Tamper-Resistant Decora Duplex Receptacle with USB Charger, 15-Amp 125-Volt NEMA 5-15R

The Leviton Tamper-Resistant Decora Duplex Receptacle with USB Charger is a residential grade, straight blade combination device that pairs a standard duplex receptacle/outlet with a built-in USB charging port in a single Decora® opening. Rated 15-Amp, 125-Volt AC with a NEMA 5-15R configuration, this tamper-resistant device delivers dependable power for everyday household circuits while adding convenient USB charging for phones, tablets, and other low-voltage electronics without occupying an extra outlet slot.

Key Features

  • Tamper-Resistant Construction: Integrated shutter mechanism helps prevent foreign object insertion, supporting child-safety expectations in residential installations.
  • Combination Receptacle and USB Charger: Combines a straight blade duplex receptacle/outlet with a USB charging port in one Decora® device, reducing the need for separate USB adapters or plug-in chargers.
  • Decora® Decorator Style: Sleek, modern rectangular Decora® profile coordinates with standard Decora® wallplates and switches for a consistent look throughout the home.
  • 15-Amp Rating: Rated for 15-Amp service, suitable for standard residential branch circuits powering lamps, electronics, and small appliances.
  • 125-Volt AC Rating: Engineered for 125-Volt AC residential power systems, matching standard U.S. household circuit voltage.
  • NEMA 5-15R Configuration: Standard NEMA 5-15R receptacle pattern accepts common household straight blade plugs for broad compatibility.
  • Residential Grade Build: Constructed to Leviton's residential grade specification for reliable everyday performance in homes.
  • Straight Blade Design: Straight blade receptacle configuration allows quick, secure insertion and removal of standard plugs.

Technical Specifications

  • Amperage: 15A
  • Voltage: 125V
  • Product Color: Light Almond

Typical Applications

  • Residential Bedrooms and Living Areas
  • Kitchens and Home Offices Needing USB Charging
  • Nightstand and Countertop USB Charging Stations
  • Renovation and Remodel Electrical Upgrades
  • New Residential Construction Wiring
  • General-Purpose Duplex Receptacle Replacement

Why Leviton?

Leviton builds this tamper-resistant, residential grade Decora® receptacle to deliver dependable 15-Amp, 125-Volt performance alongside integrated USB charging convenience. The combination of a familiar NEMA 5-15R receptacle pattern with tamper-resistant safety features and Decora® styling makes it a practical, code-conscious choice for homeowners upgrading everyday outlets to support both traditional plugs and modern USB-powered devices.

Manufacturer Resources

Technical Information

Product Specs

Product Type:
USB Charging Receptacle
Amperage Rating:
15A
Voltage Rating:
125V
Nema Rating:
5-15R
Grade:
Residential
Device Type:
Tamper-Resistant
Department:
Electrical
Product Group:
Wiring Devices
Product Subgroup:
Receptacles & Outlets
Cover Material:
Thermoplastic
Horsepower:
1/2 horse power
Torque:
12-14 pound inches
Grounding:
Grounding
Flammability Class:
Rated V-0 Per UL 94
Warranty Length:
5 years
Body Material:
Thermoplastic
Operating Temperature:
40 degrees celsius

Leviton T5632-T – Frequently Asked Questions

1) Will the Leviton T5632 USB receptacle fit a standard single-gang box with a Decora wallplate?
Yes. The T5632 is a Decora style device, so it takes a standard Decora (decorator) rectangular opening wallplate rather than a duplex-style plate. It is a single device occupying one gang position, and it coordinates with other Decora switches and receptacles on the same opening.
2) Is this Leviton USB outlet tamper-resistant for a bedroom or child-occupied dwelling unit?
It is a tamper-resistant device with an internal shutter mechanism that blocks foreign object insertion. That is the type required in dwelling unit receptacle locations, so it works where TR receptacles are called for in bedrooms and living areas.
3) What amperage and voltage is this receptacle rated for, and can I put it on my kitchen 20-amp circuit?
The T5632 is rated 15 amps at 125 volts AC with a NEMA 5-15R face. A 15A receptacle is permitted on a 20-amp branch circuit when more than one receptacle is on that circuit, which is the usual case on a residential multi-outlet kitchen circuit. If the circuit serves a single receptacle only, it needs a 20A device instead.
4) Is this a commercial or spec grade receptacle? I'm specifying for an apartment building.
It is residential grade, built to Leviton's residential specification. For multi-family common areas, corridors or anywhere with high plug cycling, spec a commercial or hospital grade device instead. Residential grade is appropriate inside the dwelling units themselves.
5) What colors does the Leviton T5632 come in, and will it match my existing devices?
Two colors: Light Almond (T5632-T) and White (T5632-W). If the other openings in the unit are ivory or almond rather than light almond, the shade will read slightly off, so match to the wallplate you already have.
6) What torque should I use on the terminal screws when wiring this Leviton receptacle?
Tighten the terminals to 12 to 14 pound inches. Use a torque screwdriver; NEC now requires terminations be made to the manufacturer's stated torque value.
7) Does this Leviton USB receptacle have a ground terminal, and what is the housing made of?
It is a grounding device, so it has a ground terminal and needs an equipment grounding conductor at the box. Body and cover are both thermoplastic, rated V-0 per UL 94 for flammability.
8) Will a USB receptacle like this fit in a shallow old work box during a remodel?
Combination USB devices are deeper than a plain duplex receptacle because the charging electronics sit behind the face. On retrofit work, check the box depth and the existing conductor slack before committing; a standard-depth duplex opening is often tight. The T5632 is a single Decora-opening device, so the wallplate is the easy part, the box volume is what to verify.
9) Can I use this receptacle to feed a small motor load like a garbage disposal or fan?
It carries a 1/2 horsepower rating, so it handles a plug-connected motor load up to that size at 125 volts. Ambient operating temperature is rated to 40 degrees Celsius.
10) Where can I get the Leviton T5632 spec sheet for a submittal?
Leviton's technical information document for the T5632 is published here: https://zensupply.com/content/pdf/leviton/technical-information-9b1b72.pdf. That is the sheet to attach for an electrical submittal along with the 15A 125V NEMA 5-15R rating.
