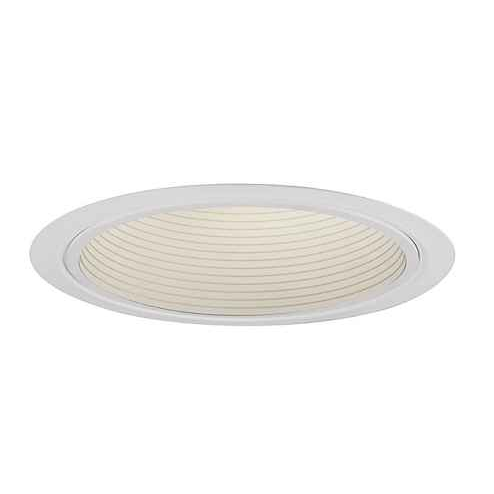

Lightolier 1176 6-3/4-Inch Round Recessed Down Light Trim

Lightolier 1176 6-3/4-Inch Round Recessed Down Light Trim

(No reviews yet) Write a Review

Model: 1176WH

In Stock (leaves warehouse same day if ordered before 3pm ET)

$40.93
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Philips Lighting 6 3/4" Basic White Baffle Reflector Trim for Recessed Downlights

Professional recessed lighting trim for versatile applications

Philips Lighting delivers professional-grade recessed lighting solutions with this 6 3/4" basic white baffle reflector trim. Designed for open downlight applications with recessed mounting, this round trim accommodates up to 150-watt incandescent lamps with ER-40 envelope configuration. The gloss white finish provides clean, professional appearance while the baffle design offers controlled light distribution for residential and commercial installations.

Professional Features & Benefits

  • 6 3/4" Aperture Size: Provides optimal light output coverage for medium-sized recessed fixtures in various room applications.
  • 150-Watt Lamp Capacity: Accommodates high-output incandescent lamps for bright, warm illumination in demanding environments.
  • Baffle Reflector Design: Controls glare and provides smooth light distribution for comfortable visual environments.
  • Gloss White Finish: Delivers clean, professional appearance that complements any interior design while maximizing light reflection.
  • Recessed Mounting: Integrates seamlessly into ceiling installations for clean, unobtrusive lighting solutions.
  • Direct Photometric Distribution: Provides focused downward light distribution for task and general lighting applications.
  • Round Product Shape: Classic circular design fits standard recessed housing configurations and architectural requirements.

Technical Specifications

  • Aperture Size Code: 6 3/4 in
  • Catalog Number: 1176WH
  • Catalog Number Description: 6 3/4" Basic Baffle BR40 Gloss White
  • Downlight Type: Open Downlight
  • Ean Upc Product: 7.84197E+11
  • Lamp Envelope Code: ER-40
  • Lamp Source Code: INC
  • Lamp Watts: 150
  • Material Nr 12nc : 9.124E+11
  • Mounting Method: Recessed
  • Net Weight Piece : 0.001 kg
  • Number Of Lamps: 1
  • Numerator Packs Per Outer Box: 6
  • Numerator Quantity Per Pack: 1
  • Order Code: 9.124E+11
  • Order Product Name: BASIC WHITE BAFFLE REFLECTOR TRIM
  • Photometric Distribution Type: Direct
  • Product Shape: Round

Professional Applications

  • Residential Living Spaces
  • Commercial Office Buildings
  • Retail Establishments
  • Hospitality Facilities
  • Educational Institutions
  • Healthcare Facilities
  • Professional Service Centers

Why Choose Philips Lighting Quality?

Philips Lighting provides reliable recessed lighting solutions with professional-grade construction and consistent performance. This baffle reflector trim delivers dependable operation with quality materials and precise manufacturing standards for long-lasting installations in demanding commercial and residential environments.

Manufacturer Resources

Spec Sheet

Product Specs

Department:
Electrical
Product Type:
Recessed Trim
Product Subgroup:
Recessed Lighting
Product Group:
Lighting

Philips Lighting 1176WH – Frequently Asked Questions

1) What aperture does the Lightolier 1176 recessed trim fit?
The Lightolier 1176 baffle reflector trim is built for a 6-3/4 inch aperture round recessed downlight housing, with recessed mounting. If your ceiling housings are the common 4 inch or 5 inch aperture type, this is the wrong trim for them.
2) What lamp does the 1176 trim take, and how many watts can it handle?
One incandescent lamp, up to 150 watts, with an ER-40 envelope. It is a single-lamp open downlight trim, so if you are running LED retrofit lamps the wattage ceiling is not the limiting factor, but the reflector geometry is cut for the ER-40 shape.
3) What finishes does the Lightolier 1176 trim come in?
Two: gloss basic white baffle (catalog number 1176WH) and black (catalog number 1176). Both are the same 6-3/4 inch round baffle trim, so property managers matching existing ceilings can order either without changing the housing.
4) Should I use a baffle trim or a smooth reflector trim in an office ceiling?
A baffle trim like the 1176 uses ridged rings inside the cone to absorb stray light and cut glare, which is what you want over desks, seating, and retail floors. A smooth specular reflector pushes more raw lumens down and is the choice when you need maximum output on a task surface and can tolerate a brighter aperture. The 1176 is the glare-control option, with a direct downward photometric distribution.
5) Is the 1176 a sealed or airtight trim for insulated ceilings?
No. The 1176 is an open downlight trim, meaning the aperture is not lensed or gasketed. For shower locations or where an air-sealed aperture is required, you need a lensed or gasketed trim instead, matched to the housing rating.
6) Does the black 1176 trim change the light output compared to the white one?
Yes, practically speaking. The gloss white version reflects light back down out of the aperture, while black absorbs it, so the black baffle reads darker in the ceiling and gives up some output in exchange for a near-invisible aperture. Specifiers usually pick black for theaters, conference rooms, and dark ceilings, white for general residential and office.
7) How does the Lightolier 1176 trim ship if I am ordering for a whole building?
It is packed one trim per pack, six packs per outer box. Order in multiples of six if you want full cases for a multi-unit or floor-wide relamp.
