EiKO LED Horizontal Lamp 12W G...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$68.34
$18.34

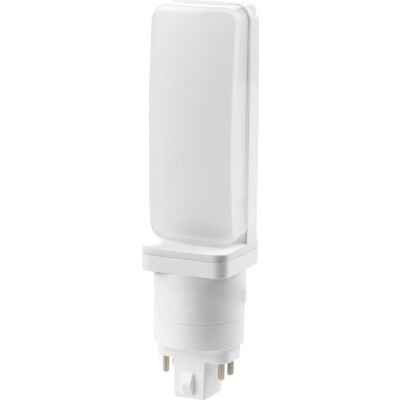

EiKO LED12W4PH/G24Q/840DM-G7 Line Voltage & Electronic Ballast Compatible 4pin 12W-1100lm Hori G24q Base 80+

EiKO LED Horizontal Lamp 12W G24q Base 4000K 1100 Lumens Ballast Compatible

(No reviews yet) Write a Review

Model: LED12W4PH/G24Q/840DM-G7
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$68.34
$18.34
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

EiKO LED Horizontal Lamp 12W G24q Base 4000K 1100 Lumens Ballast Compatible

Professional LED retrofit solution for horizontal mounting applications

The EiKO LED Horizontal Lamp delivers efficient 12W LED performance with G24q base compatibility for seamless retrofit installations. This ballast-compatible LED lamp produces 1100 lumens of 4000K neutral white light with >80 CRI, offering professional lighting quality for horizontal mounting positions. Designed for 120-277V AC operation with wide ambient temperature range capability from -20�C to 40�C.

Professional Features & Benefits

  • 12W Power Consumption: Delivers energy-efficient operation equivalent to 26W compact fluorescent while reducing energy costs
  • 1100 Lumens Output: Provides bright, consistent illumination with 91 lumens per watt efficiency for optimal performance
  • 4000K Color Temperature: Produces neutral white light ideal for commercial and professional environments
  • G24q Base Design: Ensures direct retrofit compatibility with existing 4-pin horizontal fixtures
  • Ballast Compatible: Works with both line voltage and electronic ballast systems for versatile installation options
  • 140� Beam Angle: Delivers wide light distribution for comprehensive area coverage
  • 50,000 Hour Rated Life: Provides long-lasting performance reducing maintenance requirements and replacement costs

Technical Specifications

  • Ambient Operating Temp Range: -20� C (-4� F) to 40� C (104� F)
  • Approvals: cULus, FCC, RoHS Compliant
  • Base Type: G24q
  • Beam Angle: 140�
  • Burning Position: Horizontal
  • California Title 20: Exempt
  • Cct: 4000
  • Cri: >80
  • Dimmable: FALSE
  • Dlc Premium: FALSE
  • Dlc Standard: FALSE
  • Energy Star: FALSE
  • Equivalent: 26 Watt Compact Fluorescent
  • Lumens: 1,100
  • Lumens Per Watt: 91
  • Mod In Mm: 1.37/34.80
  • Mol In Mm: 5.82/147.83
  • Product Watts: 12
  • Rated Life: 50,000
  • Voltage Rating: 120-277
  • Voltage Type: AC

Professional Applications

  • Commercial Office Buildings
  • Retail Establishments
  • Healthcare Facilities
  • Educational Institutions
  • Hospitality Venues
  • Professional Service Centers
  • Government Buildings

Why Choose EiKO Quality?

EiKO LED technology delivers reliable performance with cULus, FCC, and RoHS compliance ensuring professional-grade quality and safety standards. The 50,000-hour rated life and wide operating temperature range from -20�C to 40�C demonstrate EiKO's commitment to durable, long-lasting lighting solutions for demanding commercial applications.

Manufacturer Resources

Product Specs

Ambient Operating Temp Range:
-20° C (-4° F) to 40° C (104° F)
Approvals:
cULus, FCC, RoHS Compliant
Base Type:
G24q
Beam Angle:
140°
Burning Position:
Horizontal
California Title 20:
Exempt
Cri:
>80
Dimmable:
FALSE
Dlc Premium:
FALSE
Dlc Standard:
FALSE
Energy Star:
FALSE
Equivalent:
26 Watt Compact Fluorescent
Lumens:
1,100
Lumens Per Watt:
91
Mod In Mm:
1.37/34.80
Mol In Mm:
5.82/147.83
Rated Life:
50,000
Voltage Rating:
120-277
Voltage Type:
AC
Product Wattage:
12
Product CCT:
4000

EiKO LED12W4PH/G24Q/840DM-G7 – Frequently Asked Questions

1) Will the EiKO LED12W4PH lamp work with my existing CFL ballast, or do I have to bypass it?
Either way. The 12W G24q horizontal LED lamp runs off an existing electronic ballast and also runs on line voltage direct wire at 120-277V AC. That means you can drop it in over a working ballast now and, when the ballast eventually fails, rewire the socket to line voltage and keep the same lamp instead of buying a different one.
2) Does a G24q LED lamp fit a 2-pin GX23 or G24d socket?
No. The EiKO LED12W4PH is a 4-pin G24q lamp and only seats in a 4-pin G24q socket. Two-pin sockets (G24d and similar) carry a different pin arrangement and take a different lamp, so check the socket in the can before ordering. Most 26W 4-pin CFL downlights and wall packs are G24q, which is exactly what this replaces.
3) Can I mount the EiKO 12W G24q LED lamp base-up in a vertical downlight?
It is a horizontal burning position lamp. The optics and thermal design assume the lamp lies horizontal in the fixture, which is how most recessed CFL cans and wall packs hold a 4-pin lamp. If your socket points the lamp straight up or straight down, order the vertical version of this lamp instead of this one. EiKO builds both, and the wrong burning position will not throw light the way the fixture expects.
4) Will a 12W LED actually give me the same light as the 26W CFL I am pulling out?
Yes. The lamp puts out 1,100 lumens at 12W, rated as a 26 Watt Compact Fluorescent equivalent, at 91 lumens per watt. That is roughly half the connected load per socket. A 140 degree beam angle spreads it wider than a typical CFL twin tube, so in a downlight you get more usable spill on the floor rather than a hot spot under the can.
5) Can I put the EiKO LED12W4PH on a dimmer?
No. This lamp is non-dimmable. If the circuit still has a dimming ballast or a wall dimmer on it, either lock the dimmer at full or pull it and run the socket at full line voltage. Putting a non-dimmable LED on a live dimmer causes flicker and shortens lamp life, so sort the control before you relamp.
6) Will this LED lamp physically clear the reflector in my existing CFL can?
The lamp measures 5.82 inches (147.83 mm) maximum overall length and 1.37 inches (34.80 mm) maximum overall diameter, measured from the base. Compare that against the depth from your socket to the trim ring. LED horizontal lamps carry a driver in the base, so they run longer than the CFL twin tube they replace, and a shallow can or tight reflector is the usual place a retrofit stops.
7) What listings and approvals does the EiKO LED12W4PH carry for a spec job?
cULus, FCC, and RoHS compliant, and exempt from California Title 20. It does not carry DLC Standard, DLC Premium, or Energy Star. That matters if your utility rebate program requires a DLC listing, because this lamp will not qualify for those programs. If the rebate is driving the job, ask for a DLC qualified 4-pin lamp; if you are simply cutting load and maintenance, this one is fine.
8) Is the EiKO 12W G24q lamp rated for a parking garage or an unheated stairwell?
It operates from -20 C (-4 F) to 40 C (104 F) ambient, so a covered garage, a loading dock, or an unheated stairwell in most of the country is inside the window. CFL lamps typically start slow or dim in cold; this one does not. The 40 C ceiling is the limit to watch: a tightly enclosed, gasketed fixture in a hot mechanical room or an uninsulated attic can run past it.
9) Will 4000K match the lamps already in the rest of my building?
4000K is neutral white, the middle of the three common commercial colors. If your corridors and offices already run 4000K tubes or downlights, this drops in and matches. If the building is on 3500K or 3000K warm white, a 4000K lamp will read noticeably cooler and bluer next to it, and you will see the difference across a lobby ceiling. The lamp renders at greater than 80 CRI, which is standard for commercial office, retail, and back of house.
10) How much maintenance do I save relanping a building with these instead of CFLs?
Rated life is 50,000 hours. On a 12 hour a day schedule that is over 11 years per lamp, against the roughly 10,000 to 20,000 hours a 26W CFL typically delivers. For a facility running dozens of 4-pin downlights, the labor of pulling a lift or a ladder is usually the bigger cost than the lamp, and this cuts how often you do it. Energy drops at the same time, from 26W equivalent down to 12W actual per socket.
11) Can I use the same EiKO 12W lamp on both 120V and 277V circuits in the same building?
Yes. The lamp is rated 120-277V AC across the range, so one part number covers 120V tenant spaces and 277V house or garage circuits. For an MRO stockroom that means a single line item on the shelf instead of separate voltage SKUs, and no risk of a tech grabbing the wrong one off the cart.
12) What is the exact EiKO part number for the 12W 4000K horizontal G24q LED lamp?
LED12W4PH/G24Q/840DM-G7 is the EiKO catalog number. Reading it out: 12W, 4-pin horizontal, G24q base, 840 for 80+ CRI at 4000K, G7 generation. That is the number to quote for the 1,100 lumen 4000K horizontal version, as distinct from the vertical burning position lamp in the same family.
