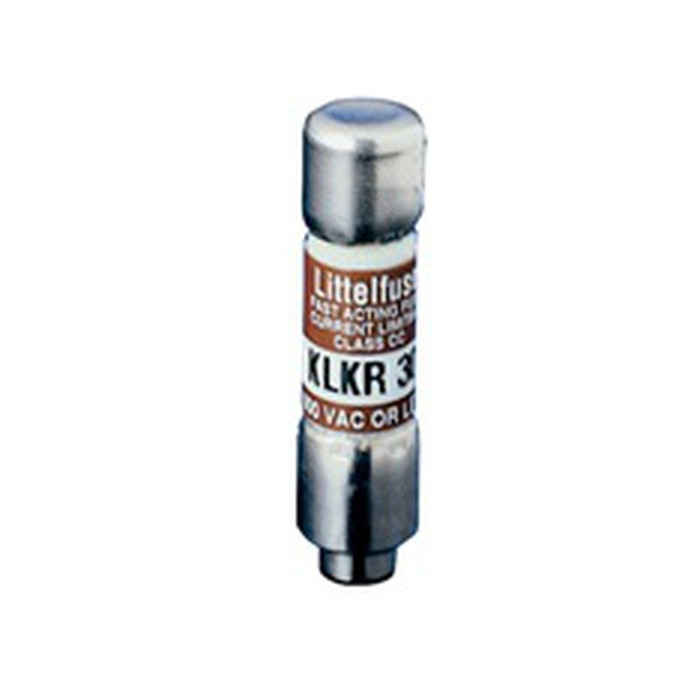

Littelfuse KLKR Series 600V Class CC Fast-Acting Fuse

Littelfuse KLKR Series 600V Class CC Fast-Acting Fuse

(No reviews yet) Write a Review

Model: KLKR.500

In Stock (leaves warehouse same day if ordered before 3pm ET)

$24.81
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Littelfuse KLKR Series 600V Class CC Fast-Acting Fuse

The Littelfuse KLKR Series is a line of Class CC fast-acting fuses rated 600VAC / 300VDC, available in ampere ratings from 0.5A to 20A to match branch circuit protection needs across OEM equipment and control panels. Each KLKR fuse combines a compact size, fast-acting overload response, and a highly current-limiting design, making the series well suited for protecting solid-state devices such as SCRs and other electronic equipment that generally require fast-acting protection. Compared to other UL Listed fuses, Class CC fuses are the most current limiting, rating for rating, giving the KLKR Series a reliable 200,000 A.I.R. interrupting rating in one of the smallest 600V fuse packages approved for branch circuit protection.

Key Features

  • Amp Rating Range: Available in ratings from 0.5A to 20A (0.5A, 2A, 2.5A, 3A, 4A, 5A, 8A, 10A, 15A, and 20A) for precise overcurrent protection across a wide range of branch circuits.
  • Voltage Rating: 600VAC / 300VDC, suitable for a wide range of industrial control and OEM applications.
  • Fast-Acting (F) Response: Opens quickly under overload to protect sensitive solid-state devices such as SCRs and other electronic equipment.
  • Extremely Current Limiting: Reduces damage caused by the heating and magnetic effects of short-circuit currents, stopping damaging short-circuit faults faster than any mechanical protective device.
  • Most Current Limiting in Class: Compared to other UL Listed fuses, Class CC fuses are the most current limiting, rating for rating.
  • 200,000 A.I.R.: Reliable interruption of all overcurrents up to 200,000 amperes across the entire KLKR Series.
  • Class CC Package Size: One of the smallest 600V, 200,000 A.I.R. fuse packages approved for branch circuit protection, providing superior protection in a fraction of the space required by other fuse classes.
  • Space-Saving Design: Replacing 600V, three-pole, 30A Class R fuse blocks with Littelfuse Class CC fuse blocks reduces panel-mounting space by approximately 70%.

Certifications & Compliance

  • UL Listed
  • CSA Certified
  • CE Marked
  • China RoHS Compliant

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Typical Applications

  • OEM Equipment and Control Panels
  • General-Purpose Branch Circuit Protection
  • Solid-State Device Protection (SCRs and Other Electronic Equipment)
  • Panels Requiring Reduced Mounting Space vs. Class R Fuse Blocks
  • Industrial and Commercial Electrical Systems Requiring 200,000 A.I.R. Protection

Why Littelfuse?

The Littelfuse KLKR Series combines extremely current-limiting performance with a compact Class CC footprint, letting panels replace larger 600V, three-pole, 30A Class R fuse blocks while reducing panel-mounting space by approximately 70%. Backed by a 200,000 A.I.R. interrupting rating, a fast-acting design, and ampere ratings from 0.5A to 20A, the KLKR Series delivers reliable, code-compliant overcurrent protection for OEM equipment and industrial control panels, with UL, CSA, CE, and China RoHS documentation supporting its use in professional electrical installations.

Product Specs

Product Type:
Fast-Acting Fuse
Series:
KLKR
Voltage Rating:
600VAC / 300VDC
Amperage Rating:
0.5A - 20A
Listing:
UL Listed
Standards:
CSA Certified
Department:
Electrical
Product Group:
Circuit Protection
Product Subgroup:
Fuses

Littelfuse KLKR.500 – Frequently Asked Questions

1) Will a Littelfuse KLKR fuse fit a standard Class CC fuse holder?
Yes. The KLKR Series is built to the Class CC package, so it drops into any Class CC fuse block or holder with the rejection feature. That rejection design is deliberate, it keeps a non-current-limiting fuse out of a circuit specified for Class CC protection. All ratings from 0.5A through 20A share the same 600V Class CC body.
2) Can I use the KLKR fuse on a 300VDC circuit, or is it AC only?
Both. KLKR fuses are rated 600VAC and 300VDC. You can apply them on any AC system at or below 600V and any DC system at or below 300V, but do not put them on a DC bus above 300V, the DC rating is the limit that governs there.
3) Is a fast-acting Class CC fuse like the KLKR right for a motor circuit, or do I need time-delay?
Fast-acting is the wrong choice ahead of a motor. The KLKR opens quickly under overload, which is what you want protecting SCRs and other solid-state electronics, but a motor's inrush will nuisance-open it. For motor branch circuits, specify a time-delay Class CC fuse instead and keep the KLKR for control-panel electronics and general branch circuits that do not see heavy starting current.
4) What interrupting rating do KLKR fuses carry for a high available fault current panel?
200,000 A.I.R. across the whole KLKR Series, so the fuse will clear any overcurrent up to 200,000 amperes. That covers service-entrance and industrial panels with high available fault current, and because Class CC is the most current limiting of the UL Listed classes rating for rating, it also cuts the let-through energy your downstream equipment sees.
5) Can I replace 600V 30A Class R fuse blocks with Class CC to free up panel space?
That is one of the main reasons to go Class CC. Swapping 600V, three-pole, 30A Class R fuse blocks for Littelfuse Class CC blocks cuts panel-mounting space by roughly 70 percent, while the KLKR still gives you 600V branch circuit protection at 200,000 A.I.R. The limit is amperage, KLKR tops out at 20A, so a circuit genuinely needing 25A or 30A has to stay on the larger class.
6) Which amp ratings does the Littelfuse KLKR come in?
Ten ratings: 0.5A, 2A, 2.5A, 3A, 4A, 5A, 8A, 10A, 15A and 20A. Part numbers follow the rating, so 0.5A is KLKR.500, 2.5A is KLKR02.5, and 20A is KLKR020. There is no 1A or 1.5A in the range, if you need sub-2A protection the 0.5A is the only option below 2A.
7) Are Littelfuse KLKR fuses approved for use in Canada?
KLKR fuses are UL Listed and CSA Certified, and they also carry the CE mark and comply with China RoHS. The CSA certification is what matters for Canadian installations, and the UL Listing is what lets the fuse be used for branch circuit protection under the NEC.
8) My drawing calls for a Class CC fuse to protect an SCR drive. Is the KLKR the right type?
Yes, that is the application the series targets. Fast-acting response plus extremely current-limiting construction means the fuse opens before short-circuit heating and magnetic stress damages the semiconductor, which is what solid-state devices such as SCRs need. Match the amp rating to the device, anything from 0.5A up to 20A is available.
