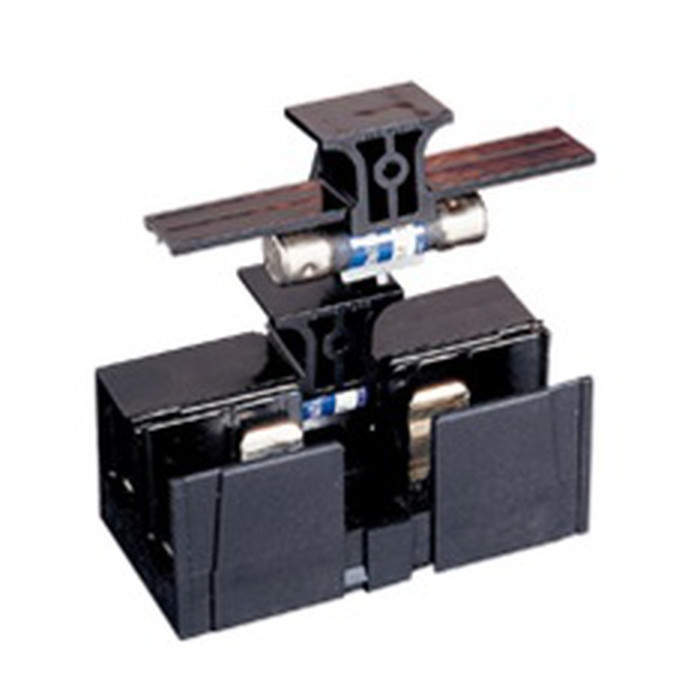

Littelfuse SPL001 Series Class CC Fuse Cover Puller, 600V

Littelfuse SPL001 Series Class CC Fuse Cover Puller, 600V

(No reviews yet) Write a Review

Model: SPL001

In Stock (leaves warehouse same day if ordered before 3pm ET)

$12.03
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Littelfuse SPL001 Series Class CC Fuse Cover Puller, 600V

The Littelfuse SPL001 Series Fuse Cover Puller is a purpose-built safety accessory for Class CC L60030C series and L60030M series fuse blocks, engineered to permit safe, easy removal of fuses without exposing live components. Rated for use with all 600 volt Class CC and Midget 1/10 — 30A fuses, this cover puller works directly with existing fuse blocks — no special hinged fuse blocks are required. A built-in label makes fuse identification fast and accurate, and the cover meets "Dead Front" requirements for use in control panels, helping electricians maintain code-compliant, touch-safe installations.

Key Features

  • Fuse Block Compatibility: Designed for use with Class CC L60030C series and L60030M series fuse blocks.
  • Voltage & Amperage Rating: Rated for all 600 volt Class CC and Midget 1/10 — 30A fuses.
  • Safe, Easy Removal: Permits safe, easy removal of fuses from the block without direct contact with live parts.
  • Fuse Identification Label: Integrated label provided for quick, accurate fuse identification.
  • No Special Hardware Required: Works with existing fuse blocks — no special hinged fuse blocks needed.
  • Dead Front Compliance: Meets "Dead Front" requirements for use in control panels.
  • Gangable Design: Easily gangable with 1/8" diameter wire for multi-pole configurations.
  • 2-Pole Option Available: For a 2-pole cover puller, order part number DSPL001.

Technical Specifications

  • Maximum Amps: 30
  • Voltage Rating: 600V
  • Fuse Compatibility: Class CC and Midget, 1/10 — 30A
  • Series: SPL001

Typical Applications

  • Control Panel Fuse Block Assemblies
  • Class CC Fuse Block Cover & Removal Systems
  • Industrial and Commercial Electrical Panels
  • Touch-Safe, Dead-Front Panel Design
  • Fuse Maintenance and Replacement in Existing Fuse Blocks

Why Littelfuse?

Littelfuse designs the SPL001 Series Fuse Cover Puller to work seamlessly with existing Class CC L60030C and L60030M series fuse blocks, eliminating the need for specialized hinged hardware while supporting Dead Front compliance in control panel applications. With an integrated fuse ID label and gangable design for 1/8" diameter wire, the SPL001 Series delivers a reliable, code-conscious solution for safe fuse handling in 600 volt Class CC and Midget fuse installations.

Product Specs

Product Type:
Fuse Cover Puller
Voltage Rating:
600V
Amperage Rating:
30A
Series:
SPL001
Department:
Electrical
Product Group:
Wiring Devices

Littelfuse SPL001 – Frequently Asked Questions

1) Which fuse blocks does the Littelfuse SPL001 cover puller fit?
The SPL001 cover puller is built for Littelfuse Class CC L60030C series and L60030M series fuse blocks. It mounts to those blocks as they are, so you don't need to swap in special hinged fuse blocks to get a covered, pullable assembly.
2) What fuses can I pull with the SPL001 cover puller?
It covers all 600 volt Class CC and Midget fuses from 1/10 amp up to 30 amps. If your panel runs larger than 30A or uses Class J, R, or T fuses, this is the wrong accessory.
3) Does this meet dead front requirements for a control panel?
Yes. The SPL001 cover meets "Dead Front" requirements for control panel use, so the fuse and live parts stay shielded from touch while the cover is in place, and the fuse comes out with the cover instead of by hand.
4) I need a 2-pole fuse cover puller, not a single. What do I order?
The SPL001 is the single-pole version. For a 2-pole cover puller, order part number DSPL001.
5) Do I have to replace my existing fuse blocks to add these covers?
No. The SPL001 works with the existing Class CC L60030C and L60030M blocks already in the panel, which makes it a retrofit item for adding touch-safe covers to a panel that was built without them.
6) Can I gang several SPL001 cover pullers together for a 3-phase circuit?
Yes. The SPL001 is gangable using 1/8 inch diameter wire, so you can tie multiple single-pole covers into a multi-pole assembly on adjacent blocks. If you want a factory 2-pole unit instead, that's the DSPL001.
7) Is the SPL001 a fuse puller tool or a panel-mounted part?
It's a panel-mounted cover, not a loose hand tool. The cover attaches to the Class CC fuse block and carries the fuse out with it when opened, which is what gives you the dead-front barrier the rest of the time. A handheld fuse puller does not give you that cover.
8) How do maintenance techs know which fuse is in the block?
Each SPL001 cover has an integrated identification label, so you can mark the fuse class and amp rating on the cover itself. For an MRO or facilities crew standardizing a panel, that's how the right replacement gets pulled off the shelf the first time.
