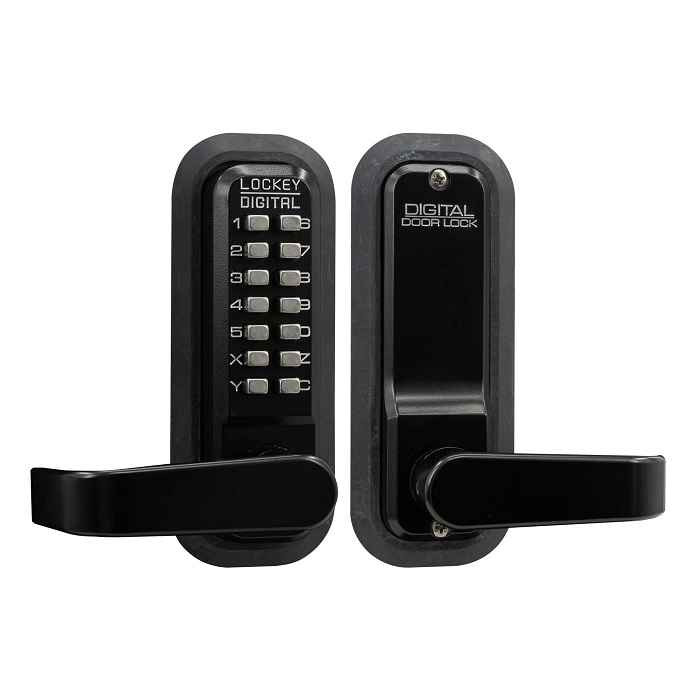

Lockey 2835 Mechanical Keyless Lever Lock: Passage Function, ADA Compliant
The Lockey 2835 is a 100% mechanical pushbutton lever lock for commercial and multi-family doors that need battery-free, code-controlled access. It installs on standard prep doors, runs without electricity or Wi-Fi, and comes in nine finishes. Passage mode holds the lock open during business hours with no code required, then returns to secure mode on demand.
Key Features
- 100% Mechanical, No Batteries, No Power: Programmable pushbutton combination; no wiring, no charging, no maintenance cycle.
- ADA-Compliant Levers: Full-size levers meet ADA accessibility requirements for commercial door hardware.
- Passage Function: Toggle to free-passage mode for open-access periods; returns to code-required operation on demand.
- Adjustable Backset: Field-adjustable to fit standard door prep - no special ordering required.
- Door Thickness: Accommodates 1-3/16" to 2" doors.
- Field-Reversible Handing: Configures for left- or right-hand swing at installation - no separate SKU needed.
- Construction: Zinc-plated steel body.
- Accessory Compatible: Works with Lockey Key Override System, GB2500 Gate Box, and Extension Kit-2835.
Technical Specifications
- Operation: Mechanical pushbutton (battery-free)
- Handle Type: Lever (ADA compliant)
- Backset: Adjustable
- Door Thickness Range: 1-3/16" to 2"
- Body Dimensions: 5-5/8" L x 1-5/8" W
- Material: Zinc-plated steel
- Handing: Field-reversible (left or right)
- Finish Options: Antique Brass, Bright Brass, Bright Chrome, Jet Black, Marine Grade, Oil-Rubbed Bronze, Satin Chrome, Satin Nickel, White
Typical Applications
- Commercial office and suite entry doors
- Multi-family and apartment common areas
- Educational and healthcare facility interior doors
- Retail and light industrial access points
- Government and municipal buildings
- Coastal or high-humidity environments (Marine Grade finish)
Lockey mechanical locks give facilities managers and contractors keyless access without the batteries, wiring, or network of electronic systems.
Manufacturer Resources
Product Specs
- Product Group:
- Mechanical Locks
- Product Subgroup:
- Bored Locksets
- Product Type:
- Push Button Lock
- Subcategory:
- Mechanical Push Buttons
- Commercial/Residential:
- Commercial
- Handle Type:
- Lever
- Backset (Distance):
- Adjustable
- Door Thickness Range:
- 1 3/16" to 2"
- Product Dimension:
- 5 5/8" L x 1 5/8" W x 2 1/4" D
- Product Category:
- Mechanical Locks
- Product Substrate:
- Zinc-Plated Steel
- Department:
- Door Hardware
