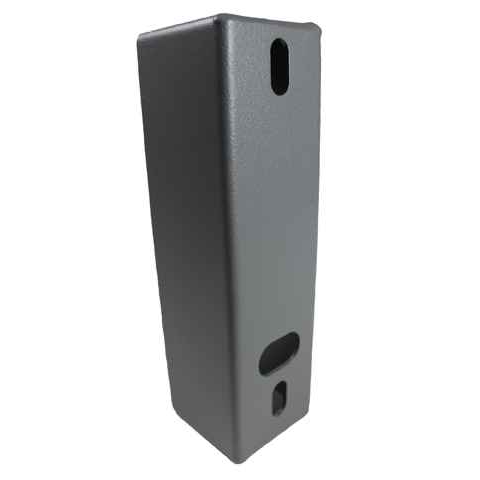

Lockey PSGB200 Panic Trim Gate Box with Powder Coated Finish

Professional Gate Hardware Protection Solution

The Lockey PSGB200 Panic Trim Gate Box provides secure housing for panic trim hardware in gate applications. This compact 7" x 2" x 2" gate box features durable powder coated construction and is specifically designed for compatibility with 285P and 310P panic trim devices. Available in black or silver finish options to complement various gate installations.

Professional Features & Benefits

  • Compact Dimensions: 7" length x 2" width x 2" depth provides space-efficient installation for gate applications.
  • Panic Trim Compatibility: Specifically designed to work with 285P and 310P panic trim devices for versatile gate security solutions.
  • Durable Powder Coated Finish: Weather-resistant coating provides long-lasting protection against outdoor elements and daily use.
  • Dual Finish Options: Available in black or silver finishes to match existing gate hardware and aesthetic requirements.
  • Commercial-Grade Construction: Engineered for demanding commercial gate applications where reliable hardware protection is essential.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • MAP Policy: Yes
  • Product Category: Gate Hardware
  • Product Dimension: 7" L x 2" W x 2" D
  • Product Finish: Powder Coated
  • Product Group: Door Trim and Accessories
  • Product Model: PSGB200
  • Product Subgroup: Gate Boxes
  • Product Type: Gate Boxes
  • Subcategory: Gate Box

Professional Applications

  • Commercial Property Perimeter Security
  • Industrial Facility Access Points
  • Multi-Unit Residential Complexes
  • Parking Facility Entry Systems
  • Warehouse and Distribution Centers
  • Emergency Exit Gate Installations
  • Controlled Access Perimeter Gates

Why Choose Lockey Quality?

Lockey gate hardware products deliver professional-grade reliability with powder coated construction designed for demanding outdoor applications. The PSGB200 gate box provides essential protection for panic trim components while maintaining compatibility with established Lockey panic trim systems. Engineered for commercial gate installations where dependable hardware protection and weather resistance are essential.

Product Specs

Product Group:
Door Trim and Accessories
Product Subgroup:
Gate Boxes
Product Type:
Gate Boxes
Subcategory:
Gate Box
Commercial/Residential:
Commercial
MAP Policy:
Yes
Product Model:
PSGB200
Product Finish:
Powder Coated
Product Dimension:
7" L x 2" W x 2" D
Product Category:
Gate Hardware
Department:
Door Hardware

Lockey PSGB200xS – Frequently Asked Questions

1) What is the Lockey PSGB200 gate box used for?
The PSGB200 is a housing box that mounts on a gate to hold panic trim hardware. It is not the panic trim itself and not a lock. You mount the box on the gate frame, and the trim hardware lives inside it, protected from the weather by the powder coated shell. Lockey sizes it at 7 inches long by 2 inches wide by 2 inches deep.
2) Does the Lockey PSGB200 gate box work with the 285P and 310P panic trim?
Yes, those are the two devices it is built for. The PSGB200 is specified for Lockey 285P and 310P panic trim, so if you are running either of those on a gate, this is the matching box. Pair it with anything else and you are on your own for hole pattern.
3) Will a 7 inch gate box fit on my gate frame stile?
The box needs 7 inches of run along the stile and 2 inches of width, and it stands 2 inches off the face. On a typical tube-frame ornamental gate with a 2 inch square upright, the box is flush to the stile width with nothing to spare, so measure your upright before you order. If your frame member is narrower than 2 inches, the box will overhang the edges.
4) Do I need a weldable gate box instead of the Lockey PSGB200?
Depends on how the box attaches and what hardware goes in it. The PSGB200 is the finished, powder coated box matched to Lockey 285P and 310P panic trim. If you are fabricating a gate and want a blank shell you weld into the frame and drill yourself for whatever lock you are using, look at the Keedex weldable gate boxes instead, such as the K-BX515175 or K-BX711150 blank no-hole boxes, or the K-BX4 weldable blank box.
5) What is a direct substitute for the Lockey PSGB200 gate box if the panic trim mounts to a metal gate frame that will be welded?
The Lockey PSGB200 is a 7 inch long by 2 inch wide by 2 inch deep gate box finished in powder coat, made to house 285P and 310P panic trim. When the box is going to be welded into a metal gate frame rather than fastened, the Keedex K-BX711150 weldable gate box covers that approach; it ships blank with no holes, so the mounting and spindle openings are cut to match whatever trim is being installed. The PSGB200 arrives configured for the Lockey panic trim it is built around, while the Keedex box is prepped on site.
6) Is a Keedex weldable blank box the same thing as a Lockey panic trim gate box?
They are not interchangeable out of the carton. The Keedex K-BX4 is a weldable blank box, and the K-BX515175 and K-BX711150 are weldable gate boxes supplied blank with no holes, which means every opening is laid out and cut by the installer. The Lockey PSGB200 is a gate box built to accept 285P and 310P panic trim and comes powder coated in black or silver. A crew that wants to bolt up panic trim without fabricating the box is looking at the PSGB200; a crew with a welder and a template can start from the Keedex blanks.
7) Which gate box should be used when the exit gate needs a request-to-exit or monitoring switch behind the trim?
The Keedex K-BX95552 is a weldable box supplied with a switch on the back, which puts the switch inside the same enclosure as the hardware. The Lockey PSGB200 is a 7 by 2 by 2 inch powder coated box for 285P and 310P panic trim and carries no switch of its own. For a controlled access gate where the exit needs to signal an access control panel, the switched Keedex box addresses that in one part.
8) I need a gate box with a request-to-exit or push button switch built in. Is the Lockey PSGB200 it?
No. The PSGB200 is a plain enclosure for panic trim, with no switch in it. For a box that comes with a switch on the back, the Keedex K-BX95552 weldable box is the one to look at.
9) Is a gate box required for panic hardware on a gate, or can I mount the trim straight to the frame?
On most metal gates there is nothing solid behind the frame member to carry the trim and no way to conceal the mounting, which is why the gate box exists. It gives the 285P or 310P trim a rigid mounting body and a closed back so the working parts are not exposed on an outdoor opening. On a solid-panel gate with enough material to take the fasteners, the box is not strictly needed.
10) For a gate frame too narrow for a 2 inch deep box, what are the alternatives to the PSGB200?
The PSGB200 is a fixed 7 inch by 2 inch by 2 inch enclosure, so the gate stile has to accept that footprint. Keedex offers weldable gate boxes in more than one size in the same family, including the K-BX515175 and the K-BX711150, both blank with no holes so the hardware cutouts are made to suit. On a narrow tube frame, sizing the box to the stile first and cutting the openings afterward is the usual route.
11) Standardizing gate boxes across a property with mixed hardware - PSGB200 or Keedex blanks?
Where the gates all carry Lockey 285P or 310P panic trim, the PSGB200 keeps one part number across the fleet and comes powder coated in black or silver to match existing gate hardware. Where the gates carry a mix of manufacturers, the Keedex weldable blanks, the K-BX4 blank box and the K-BX515175 and K-BX711150 gate boxes with no holes, let one stocked box serve several trim patterns because the openings are cut at install.
