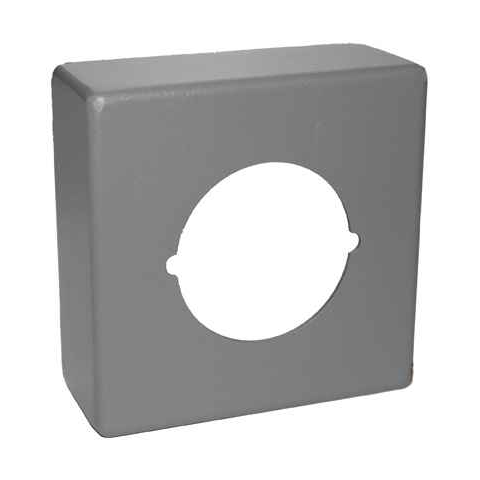

Lockey PSGBLH Gate Box for Panic Trim Levers with 4" x 4" x 1 5/8" Dimensions

Lockey PSGBLH Gate Box for Panic Trim Levers with 4" x 4" x 1 5/8" Dimensions

(No reviews yet) Write a Review

Model: PSGBLHxS
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$75.44
$57.18
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Lockey PSGBLH Gate Box for Panic Trim Levers with 4" x 4" x 1 5/8" Dimensions

Professional Gate Hardware Protection Solution

The Lockey PSGBLH Gate Box provides secure protection for panic trim levers in gate applications. This compact 4" x 4" x 1 5/8" powder-coated enclosure is specifically designed for compatibility with PB-LHED, PB-LHSR, and PB-LHPS panic trim systems. Available in black or silver finish options to complement various gate installations and architectural requirements.

Professional Features & Benefits

  • Compact Dimensions: 4" length x 4" width x 1 5/8" depth provides space-efficient protection without compromising gate operation.
  • Universal Panic Trim Compatibility: Works with PB-LHED, PB-LHSR, and PB-LHPS panic trim levers for versatile installation options.
  • Durable Powder-Coated Finish: Weather-resistant coating provides long-lasting protection against outdoor elements and corrosion.
  • Dual Finish Options: Available in black or silver finishes to match existing gate hardware and architectural aesthetics.
  • Commercial-Grade Construction: Engineered for demanding commercial gate applications where reliable panic hardware protection is essential.
  • Secure Enclosure Design: Protects panic trim mechanisms from tampering, weather exposure, and accidental damage.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Handle Type: Lever
  • Product Category: Gate Hardware
  • Product Depth: 1 5/8?
  • Product Group: Door Trim and Accessories
  • Product Length: 4?
  • Product Model: PSGBLH
  • Product Subgroup: Gate Boxes
  • Product Type: Gate Boxes
  • Product Width: 4"
  • Subcategory: Gate Box

Professional Applications

  • Commercial Property Perimeter Security
  • Industrial Facility Access Points
  • Multi-Unit Residential Complexes
  • Parking Facility Entry Systems
  • Warehouse and Distribution Centers
  • Emergency Exit Gate Systems
  • Controlled Access Pedestrian Gates

Why Choose Lockey Quality?

Lockey gate box products deliver professional-grade reliability with powder-coated construction designed for outdoor commercial applications. The PSGBLH model provides essential protection for panic trim mechanisms while maintaining compatibility with multiple panic lever systems. Engineered for demanding gate applications where dependable hardware protection and smooth operation are essential.

Product Specs

Product Group:
Door Trim and Accessories
Product Subgroup:
Gate Boxes
Product Type:
Gate Boxes
Subcategory:
Gate Box
Commercial/Residential:
Commercial
Handle Type:
Lever
Product Model:
PSGBLH
Product Length:
4?
Product Category:
Gate Hardware
Product Width:
4"
Department:
Door Hardware
Product Depth:
1 5/8?

Lockey PSGBLHxS – Frequently Asked Questions

1) Which Lockey panic trim levers does the PSGBLH gate box fit?
The PSGBLH gate box is built for Lockey's PB-LHED, PB-LHSR and PB-LHPS panic trim levers. If you are mounting one of those three levers on a gate, this is the enclosure that goes behind it. It is not a universal box for other manufacturers' trim.
2) What size is the Lockey PSGBLH gate box, and will it fit on a narrow gate frame?
Outside dimensions are 4 inches long by 4 inches wide with a 1-5/8 inch depth. The 4 inch face is the number that matters on a gate: a tube frame narrower than 4 inches will leave the box overhanging the stile, so measure your frame face before you commit. The 1-5/8 inch depth is how far it stands off the frame.
3) Can I use a weldable blank box instead of the Lockey PSGBLH?
Only if you are prepping your own hardware. The Keedex weldable gate boxes, K-BX4, K-BX515175 and K-BX711150, ship blank with no holes, so you drill and cut them to whatever lock or trim you are mounting and weld them to the frame. The Lockey PSGBLH is the ready-made match for PB-LHED, PB-LHSR and PB-LHPS panic trim levers. Blank boxes give you freedom on odd hardware; the PSGBLH saves you the layout work on Lockey panic trim.
4) Is there a gate box option that includes a switch for access control tie-in?
The Lockey PSGBLH is an enclosure for panic trim levers only and does not carry any electrical provision. If the gate needs a signal back to a controller, the Keedex K-BX95552 is a weldable box with a switch on the back, which gives you a box and switch in one weldment rather than adding a separate device to the frame.
5) What is the difference between the Lockey PSGBLH gate box and a Keedex weldable blank box?
The Lockey PSGBLH is a pre-configured gate box built specifically for panic trim levers, measuring 4 inches long by 4 inches wide by 1 5/8 inches deep, powder coated and offered in black or silver. The Keedex K-BX4 is a weldable blank box, meaning it ships without hardware cutouts so the installer machines the prep to suit whatever lock or trim goes in it. Choose the PSGBLH when the opening takes Lockey panic trim and you want the prep already done; choose the weldable blank when the trim is something else and you need to cut your own prep.
6) I need a gate box with no holes so I can lay out my own lock prep. What should I use instead of the Lockey PSGBLH?
The Lockey PSGBLH comes prepped for panic trim levers, so it is the wrong starting point for custom layout. Keedex offers blank weldable gate boxes with no holes: the K-BX515175 and the K-BX711150 are both described as blank weldable gate boxes with no holes, letting the fabricator drill and cut the prep on site. Both weld into the gate frame the same way, so the choice comes down to which box footprint suits the stile you are working with.
7) Is this gate box OK to leave outdoors on an exterior gate?
Yes. The PSGBLH carries a powder-coated finish for weather and corrosion resistance, and Lockey lists it as a commercial-grade part for outdoor gate use, including perimeter security gates, parking entries and pedestrian access gates.
8) Why do I need a gate box at all for panic trim on a gate?
A gate frame is usually hollow tube with no door prep, so there is nothing behind the lever to mount to or protect the works. The PSGBLH gives the panic trim lever a 4 x 4 x 1-5/8 inch enclosure that shields the mechanism from weather, tampering and knocks while keeping the lever operating normally.
9) For a commercial pedestrian gate running Lockey panic trim, is a Keedex weldable box a direct substitute for the PSGBLH?
Not directly. The PSGBLH is dimensioned at 4 x 4 x 1 5/8 inches and made to house Lockey lever-style panic trim on commercial gates. The Keedex boxes in the same family - K-BX4, K-BX515175 and K-BX711150 - are weldable blanks supplied without holes, so using one under Lockey panic trim means the installer transfers the trim template and cuts the prep in the field. It is a workable path for a fabrication shop, but it is not a drop-in replacement.
10) Which gate box holds a finish that matches existing gate hardware without painting?
The Lockey PSGBLH is powder coated from the factory and is stocked in black and silver, so it can be matched to existing gate hardware without field finishing. The Keedex weldable boxes such as the K-BX4 and K-BX515175 are weldable blanks intended to be welded into the frame and finished as part of the gate, which normally means priming and painting after installation.
11) What finishes does the Lockey PSGBLH gate box come in?
Two: black and silver. Pick whichever matches the panic trim and the rest of the gate hardware, since the box sits directly under the lever and is visible from the pull side.
12) Does the PSGBLH gate box work with knob trim or only levers?
Levers only. The box is cut for Lockey's panic trim lever handles, the PB-LHED, PB-LHSR and PB-LHPS. There is no knob-trim version of this box.
