TB200/400/600 Hydraulic Gate Closer, for gates up to 250 lbs.

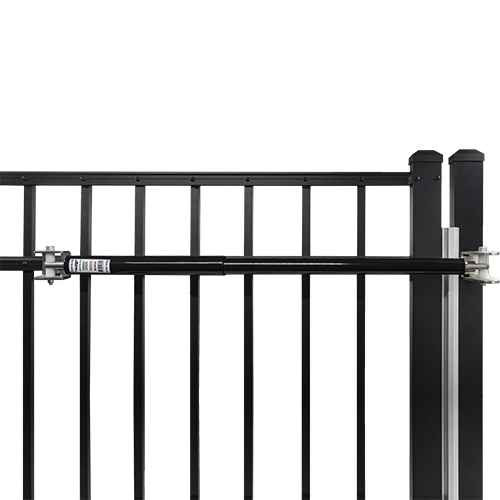

The Lockey TB200, TB400, and TB600 gate closers are premium-grade hydraulic gate closer solutions designed for a wide range of gate weights—from 50 lbs to 250 lbs. Whether you need a TB200 hydraulic gate closer for lighter gates or a Lockey TB600 hydraulic gate closer for heavier-duty use, these models offer reliable, controlled gate closure using a combination of hydraulic and nitrogen gas technologies.
Each TB200 gate closer, TB400 gate closer, and TB600 gate closer unit offers:
-
Smooth, automatic closing of gates:
-
TB200: for gates 50–125 lbs
-
TB400: for gates 75–175 lbs
-
TB600: for gates 150–250 lbs
-
-
Adjustable closing speed with hydraulic/nitrogen gas control
-
Universal mounting options: install at top, middle, or bottom of the gate
-
Compatible with both left- and right-hand swing gates
-
Push-to-close design; mounts on the opening side of the gate
-
Includes mounting brackets and fitting bar for easy installation
-
Not for gates under 30 inches in width
To maintain your warranty and prevent over-swinging, installation of a gate stop is required. These Lockey hydraulic gate closers are ideal for residential, commercial, and industrial gate applications requiring dependable self-closing performance.
Dimensions & Specifications
- Gate Weight:
- TB200- 50-125 lbs.
- TB400- 75-175 lbs.
- YB600- 150-250 lbs.
- Gate Width:
- TB200- 30-52″
- TB400- 40-64″
- TB600- 44-72″
- Max. Opening Angle: 100 degrees
- Min. Operating Temperature: 15 degrees Fahrenheit*
- Max. Operating Temperature: 122 degrees Fahrenheit*
- Type of Gate Material: Vinyl, Steel, Wood, Chain Link**
- Closing/Latch Method: Hydraulic/Nitrogen Gas
- Material: Steel or Stainless Steel
- Color: TB200: Black, TB200SS: Silver
- Finish: TB200: Painted, TB200SS: Stainless Steel
- Hinge Arrangements: In-line or Offset
- Opening Pressure:
- TB200- Approx. 3-7 lbs.
- TB400- Approx. 6-12 lbs.
- TB600- Approx. 8-18 lbs.
Compatible With:
- TB-LINX
- Gate Stop
Downloads
Manufacturer Resources
Product Specs
- Product Group:
- Door Trim and Accessories
- Product Subgroup:
- Gate Latches and Locks
- Product Type:
- Gate Closers
- Subcategory:
- Gate Closer
- Commercial/Residential:
- Commercial
- Max. Gate Weight:
- 50-125 lbs.
- Max. Gate Width:
- 30-52"
- MAP Policy:
- Yes
- Product Model:
- TB200-400-600
- Door Opening Size:
- 100 degrees
- Product Category:
- Gate Hardware
- Product Substrate:
- Steel
Lockey LOC-TB200-400-600 – Frequently Asked Questions
1) What is the Lockey TB hydraulic gate closer designed for?
The Lockey TB is a heavy-duty hydraulic gate closer designed for residential and light commercial gates. It provides controlled closing action and adjustable closing speed for swing gates up to specific weight limits.
2) What gate sizes and weights is this closer compatible with?
Verify gate weight and width against manufacturer specifications before installation. Most hydraulic closers have specific weight and width limits. Check the product documentation for exact compatibility requirements.
3) Can this closer be used for both right-hand and left-hand gates?
Most Lockey hydraulic closers are reversible for different hand configurations. Check the installation template and mounting instructions to confirm proper orientation for your gate swing direction.
4) What finish options are available for outdoor use?
Hydraulic gate closers typically come in weather-resistant finishes suitable for outdoor applications. Confirm the specific finish and corrosion resistance rating for your installation environment.
5) What closing force and speed adjustments are available?
The TB model features adjustable closing speed and latching speed controls. These allow you to customize the closing action for proper gate operation and safety requirements.
6) Are there specific building code requirements for gate closers?
Pool gates and other safety applications may require automatic closing mechanisms that meet specific code standards. Verify local code requirements and closer specifications before installation.
7) What mounting hardware and brackets are included?
Check the product package contents for included mounting brackets and hardware. Some installations may require additional brackets or fasteners depending on gate construction and mounting surface.
8) What are the basic installation requirements?
Installation requires secure mounting points on both gate and post or wall. Follow the manufacturer template for proper positioning. Gate must swing freely and be properly aligned before closer installation.
9) How do you maintain and adjust a hydraulic gate closer?
Regular maintenance includes checking mounting hardware tightness and adjusting speed controls as needed. Clean debris from closer body and pivot points. Follow manufacturer guidelines for hydraulic fluid service intervals.
10) Are there other Lockey closer models for different applications?
Lockey offers various gate closer models for different weight capacities and applications. Browse our Lockey products section for alternative models and accessories.
11) What environmental conditions can this closer handle?
Hydraulic closers are designed for outdoor use but performance may vary with extreme temperatures. Very cold conditions can affect hydraulic fluid viscosity and closing speed. Check specifications for operating temperature range.
12) What are the key measurements needed before ordering?
Measure gate weight, width, and available mounting space on gate and post. Verify gate swing direction and clearance requirements. Use manufacturer template to confirm proper fit before installation.
