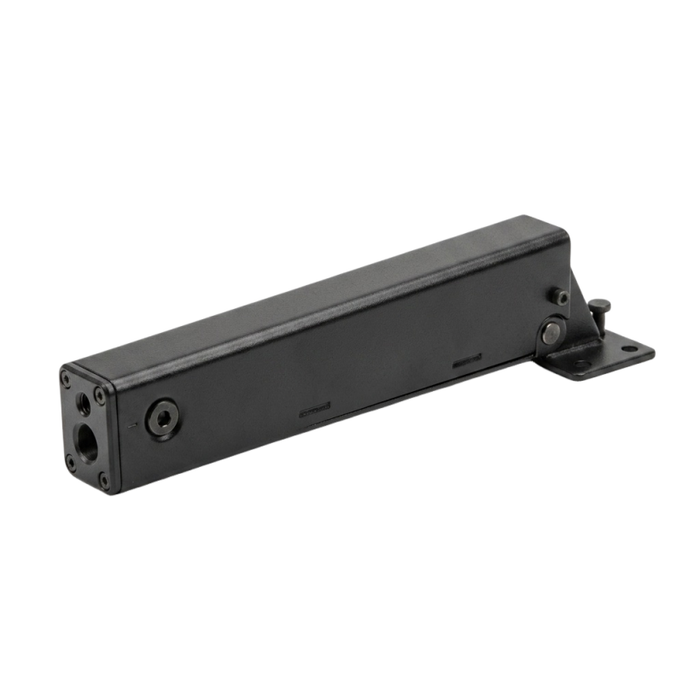

Lockey TB175 Garden Gate Closer in Black finish, 110 lb capacity with adjustable speed control — angled product view

Lockey TB175 Garden Gate Closer

(No reviews yet) Write a Review

Model: TB175B
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$88.82
$64.45
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Lockey TB175 Garden Gate Closer: 110 lb Capacity, Adjustable Speed Control

Flush Mount Gate Closer for Commercial and Residential Applications

The Lockey TB175 Garden Gate Closer delivers reliable automatic closing for gates up to 110 lbs with smooth, controlled operation. This flush mount closer features independently adjustable closing and latching speeds plus a built-in hold open feature. At 12½" L × 2½" W × 2⅜" D, the TB175 accommodates gates up to 54" wide, opens to 90 degrees, and works with most in-line hinge arrangements in metal, vinyl, or wood gate construction.

Key Features

  • 110 lb Gate Capacity: Handles substantial gate installations gently and reliably.
  • 54" Max Gate Width: Compatible with metal, vinyl, or wood gate construction.
  • Dual Adjustable Speed Control: Independent closing speed and latching speed adjustment for site-specific tuning.
  • Flexible Mounting: Installs top, middle, or bottom on right- or left-hand gates; mounts on the opening (push) side.
  • Hold Open Feature: Temporarily holds the gate open for extended access without propping.
  • Flush Mount / Low Profile: Clean appearance; pushes gate closed from the opening side.
  • Stainless Steel Construction: Powder coated finish in Black or White for outdoor weather resistance.
  • GS-90 Gate Stop Compatible: Use with the optional GS-90 Gate Stop to restrict opening angle and maintain warranty.

Technical Specifications

  • Model: TB175
  • Max. Gate Weight: 110 lbs.
  • Max. Gate Width: 54"
  • Max. Opening Angle: 90 degrees
  • Dimensions: 12½" L × 2½" W × 2⅜" D
  • Material: Stainless Steel, Powder Coated
  • Available Finishes: Black, White
  • Application: Commercial / Residential

Typical Applications

  • Commercial property perimeter and access control
  • Residential garden, yard, and pool gate safety
  • Multi-family and HOA common-area gates
  • Industrial and warehouse facility access points
  • Parking facility and recreation area entries

Lockey TB175 gate closers are engineered for demanding outdoor environments where automatic closing, controlled latching speed, and long-term durability are non-negotiable. Backed by Lockey's commercial-grade build quality.

Product Specs

Product Group:
Door Trim and Accessories
Product Subgroup:
Gate Latches and Locks
Product Type:
Gate Closers
Subcategory:
Gate Closer
Commercial/Residential:
Commercial
Max. Gate Weight:
110 lbs.
Max. Gate Width:
54"
Product Model:
TB175
Product Dimension:
12 1/2" L x 2 1/2" W x 2 3/8" D
Door Opening Size:
90 degrees
Product Category:
Gate Hardware
Product Substrate:
Stainless Steel
Department:
Door Hardware

Lockey TB175B – Frequently Asked Questions

1) How much room do I need on the gate to mount a TB175 closer?
The closer body measures 12-1/2 inches long by 2-1/2 inches wide by 2-3/8 inches deep, so you need a clear run of about 12-1/2 inches on the gate face plus room for the arm to swing. It mounts on the opening (push) side and can go at the top, middle, or bottom rail, which is what makes it work on gates with narrow top rails.
2) Does the Lockey TB175 work on a left-hand gate, or do I need to order a handed version?
Handing isn't a separate order. One TB175 installs on either a right- or left-hand gate, and it works with most in-line hinge arrangements. You pick the side and the rail height at install, not on the order form.
3) How far will a gate open with the TB175 closer installed?
90 degrees is the maximum opening angle for the TB175. If your gate can swing past that, add the optional GS-90 Gate Stop to physically limit the travel; Lockey ties that stop to keeping the closer within its rated use. On an opening that needs to swing wider than 90 degrees, this is the wrong closer.
4) Does the TB175 lock the gate, or do I still need a latch?
It only closes the gate. The TB175 is a closer, not a lock, so you still need a latch or gate lock to secure the opening. Lockey pairs it with a gate latch of your choosing; for keyed security on a swing gate, a surface mounted option like the Locinox LUKY swing gate lock with handle does the locking side of the job.
5) What closer works on a gate that has to swing both directions?
The Lockey TB175 mounts on the opening (push) side and opens to a maximum of 90 degrees, so it closes a gate swinging one way. For a leaf that has to swing both directions, the Norton Rixson Model 354 is a double-acting interior gate specialty closer for 75 lb doors, in the 350 Series. The 354 is an interior unit, while the TB175 is powder coated stainless steel built for outdoor exposure.
6) Will a Locinox gate lock close the gate the way the Lockey TB175 does?
No. The Lockey TB175 is a gate closer: a flush mount body that pushes the gate shut and controls closing and latching speed. The Locinox USA LUKY (LOCLUKY0J5LZCZB9005) is a surface mounted swing gate lock with handle, supplied less mortise cylinder, and its function is a single cylinder deadbolt. It secures the gate once shut but provides no closing force, so a job needing both self-closing and keyed security uses a closer and a lock together.
7) Can I set how fast the gate closes and how hard it latches separately?
Yes, the TB175 has two independent adjustments: closing speed for the main sweep and latching speed for the last part of the travel. That lets you slow a pool or playground gate through the swing but still give it enough push at the end to engage the latch, which is the usual complaint with single-speed gate springs.
8) What's the difference between the Lockey TB175 and a Norton Rixson gate closer?
Capacity and swing are what separate them. The TB175 is a flush mount, single-acting closer rated to 110 lbs and 54 inches wide, opening to 90 degrees on the push side. The Norton Rixson 1351 is an exterior gate closer for gates up to 250 lbs, and the Rixson 354 is a double-acting interior gate closer for 75 lb doors, so it swings both ways but is not the outdoor choice. Heavy perimeter gate, look at the 1351; standard garden, pool, or HOA gate under 110 lbs, the TB175 covers it.
9) What do I use instead of the Lockey TB175 on a gate wider than 54 inches?
The Lockey TB175 is specified to a maximum gate width of 54 inches and a maximum weight of 110 lbs, mounted top, middle, or bottom on the push side. For a wider or heavier leaf, the Norton Rixson Model 1351 is an exterior gate specialty closer rated for 250 lb gates in the 1351 Series. Where the wide leaf is interior and swings both ways, the Norton Rixson Model 354 is the double-acting interior gate closer, rated for 75 lb doors.
10) Which gate closer should I standardize on for exterior perimeter gates across a property?
For exterior gates the two exterior-rated options differ by leaf weight. The Lockey TB175 covers gates to 110 lbs and 54 inches wide, is commercial rated, and comes in Black or White powder coat over stainless steel, so a mixed fleet of garden, pool, and common-area gates can run one model in two finishes. The Norton Rixson Model 1351 is an exterior gate specialty closer for 250 lb gates, light duty, in the 1351 Series, which is where a heavy leaf on the same property would go. The Norton Rixson Model 354 is an interior unit and does not belong on a perimeter gate.
11) What finishes does the Lockey TB175 gate closer come in?
Two: black and white, both powder coated over stainless steel. Property managers standardizing across a run of gates can order either finish to the same TB175 spec, so the mechanical performance doesn't change with the color.
12) Is the Lockey TB175 rated for commercial use or is it a residential gate closer?
Commercial. Lockey classes the TB175 as a commercial product, and it is used on multi-family and HOA common area gates, warehouse and parking access points, and perimeter gates as well as residential garden and pool gates. The limits are the same either way: 110 lbs, 54 inches, 90 degrees.
13) Does the anti-theft protection plate for Locinox keeps replace a gate closer?
No. The Locinox USA SHIELD-SH-9005 is an anti-theft protection plate for Standard SA and Modulec SA keeps, with a single cylinder deadbolt function, and it guards the lock keep hardware. The Lockey TB175 is the device that closes the gate, a stainless steel powder coated flush mount closer with adjustable closing and latching speeds for gates to 110 lbs. They address separate parts of the same opening.
