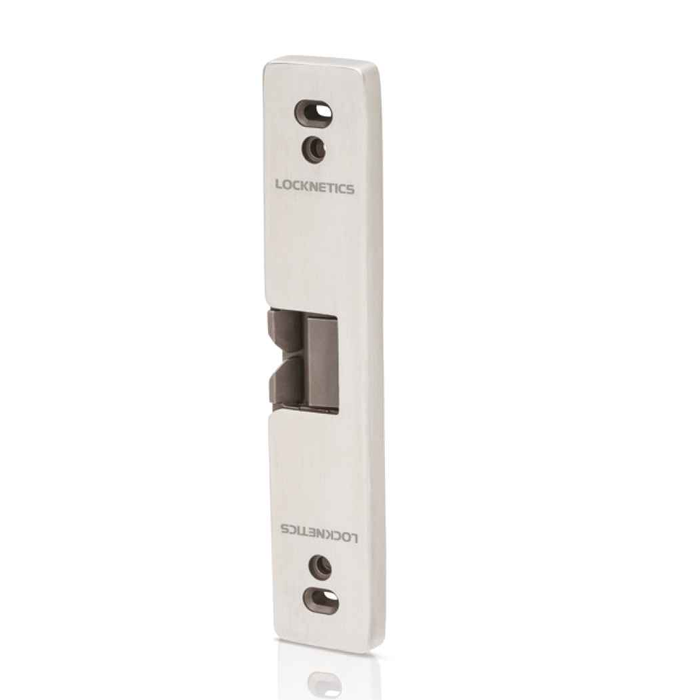

Locknetics RS300/RS310 Surface Mount Electric Rim Strike

Locknetics RS300/RS310 Surface Mount Electric Rim Strike

(No reviews yet) Write a Review

Model: RS310-32D
$588.00
$330.38
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$588.00
$330.38
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

LOCKNETICS RS300/RS100 SURFACE MOUNT ELECTRIC RIM STRIKE

The RS Series of surface mounted electric rim strikes are designed with endurance and flexibility. Available to accommodate rim exit devices with a 1⁄2" or 3⁄4" throw pullman latch bolt and multiple spacers are included for superior installation. Four attachment points to the frame provide for extra durability.

NEW MODEL: RS310 - 2023 MODEL

Locknetics Rim Strikes will transition from RS200 and RS300 to new RS210 and RS310 models effective January 3, 2023.

FEATURES

  • Surface mounted for easy installation
  • Slotted mounting holes for increased adjustment flexibility
  • Multiple spacers included for easy installation
  • Sleek cover case design
  • Field selectable fail-safe and fail-secure (fail-secure default), with simple and easy screw position change, non-fire rated models
  • Field selectable 12/24 VDC
  • Built-in voltage spike suppressor

FINISHES

  • 630/US32D: Satin Stainless Steel.
  • 613/US10B: Dark bronze.

RESOURCES & DOWNLOADS

Manufacturer Resources

Product Specs

Series:
RS Series
Product Group:
Electronic Access Controls
Product Subgroup:
Electric Strikes
Product Type:
Electric Strikes
Subcategory:
Electric Strikes
Commercial/Residential:
Commercial
Electronic:
Yes
Fail-safe / Fail-secure:
Field Selectable
Door Type:
Hollow Metal, Aluminum, Wood
Lock Type:
Exit Device
Duty Level:
Medium Duty
Battery Operated:
No
Product Model:
RS300
Product Voltage:
12/24 VDC
Mounting Method:
Surface
Product Category:
Electronic Access Controls
Department:
Door Hardware

Locknetics RS310-32D – Frequently Asked Questions

1) Can the Locknetics RS310 be set to fail-safe, and what does it do when power drops?
Fail-safe and fail-secure are field selectable on the non-fire-rated RS models, changed by moving a single screw position, and it leaves the factory set fail-secure. Fail-secure keeps the keeper locked with no power, so egress is still through the exit device push bar. Fail-safe releases the keeper on power loss to allow entry from the outside, which is what you want on a stairwell re-entry or a door on an access control lockdown scheme. Note the fire-rated versions are fail-secure only, that is a code requirement on a rated opening, not an option you order around.
2) Do I have to cut into the frame to install a Locknetics RS310 electric strike?
No frame cutout is needed. The RS Series mounts to the surface of the frame with four attachment points, and the mounting holes are slotted so you can shift it into alignment with the exit device latch rather than being locked to where you drilled. That is the practical reason to pick a surface rim strike on a retrofit, you are adding electric release to an existing rim exit device without a mortised prep. It works on hollow metal, aluminum, and wood frames.
3) Is there a fire rated version of the Locknetics RS310 rim strike?
Fire rated is an option you select when ordering, both a rated and a non-rated build exist in each finish. Pick carefully: the field selectable fail-safe/fail-secure feature is on the non-fire-rated models, so a rated opening gets the rated strike and lives with fail-secure operation. Ordering the non-rated version for a labeled door is the mistake that fails an inspection.
4) Should I use a rim exit strike or a strike for a cylindrical or mortise lock?
It comes down to what is on the door. The Locknetics RS Series is a rim exit device strike, it catches the pullman latch of a panic bar mounted on the door face. A door with a lever lockset instead needs a strike cut for that lock body, for example the Von Duprin 4211 for cylindrical locks or the Von Duprin 6210 for mortise locks. Ordering a rim strike for a lever lockset opening leaves you with a keeper the latch cannot reach.
5) What is the closest equivalent to a Locknetics RS310 surface mount rim strike from another manufacturer?
The SDC 30-4 Series is the nearest match in intent: it is a rim mount electric strike built for a 3/4 inch Pullman latchbolt with stainless steel construction, which is the same latch style the RS300/RS310 rim strike accepts for rim exit devices with a 1/2 inch or 3/4 inch throw Pullman latch bolt. The Hager 2945 is the other close peer, a fire rated rim exit strike with field selectable fail safe/fail secure operation and a latchbolt monitor, matching the RS310 configuration that pairs a fire rated body with latch bolt monitoring. Between the three, the decision usually comes down to whether the opening needs the fire rating and the monitor contact.
6) The frame is an aluminum storefront jamb. Can I use the RS310, or is there a better strike?
The RS300/RS310 is a surface mounted rim strike suited to hollow metal, aluminum, and wood doors, and it mounts to the frame at four points rather than into a mortised jamb pocket. Where the storefront jamb calls for a strike cut into the aluminum, the Adams Rite 7100 Series and 7160 are electric strikes for aluminum jambs with a 1-1/4 inch by 4-7/8 inch faceplate, and neither is fire rated. The Adams Rite 7170 is the corresponding body for hollow metal and wood jambs at the same faceplate size. Choose between them on whether the exit device latch is being caught at the surface or the jamb is being prepped.
7) I need latch bolt monitoring on the strike. Which options give me that besides the Locknetics RS310?
The RS310 is available with LBM latch bolt monitoring, including in a fire rated build in 630 satin stainless steel. On the peer side, the Hager 2945 is a fire rated rim exit strike with a latchbolt monitor and field selectable fail safe/fail secure. The Dortronics 3300 Series carries a latch bolt sensing switch at 12/24 VDC with a strike plate for ANSI prep at 4-7/8 by 1-1/4 inches. The Camden CX-ED1799L-8 is a Grade 1 fire rated dual monitor strike supplied with eight faceplates. The Dortronics and Camden bodies are jamb-prepped strikes, where the RS310 and the Hager 2945 serve rim exit devices.
8) Which electric strikes are Grade 1 if my facility spec requires it?
Among the comparable bodies, the Alarm Controls AES-100 is a Grade 1 heavy duty electric strike, the Von Duprin 4211 is Grade 1 heavy duty and fire rated for cylindrical locks, the Von Duprin 6210 is Grade 1 heavy duty for mortise locks, the Von Duprin 6400 is Grade 1 modular for mortise or cylindrical locks with a 3-hour UL 10C fire rating, the Securitron MUNL is Grade 1 and fire rated, the HES Folger Adam 310-1(X) strike body is Grade 1 and fire rated for 1/2 inch, 5/8 inch, or 3/4 inch throw latchbolts, and the Camden CX-ED1410/CX-ED1420 universal strikes are Grade 1 ANSI fire rated. The Locknetics RS300/RS310 is a medium duty commercial rim strike, so on a spec written to Grade 1 heavy duty, one of the above is the body to quote.
9) The exit device has a 5/8 inch latchbolt. Is the RS310 the wrong strike?
The Locknetics RS300/RS310 is built around a 1/2 inch or 3/4 inch throw Pullman latch bolt. For a 5/8 inch latchbolt, the SDC 15 Series is a 5/8 inch latchbolt strike with 12/24 VDC operation, the SDC 45F is a fire-rated 5/8 inch latchbolt strike with a radius corner faceplate, the Hager 2925 carries a 5/8 inch latch with field reversible fail safe/secure, and the Adams Rite 7240 is fire rated for a 5/8 inch latchbolt projection. The HES Folger Adam 310-1(X) strike body spans 1/2 inch, 5/8 inch, and 3/4 inch throws if one body needs to cover a mixed set of openings.
10) Can I get latchbolt monitoring on the Locknetics RS300/RS310 strike?
Yes, latchbolt monitoring is an order option, LBM. It gives your access control system a contact that reports whether the exit device latch is actually seated in the keeper, so the head end can tell a truly secure door from one that looks closed but did not latch. Specify it up front, it is a separate part number from the plain version, not a field-added kit. Both finishes and both the rated and non-rated builds are offered with LBM.
11) I have an RS300, is the RS310 the same strike?
The RS310 is the current model that replaced the RS300, part of a Locknetics changeover from RS200 and RS300 to RS210 and RS310 effective January 3, 2023. If you are matching an existing RS300 installation, the RS310 is the part to order now.
12) What else could I buy instead of the Locknetics RS310 for a rim exit device?
Closest like-for-like is the SDC 30-4 Series, a 3/4 inch pullman latchbolt rim mount electric strike in stainless steel. The Hager 2945 is another rim exit strike, fire rated, with field selectable fail safe/fail secure and a latchbolt monitor, so it covers the same option set. If your frame is prepped for a mortised strike rather than surface mount, the HES Folger Adam 310-1(X) body handles 1/2, 5/8 or 3/4 inch throw latchbolts and is Grade 1 fire rated.
13) Is the Locknetics RS310 rim strike heavy duty enough for a high traffic entrance?
It is rated medium duty for commercial use, which suits a typical office, tenant, or interior access controlled opening. For a main entrance taking constant abuse, a Grade 1 heavy duty strike is the better call, the Alarm Controls AES-100 is Grade 1 heavy duty and the Von Duprin 4211 is Grade 1 heavy duty and fire rated. Match the strike to the traffic, not to the door.
14) Is the HES 1500 or 1600 a substitute for the Locknetics RS310?
Not as a drop-in. The HES 1500 and HES 1600 items in the electric strike lineup are accessories for those Grade 1 fire rated series rather than a complete strike body, so ordering one does not produce a working strike at the opening. The same caution applies to the HES Folger Adam 310-1(X), which is a strike body on its own. If a full assembly is what the job needs, the HES Folger Adam 310-4-2 is a complete electric strike pac, though it is built for surface vertical rods rather than the rim exit device latch the RS300/RS310 catches.
15) What strike should I use on a pair of doors instead of the RS310?
The Rockwood double door electric strike is built for a double door application with a 3/4 keeper, and it is Grade 1 and fire rated in the 310-1 Series. The 3/4 keeper corresponds to the same 3/4 inch Pullman latch throw the Locknetics RS300/RS310 accommodates, so the latch on the exit device is not the variable; the difference is that the Rockwood body is configured for the pair. Confirm which leaf carries the active latch before ordering either.
16) Which fire rated electric strikes ship with multiple faceplates so one part covers several frame preps?
The Camden CX-ED1689L-4 is a fire rated universal low profile strike supplied with four faceplates, and the Camden CX-ED1799L-8 is a fire rated Grade 1 dual monitor strike supplied with eight faceplates. Those are the multi-faceplate option when a mixed set of frame preps is being standardized. The Locknetics RS300/RS310 takes a different approach for the same problem: it surface mounts with slotted mounting holes for adjustment flexibility and includes multiple spacers, so the frame prep is not what has to match.
17) What finishes does the Locknetics RS310 electric rim strike come in?
Two: 630 satin stainless steel (US32D) and 613 dark bronze (US10B). Satin stainless is what matches most commercial exit device trim and aluminum storefront, dark bronze matches oil rubbed bronze hardware and dark anodized frames. Both are available across every combination, rated or non-rated, with or without latchbolt monitoring.
