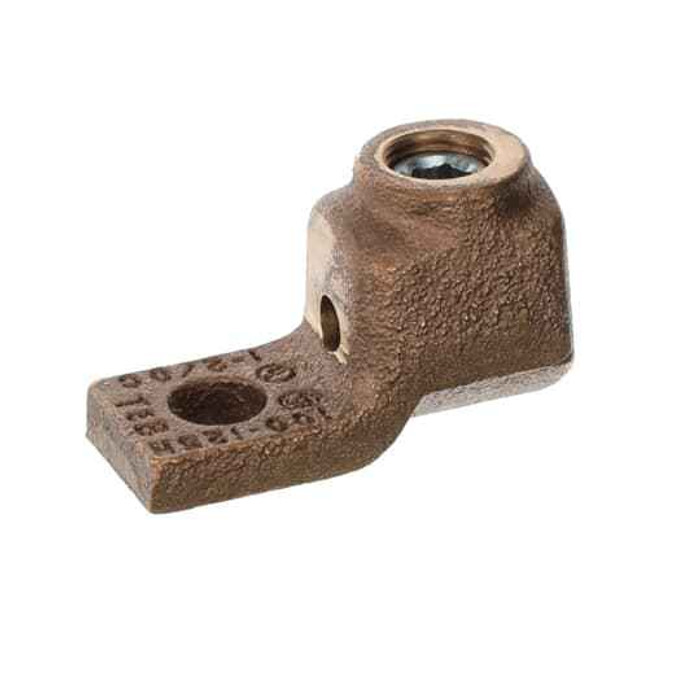

LOCKTITE CU 1HOLE LUG 1-2/0
Manufacturer Resources
Product Specs
- Country Of Origin:
- Mexico (MX)
- Product Group:
- Wire & Cable Management
- Product Type:
- Locktite Connectors
- Selling Unit Of Measure:
- each
- Standards:
- UL E9809
- Type2:
- Mechanical connectors
- Department:
- Electrical
- Product Subgroup:
- Connectors
- Product Material:
- Copper
Blackburn 31009 – Frequently Asked Questions
1) Can I use the Blackburn 31009 lug on aluminum conductors?
No. The 31009 is a copper-bodied lug listed for copper conductors only. For aluminum or dual-rated work you need an AL9CU-marked connector instead.
2) Is the Blackburn 31009 lug UL listed for use in a service panel?
The 31009 carries UL file E9809. It is a one-hole copper lug for terminating 1 through 2/0 copper to a bus bar, ground bar, or equipment pad.
3) Is the Blackburn 31009 a one-hole or two-hole lug?
One hole. A single bolt hole means the conductor can rotate about the bolt, so it suits ground bars and single-pad terminations. If your drawing calls for a two-hole NEMA pad termination to prevent rotation, the 31009 is not the right part.
4) Do I need a crimping tool for the Blackburn 31009 Locktite lug?
No crimper required. The 31009 is a mechanical set-screw type lug, so the conductor is landed and torqued with a hex key or driver. That makes it practical for field terminations and panel work where a hydraulic crimper is not on the truck.
5) How is the Blackburn 31009 lug sold, individually or in packs?
Sold each, so you order one per termination. Order the exact count your panel or ground bar needs, plus spares.
How fast can I get the Blackburn 31009 delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the
continental
U.S.
Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit,
reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Blackburn 31009 come with a warranty?
Absolutely. The Blackburn 31009 is backed by a manufacturer’s warranty.
For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Blackburn 31009?
You can call, text, or email our expert support team for fast answers. We’re here to help with
product
selection,
installation tips, and troubleshooting. Contact Us
