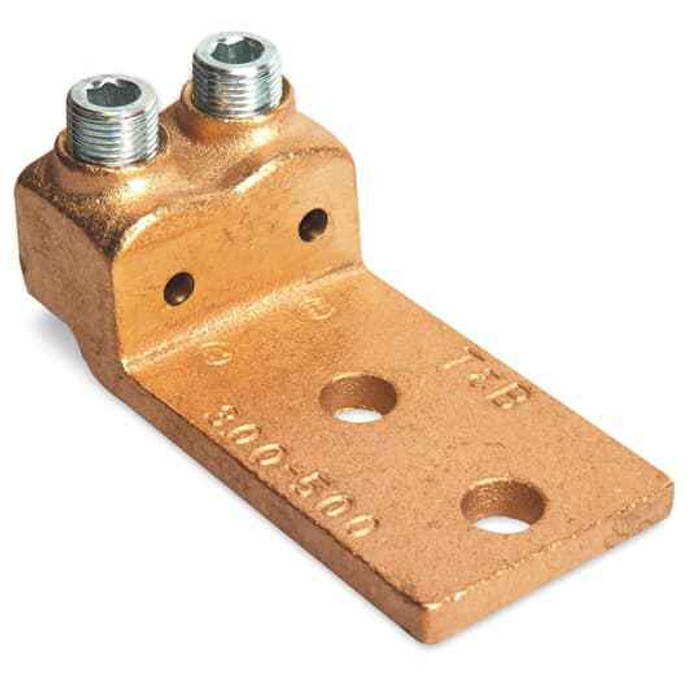

LOCKTITE CU DOUBLE BRL LUG 2/0-4/0
Manufacturer Resources
Product Specs
- Country Of Origin:
- Mexico (MX)
- Product Group:
- Wire & Cable Management
- Product Type:
- Locktite Connectors
- Selling Unit Of Measure:
- each
- Standards:
- UL E9809
- Type2:
- Mechanical connectors
- Department:
- Electrical
- Product Subgroup:
- Connectors
- Product Material:
- Copper
Blackburn 32011BD – Frequently Asked Questions
1) What wire sizes does the Blackburn 32011BD lug accept?
The Blackburn 32011BD Locktite lug is rated for conductors from 2/0 through 4/0. It's a double barrel lug, so it takes two conductors in that range, one per barrel, with a mechanical set screw clamp on each.
2) Is the Blackburn 32011BD copper or aluminum, and can I use it on aluminum conductors?
It's a copper-body lug, so use it with copper conductors. If your feeders are aluminum or you have a mixed AL/CU run, you need a dual-rated (AL9CU) connector instead, not this one.
3) Does the 32011BD Locktite lug need a crimp tool?
No crimping. The 32011BD is a mechanical set screw connector, so it lands with a hex wrench or socket to the screw manufacturer's torque value. That's the practical reason crews pick this over a compression lug on a service or panel change out where a hydraulic crimper isn't on the truck.
4) Why would I use a double barrel lug instead of two single lugs?
A double barrel lug lands two conductors on one pad, which is how you terminate parallel feeder runs (two 4/0 per phase, for example) where the equipment only gives you one bolt hole per phase. If each conductor has its own landing pad available, two single barrel lugs are the simpler buy.
5) How is the Blackburn 32011BD sold, individually or in a pack?
It's sold each, so order one per termination point. On a three phase service with a neutral you're counting four lugs at each end of the run.
6) What is the manufacturer part number and country of origin for this Blackburn lug?
Part number 32011BD from Blackburn, made in Mexico. That MPN is what you give a distributor or put on a submittal.
