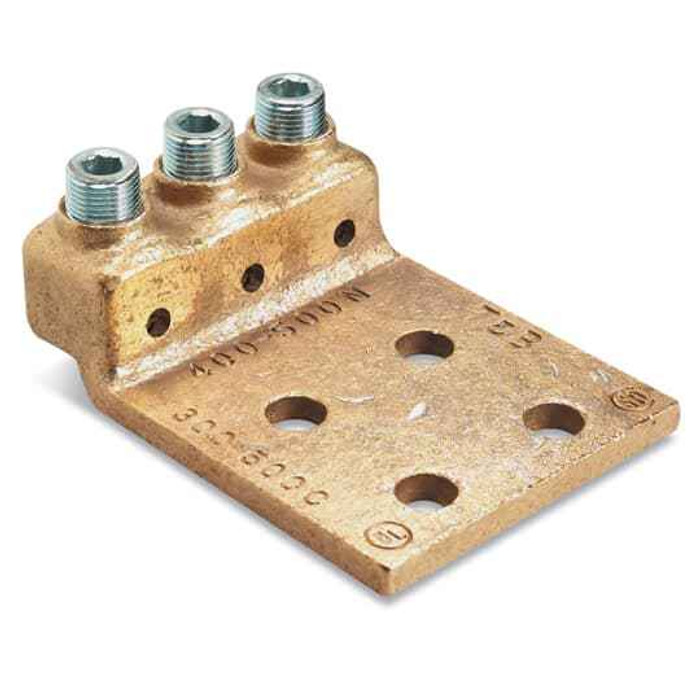

LOCKTITE CU TRIPLE BRL LUG 2/0-4/0
Manufacturer Resources
Product Specs
- Country Of Origin:
- Mexico (MX)
- Product Group:
- Wire & Cable Management
- Product Type:
- Locktite Connectors
- Selling Unit Of Measure:
- each
- Standards:
- UL E9809
- Type2:
- Mechanical connectors
- Department:
- Electrical
- Product Subgroup:
- Connectors
- Product Material:
- Copper
Blackburn 32011TB – Frequently Asked Questions
1) What wire sizes does the Blackburn 32011TB Locktite lug take?
The 32011TB is rated for conductors from 2/0 through 4/0. It's a triple barrel design, so it accepts three runs in that range on one lug pad, which is what you want when you're landing parallel feeders or several grounding conductors on a single bus or ground bar.
2) Is the Blackburn 32011TB lug copper or aluminum, and can I use it on aluminum conductors?
It's a copper-bodied lug. Copper-only connectors are listed for copper conductors, so if you're landing aluminum or an AL/CU mix you need a connector specifically listed for aluminum use rather than this one.
3) Is the Blackburn 32011TB a compression lug or a mechanical set screw lug?
Mechanical. The Locktite line is a set screw style mechanical connector, so it installs with a hex wrench or torque driver rather than a hydraulic crimper, and it can be backed out and re-landed if a conductor has to be moved.
4) Do I need one lug per conductor, or does the triple barrel handle three?
One 32011TB handles three conductors. That's the point of the triple barrel version, it consolidates three 2/0 to 4/0 runs onto a single mounting pad instead of stacking three single barrel lugs on the same bolt. If you only have one or two conductors to land, a single or double barrel lug in the same size range is the cleaner buy.
5) How is the Blackburn 32011TB sold, individually or in a bag?
Sold each, so quantity one gets you one triple barrel lug. Order by conductor count on the job, not by box.
6) What's the manufacturer part number for the Blackburn triple barrel copper lug for 2/0 to 4/0?
Blackburn 32011TB. Country of origin is Mexico. That MPN is what you'd put on a submittal or a counter order to get the copper triple barrel Locktite lug in the 2/0 through 4/0 range.
How fast can I get the Blackburn 32011TB delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the
continental
U.S.
Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit,
reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Blackburn 32011TB come with a warranty?
Absolutely. The Blackburn 32011TB is backed by a manufacturer’s warranty.
For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Blackburn 32011TB?
You can call, text, or email our expert support team for fast answers. We’re here to help with
product
selection,
installation tips, and troubleshooting. Contact Us
