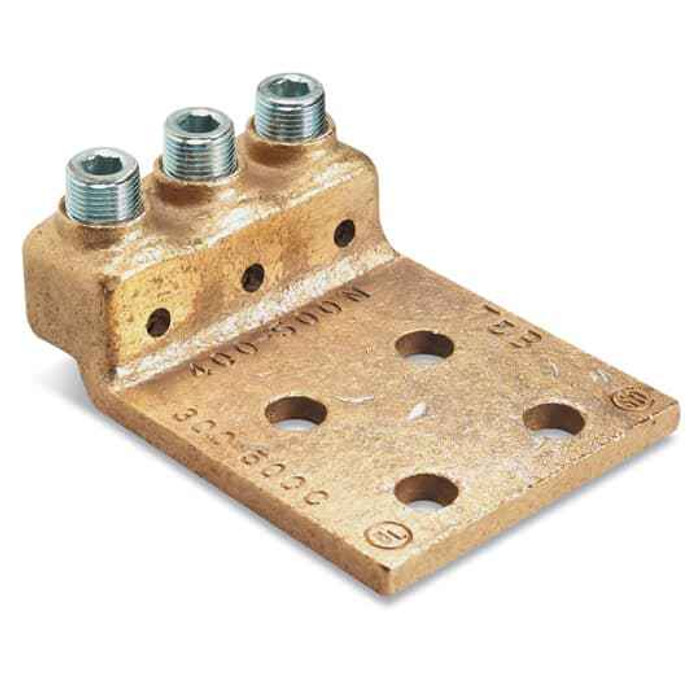

LOCKTITE CU TRIPLE BRL LUG 300-500
Manufacturer Resources
Product Specs
- Country Of Origin:
- Mexico (MX)
- Product Group:
- Wire & Cable Management
- Product Type:
- Locktite Connectors
- Selling Unit Of Measure:
- each
- Standards:
- UL E9809
- Type2:
- Mechanical connectors
- Department:
- Electrical
- Product Subgroup:
- Connectors
- Product Material:
- Copper
Blackburn 32015TB – Frequently Asked Questions
1) What wire size does the Blackburn 32015TB Locktite lug take?
The 32015TB is built for conductors in the 300 to 500 kcmil range, which is what the "300-500" in the part number refers to. Each of its three barrels accepts a conductor in that range, so it is not the right lug for smaller feeder or branch-circuit sizes.
2) Is the Blackburn 32015TB a copper-only lug or can I land aluminum conductors in it?
Copper only. The 32015TB is a copper-bodied mechanical connector (the CU in the description), so it should be used with copper conductors. For aluminum or dual-rated runs you want an AL9CU marked connector instead.
3) What does a triple barrel lug like the Blackburn 32015TB do that a single barrel lug can't?
A triple barrel lug lands three separate conductors on one pad. The 32015TB gives you three 300-500 kcmil barrels on a single mounting foot, which is how you parallel large feeders into one bus, breaker pad, or ground bar without stacking three individual lugs. If you only have one conductor per termination, a single barrel lug is the simpler part.
4) Does the 32015TB need a crimp tool or press to install?
No press required. It is a mechanical connector, so the conductors are landed and torqued down with set screws using a hex key or driver, not compressed with a hydraulic crimper. That makes it workable in a panel or pull box where you cannot get a crimp head in.
5) Is the Blackburn 32015TB sold individually or in a box?
It sells as each, one lug per unit, so you order the exact count your terminations call for rather than a carton quantity.
6) What is the manufacturer part number and country of origin on the Blackburn triple barrel Locktite lug?
Manufacturer part number is 32015TB from Blackburn, made in Mexico. That is the number to quote for a straight replacement of an existing triple barrel 300-500 kcmil copper lug.
