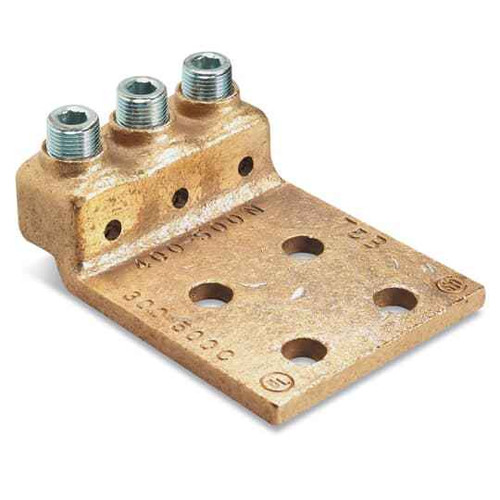

LOCKTITE CU DOUBLE BRL LUG 300-500
Manufacturer Resources
Product Specs
- Country Of Origin:
- Mexico (MX)
- Product Group:
- Wire & Cable Management
- Product Type:
- Locktite Connectors
- Selling Unit Of Measure:
- each
- Standards:
- UL E9809
- Type2:
- Mechanical connectors
- Department:
- Electrical
- Product Subgroup:
- Connectors
- Product Material:
- Copper
Blackburn 32015BD – Frequently Asked Questions
1) What wire sizes does the Blackburn 32015BD Locktite lug accept?
The 32015BD is rated for conductors from 300 through 500 kcmil, per the 300-500 range in its description. It's a double barrel lug, so it takes two conductors in that range, one in each barrel, which is how you land parallel feeders on a single pad without doubling up on one hole.
2) Is the Blackburn 32015BD lug copper only, or can I use it on aluminum conductors?
Copper. The 32015BD is a copper-bodied lug listed for copper conductors, so it isn't the part for aluminum or a dual-rated AL9CU application. If your feeders are aluminum, specify a dual-rated compression or mechanical lug instead.
3) Is the Blackburn 32015BD a compression lug or a mechanical set-screw lug?
Mechanical. It's a Locktite mechanical connector, so the conductor is secured with set screws and torqued down, no hydraulic crimp tool or dies required. That's the practical difference on the job: a mechanical lug can be installed and re-terminated with a hex driver and a torque wrench, where a compression lug is a one-shot crimp.
4) Is the Blackburn 32015BD UL listed for inspection sign-off?
Yes. The 32015BD carries UL file E9809, which is the reference an inspector or submittal reviewer will want alongside the conductor size and torque marking on the lug body.
5) Why would I use a double barrel lug instead of two single lugs?
A double barrel lug lands two conductors on one mounting pad. On a switchgear or transformer terminal where you have parallel 300 to 500 kcmil feeders and only one bolt hole per phase, two single lugs won't both fit. The 32015BD gives you two separate barrels off a single body, so the parallel run terminates cleanly without stacking lugs or adding a bus extension.
6) What part number do I put on the purchase order for the Blackburn double barrel copper lug 300-500?
Blackburn 32015BD. That manufacturer part number covers the copper Locktite double barrel lug for 300 to 500 kcmil conductors, and it's made in Mexico if country of origin needs to appear on your submittal or Buy American review.
7) Is the Blackburn 32015BD sold individually or in a box?
Sold each, so one lug per order. Order two per phase pair if you're landing both ends of a parallel run, and count your neutral and ground terminations separately.
