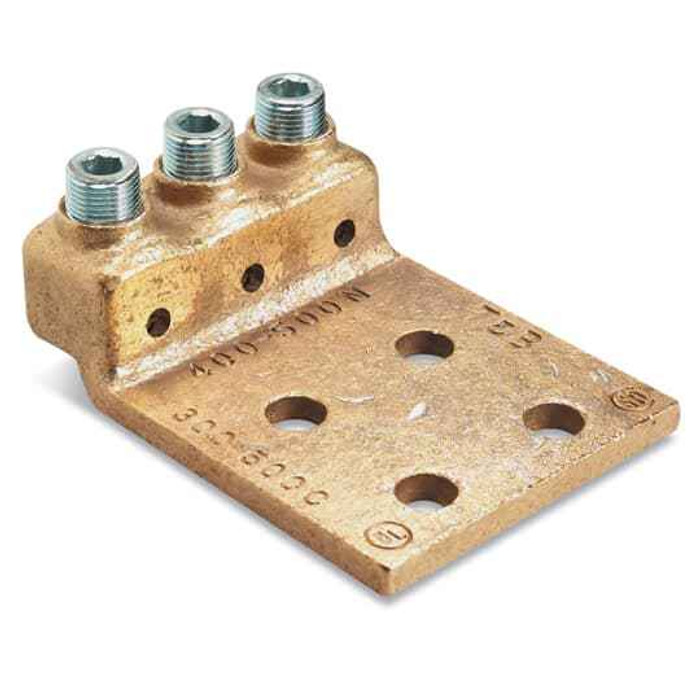

LOCKTITE CU TRIPLE BRL LUG 500-750
Manufacturer Resources
Product Specs
- Country Of Origin:
- Mexico (MX)
- Product Group:
- Wire & Cable Management
- Product Type:
- Locktite Connectors
- Selling Unit Of Measure:
- each
- Standards:
- UL E9809
- Type2:
- Mechanical connectors
- Department:
- Electrical
- Product Subgroup:
- Connectors
- Product Material:
- Copper
Blackburn 32017TB – Frequently Asked Questions
1) What conductor size does the Blackburn 32017TB lug take?
The 32017TB Locktite lug is built for 500 to 750 kcmil copper conductors, which is the range printed in the part description. Outside that range you need a different Locktite lug size, since mechanical set screw lugs only hold reliably on the conductor range they are rated for.
2) Can I use the Blackburn 32017TB on aluminum conductors?
No. The 32017TB is a copper-body lug specified for copper conductor, so aluminum cable calls for an AL9CU dual-rated or aluminum-bodied lug instead. Putting aluminum into a copper-only connector risks galvanic corrosion at the joint.
3) Is this Blackburn lug UL listed?
Yes, the 32017TB carries UL file E9809. That is the listing number inspectors look for on a mechanical connector, so it satisfies a spec calling for UL listed lugs.
4) What does the triple barrel on the 32017TB mean for wiring a panel or switchboard?
Triple barrel means three separate conductor ports in one lug body, so you can land three 500 to 750 kcmil copper conductors on a single pad. That is how parallel feeder runs get terminated at a panelboard, switchboard, or transformer lug pad without stacking multiple single-barrel lugs on one bolt.
5) Is the 32017TB a mechanical lug or a compression lug?
Mechanical. It is a set screw type connector, not a crimp, so it installs with a hex wrench and no hydraulic crimper or dies. That makes it the practical choice for field terminations and retrofit work where you cannot bring a crimp tool and correct die set to the conductor.
6) Is the Blackburn 32017TB sold individually or in a pack?
It ships as a single lug, sold each, under manufacturer part number 32017TB. If you are terminating both ends of a parallel feeder set you need to count one lug per pad.
7) Where is the Blackburn 32017TB lug made?
Country of origin is Mexico. That is the detail institutional and government buyers need when a purchase order carries domestic sourcing or country-of-origin reporting requirements.
