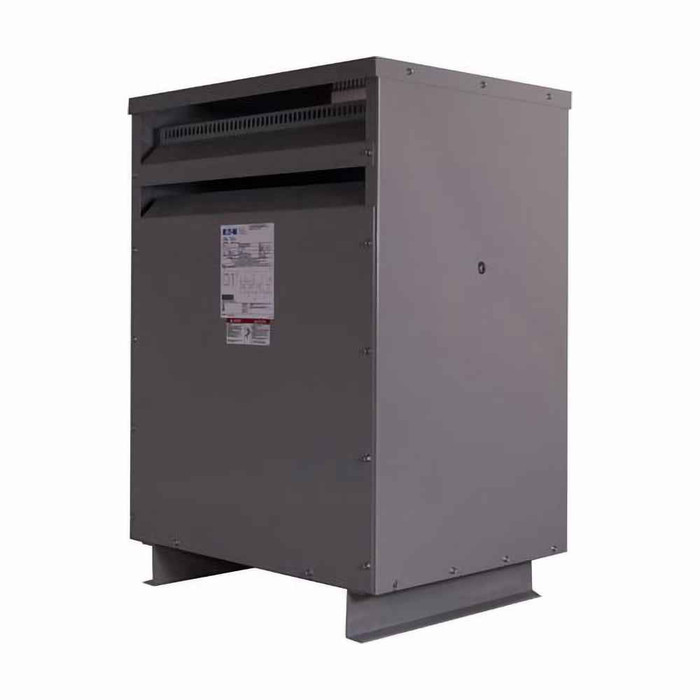

Marine Duty Transformer, Three-phase, PV: 480V, Taps: 2 at +2.5% FCAN, 4 at -2.5% FCBN, SV: 208Y/120V, 500 kVA, Cu windings, Frame: 919E, uses WS35
Manufacturer Resources
Product Specs
- Certifications:
- ABS Certified
- Coil Material:
- Copper
- Enclosure:
- NEMA 2
- Frame:
- 919E
- Frequency Rating:
- 60 Hz
- Phase:
- Three-phase
- Primary Voltage:
- 480 V
- Product Height:
- 75 in
- Product Length Depth:
- 36.23 in
- Product Weight:
- 3349 lb
- Product Width:
- 44.2 in
- Secondary Voltage:
- 208Y/120 V
- Tap Size:
- 2 at +2.5% FCAN, 4 at -2.5% FCBN
- Type:
- Marine Duty Transformer
- Volt Ampere Rating:
- 500 kVA
- Weathershield:
- WS35
- Product Group:
- Electrical
