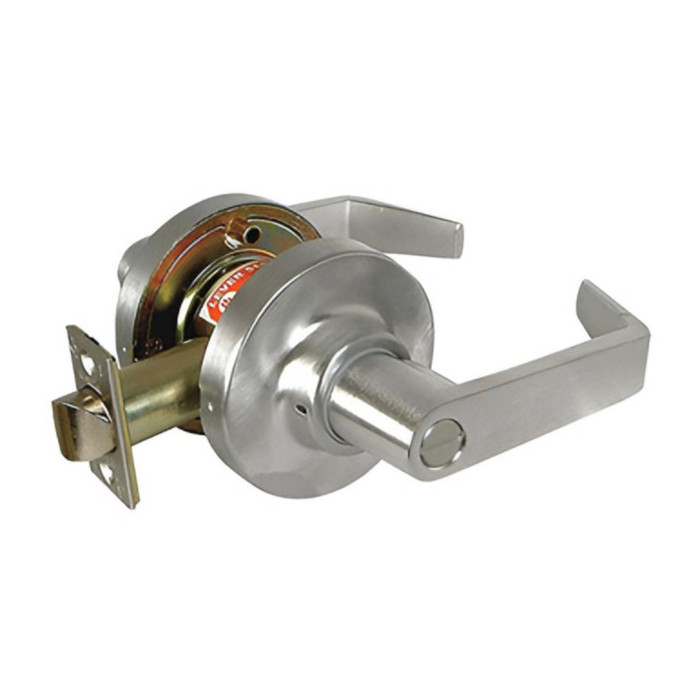

Marks USA 195P Patio Clutched Lever Lockset- Marks C Keyway, 6 Pin, 2-3/4in Backset, ANSI Strike, Grade 1

Marks USA MAR195P 195P Patio Clutched Lever Lockset — Grade 1 Survivor Series, American Lever, 2-3/4" Backset

(No reviews yet) Write a Review

Model: MAR195P/26D
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$318.22
$152.76
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Marks USA 195P Patio Clutched Lever Lockset — Grade 1 Survivor Series, American Lever, 2-3/4" Backset

The Marks USA 195P is a commercial-grade Patio Clutched Lever Lockset from the Survivor Series, engineered for exceptional durability and long-term performance in demanding applications. Featuring a unique stainless steel clutch mechanism paired with bronze roller bearings on a cast retractor chassis, this cylindrical lockset exceeds BHMA Grade 1 specifications by 300% — rated for over 3.6 million cycles. Designed for doors 1-5/8" to 1-7/8" thick with a 2-3/4" backset (2-3/8" backset also available), and 3-Hour Fire Rated for code-compliant installations.

Key Features

  • Exceptional Cycle Rating: Exceeds BHMA Grade 1 specifications by 300%, tested to over 3.6 million cycles for unmatched long-term reliability in high-traffic commercial environments.
  • Unique Clutch Mechanism: Stainless steel clutch disengages levers from the retractor and interior mechanisms when locked, allowing levers to swing freely without resistance — eliminating lever droop and dramatically reducing wear and maintenance.
  • Heavy-Duty Chassis Construction: Cast retractors on bronze roller bearings provide a strong, durable foundation for millions of cycles of dependable operation.
  • Solid Cast Zamac Levers: American lever style crafted from solid cast zamac with 1/2" return for a professional, lasting finish (except 395 & 495 variants).
  • Latch Specifications: Latch #1834 with 1-1/8" x 2-1/4" front, 9/16" throw, and stainless steel nose for smooth, reliable latching performance.
  • Thru-Bolted Roses: 3-7/16" diameter roses, spring loaded with 2 #10 thru-bolts for secure, tamper-resistant mounting.
  • 3-Hour Fire Rated: Meets 3-hour fire rating requirements; compatible with 2-3/8" and 2-3/4" backsets for flexible installation.
  • Marks "C" Keyway Cylinder: 6-pin cylinder with Marks "C" keyway and 2 keys included; K1904 spacer available for 1-3/8" doors.
  • Marks Lifetime Mechanical Warranty: Backed by Marks USA's Lifetime Mechanical Warranty for long-term confidence and protection.

Certifications & Compliance

  • ANSI/BHMA Grade 1 — Exceeds specification by 300% (over 3.6 million cycles)
  • UL Listed
  • 3-Hour Fire Rated
  • ADA Compliant
  • Marks Lifetime Mechanical Warranty

Technical Specifications

  • Series: 195 Series
  • Product Group: Mechanical Locks
  • Product Subgroup: Bored Locksets
  • ANSI/BHMA: ANSI/BHMA, UL Listed
  • Commercial/Residential: Commercial
  • Function Description: Latch retracted by knobs/levers at all times
  • ADA Compliant: Yes
  • Keyed: No
  • ANSI Function: F75
  • Product Function: Passage/Hall/Closet
  • Latch Type Specification: Deadlocking
  • Product Category: Mechanical Locks
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities and Schools
  • Healthcare Institutions and Hospitals
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential and Apartment Properties
  • Government and Municipal Buildings

Why Marks USA 195P?

Marks USA 195P Survivor Series locksets are built to outperform standard commercial hardware, with a proprietary stainless steel clutch and bronze bearing chassis that exceeds BHMA Grade 1 requirements by 300% — delivering over 3.6 million cycles of reliable, low-maintenance operation. The innovative clutch design eliminates lever droop and reduces interior mechanism wear, making the 195P an ideal choice for high-traffic commercial doors where long-term performance and minimal maintenance are essential.

Manufacturer Resources

Marks USA Product Catalog

Product Specs

Series:
195 Series
Latch Throw:
9/16"
Grade:
Grade 1
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Cylindrical Locks
Subcategory:
Cylindrical Locks
ANSI/BHMA:
ANSI/BHMA, UL Listed
Commercial/Residential:
Commercial
Lock Type:
Cylindrical
Function Description:
Latch retracted by knobs/levers at all times
Front Size:
1-1/8” x 2-1/4”
ADA Compliant:
Yes
Keyed:
No
ANSI Function:
F75
Product Attribute:
Cylindrical Locks
Product Function:
Passage/Hall/Closet
Latch Type Specification:
Deadlocking
Product Category:
Mechanical Locks
Backset (Distance):
2-3/4"
Department:
Door Hardware

Marks USA MAR195P/26D – Frequently Asked Questions

1) What door thickness does the Marks USA 195P lever lockset fit, and can it go on a 1-3/8 inch door?
The 195P is built for doors 1-5/8 inches to 1-7/8 inches thick, which covers standard 1-3/4 inch commercial doors. For a thinner 1-3/8 inch door you need the K1904 spacer, which Marks offers for that purpose. Without it, the chassis won't sit correctly in a thin door.
2) Will the Marks 195P latch into the strike prep I already have from a 2-3/8 inch backset lock?
The 195P ships standard with a 2-3/4 inch backset, and Marks also offers it in 2-3/8 inch, so you can match the existing cross-bore rather than re-drilling. The latch front measures 1-1/8 by 2-1/4 inches with a 9/16 inch throw, so if the old latch used the same face size the mortise cut-out in the door edge carries over.
3) Is the Marks USA 195P fire rated and ADA compliant for a school or hospital corridor door?
Yes on both counts. The 195P carries a 3-hour fire rating and is UL Listed, and the American lever meets ADA operable-hardware requirements. It is a commercial-rated lockset, ANSI/BHMA Grade 1, which is what corridor and cross-corridor openings in schools and healthcare typically specify.
4) What does ANSI F75 mean on a lever lockset, and does the Marks 195P lock at all?
F75 is the passage function: the latch is retracted by the lever from either side at all times, with no locking. The 195P as specified is non-keyed, so it holds a door closed and nothing more. If you need the door to lock, you want an entrance or privacy function instead, not this one.
5) The Marks 195P doesn't lock. What should I use instead if I need keyed or coded entry on that opening?
Being an F75 passage function, the 195P has no locking at all, so it is the wrong part for a controlled door. For keyed mechanical entry, the Dormakaba C853 is a Grade 1 single-cylinder entry lever covering 1-3/8 to 2-1/4 inch doors. For coded access without keys, the Alarm Lock Trilogy DL2700 is a Grade 1 standalone electronic cylindrical entrance lock with 100 user codes, and it fits the same 1-5/8 to 1-7/8 inch thickness range as the 195P, so the door prep carries over.
6) The door needs to be keyed. What replaces the Marks USA 195P?
The Marks USA 195P is a non-keyed passage lockset. For a keyed opening in the same cylindrical format, the Dorma C853 is a Grade 1 single cylinder keyed entry lever for doors 1-3/8 inch to 2-1/4 inch, the Dorma C150 is a Grade 1 entry/office cylindrical lock over the same door thickness range, and the Orca Hardware OCL250 is a Grade 2 entrance cylindrical lockset.
7) Will the Marks USA 195P work on a 2 inch thick door, and what fits if it will not?
The Marks USA 195P is built for doors 1-5/8 inch to 1-7/8 inch thick. For a 2 inch door, the Cal-Royal CAL30 Grade 1 passage lock covers 1-3/8 inch to 2 inch, and for keyed openings the Dorma C150 and Dorma C853 both cover 1-3/8 inch to 2-1/4 inch.
8) Why does the Marks Survivor Series clutch matter on a high traffic door?
The stainless steel clutch disengages the levers from the retractor and interior mechanism, so the lever can swing without driving the internals. That is what kills lever droop, the sag you get on abused openings where the lever no longer returns level. Combined with cast retractors on bronze roller bearings, Marks rates the chassis past 3.6 million cycles, well beyond the BHMA Grade 1 threshold. On a school gym corridor or an apartment common door, that is the difference between a lockset you touch once and one you keep servicing.
9) How is the Marks 195P mounted, and will the roses cover an old knob rose footprint?
Mounting is thru-bolted: 3-7/16 inch diameter spring-loaded roses pulled together with two #10 thru-bolts, which is the tamper-resistant arrangement you want on a public-side opening. At 3-7/16 inches the rose will cover a standard 2-1/8 inch cross-bore and most knob rose footprints of similar size.
10) What is the difference between the Marks 195P passage lever and a Grade 2 passage lever like the Orca OCL210?
Both do the same job, latch only, no locking. The split is duty. The Marks 195P is ANSI/BHMA Grade 1 with a clutched chassis rated past 3.6 million cycles, sized for heavy commercial traffic. The Orca Hardware OCL210 passage cylindrical lockset is Grade 2, medium duty, which is the right call on interior offices, closets and light-traffic tenant spaces where you don't need Grade 1. Dormakaba's CL701 is another non-keyed Grade 2 lever in that lighter class.
11) Is there another Grade 1 passage lever that fits a wider range of door thicknesses than the Marks 195P?
Yes. If your doors fall outside 1-5/8 to 1-7/8 inches, the Cal-Royal CAL30 Calypso Series is a Grade 1 extra heavy duty passage lockset listed for 1-3/8 to 2 inch doors. That wider range is useful when you are standardizing across a building with mixed door stock and don't want to stock the K1904 spacer for the thin ones.
12) Is there a lighter duty passage lever than the Marks USA 195P for low traffic interior doors?
The Orca Hardware OCL210 is a medium duty Grade 2 passage cylindrical lockset with the same Passage/Hall/Closet function. The Dorma CL701 is also a Grade 2 non-keyed passage lever, in the CL700 Series. The Marks USA 195P is Grade 1 and rated for commercial use, so the Grade 2 options step down the duty level while keeping the same free-turning passage operation.
13) If the opening needs coded access instead of a free passage lever like the Marks USA 195P, what Grade 1 cylindrical options exist?
The Marks USA 195P is mechanical and non-keyed, so it offers no access control. Grade 1 cylindrical keypad alternatives include the Alarm Lock Trilogy T2 DL2700, which fits doors 1-5/8 inch to 1-7/8 inch like the 195P and holds 100 user codes with IC/SFIC compatibility, and the TownSteel XCE-2000 Series heavy duty keypad lockset for doors 1-3/4 inch to 2 inch. The Schlage NDEB ENGAGE Series is a Grade 1 wireless Bluetooth cylindrical lock for doors 1-5/8 inch to 2 inch.
14) For a classroom door that needs lockdown capability, is the Marks USA 195P the right choice?
No. The Marks USA 195P is a Passage/Hall/Closet function lockset with no locking at all. For classroom security, the TownSteel FCE-4000 Series is a Grade 1 heavy duty RFID electronic intruder classroom cylindrical lockset for 1-3/4 inch doors, the TownSteel XCE-9000 Series is a Grade 1 electronic classroom intruder keypad lockset for doors 1-3/4 inch to 2 inch, and the Schlage XE360M is a Grade 1 wireless tubular lock with classroom/storeroom function for 1-3/4 inch doors.
15) How does the Stanley QTL230E passage lever differ from the Marks USA 195P?
The Stanley Security QTL230E is a QTL200 Series passage lever with a Sierra bent lever, small rose, adjustable square latch and a 4-7/8 inch x 1-1/4 inch ANSI strike. The Marks USA 195P uses an American lever style on 3-7/16 inch thru-bolted roses with a fixed 2-3/4 inch backset latch having a 1-1/8 inch x 2-1/4 inch front. If the existing prep matches a 4-7/8 inch ASA strike, the Stanley latch front and strike differ from the 195P's.
16) What finishes does the Marks USA 195P lever come in for matching existing hardware?
Three finishes: US3 bright brass, US26D satin chrome, and US10B oil-rubbed dark bronze. US26D is the usual match for commercial openings already running satin chrome closers and hinges; US10B suits darker hospitality and multi-family trim.
17) Does the Marks 195P use a deadlocking latch, and does that matter on a passage door?
The latch is a deadlocking type with a 9/16 inch throw and a stainless steel nose. On a passage function the deadlatch plunger mainly keeps the latchbolt from being pushed back by a warped or gasketed frame, and it gives smoother re-latching on a door that sees constant traffic. Strike alignment still needs to be good, since 9/16 inch of throw leaves little margin.
