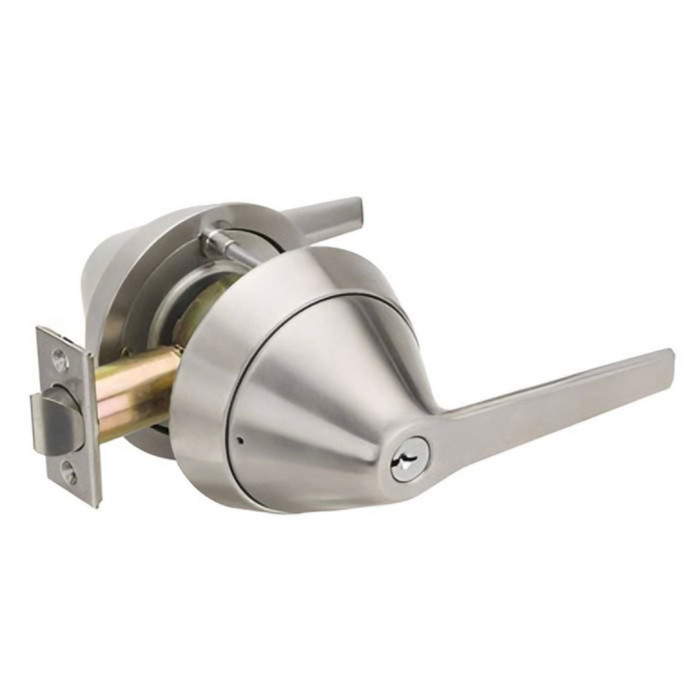

Marks USA 195SSRF SFIC - Storeroom Anti-Ligature Clutched Lever Lockset, Small Format IC, Less Core

Marks USA 195SSRF Storeroom Anti-Ligature Clutched Lever Lockset, Small Format IC, Less Core

(No reviews yet) Write a Review

Model: 195SSRF/32D
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$685.51
$345.49
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Marks USA 195SSRF Storeroom Anti-Ligature Clutched Lever Lockset, Small Format IC, Less Core

The Marks USA 195SSRF is a commercial-grade storeroom anti-ligature cylindrical lever lockset engineered for demanding environments where durability, safety, and long-term performance are critical. Featuring the proprietary Survivor clutch mechanism with a stainless steel clutch and bronze roller bearings, this lockset exceeds BHMA Grade 1 specifications by 300% — surpassing 3.6 million cycles. Designed for Small Format Interchangeable Core (SFIC) applications and sold less core, it accommodates door thicknesses of 1-5/8" to 1-7/8" (with optional K1904 spacer for 1-3/8" doors) and supports both 2-3/8" and 2-3/4" backsets. The 195SSRF carries a 3-Hour Fire Rating and is backed by the Marks Lifetime Mechanical Warranty.

Key Features

  • Exceptional Cycle Durability: Exceeds BHMA Grade 1 specifications by 300%, tested to over 3.6 million cycles for unmatched long-term reliability in high-traffic commercial applications.
  • Unique Clutch Mechanism: Proprietary stainless steel clutch and bronze roller bearings disengage levers from the retractor when locked, eliminating lever droop and dramatically reducing wear and abuse on internal lock components.
  • Anti-Ligature Design: Storeroom anti-ligature lever configuration engineered for safety-sensitive environments such as healthcare and behavioral health facilities.
  • Flexible Backset Options: Supports both 2-3/8" and 2-3/4" backsets (standard backset 2-3/4") to accommodate a wide range of door preparations.
  • Door Thickness Compatibility: Fits doors 1-5/8" to 1-7/8" thick; use K1904 spacer for 1-3/8" doors for versatile installation across door types.
  • Latch #1834 Specifications: Front measures 1-1/8" x 2-1/4" with a 9/16" throw and stainless steel nose for corrosion resistance and reliable latching.
  • Solid Cast Zamac Levers: Levers feature solid cast zamac construction with 1/2" return, providing a robust and durable grip surface for heavy commercial use.
  • Thru-Bolted Rose Assembly: 3-7/16" diameter spring-loaded roses secured with 2 #10 thru-bolts for a secure, tamper-resistant mounting.
  • Strike Included: Ships with #1135 4-7/8" ASA curved lip strike for complete, ready-to-install hardware.
  • 3-Hour Fire Rated: Certified for 3-hour fire-rated door assemblies, supporting life-safety compliance in commercial construction.
  • Marks Lifetime Mechanical Warranty: Backed by Marks USA's Lifetime Mechanical Warranty for long-term confidence and protection.

Certifications & Compliance

  • ANSI/BHMA Grade 1 — Exceeds by 300% (3.6 million cycles)
  • UL Listed
  • 3-Hour Fire Rated
  • ADA Compliant
  • Marks Lifetime Mechanical Warranty

Technical Specifications

  • Series: 195 Series
  • Product Group: Mechanical Locks
  • Product Subgroup: Bored Locksets
  • ANSI/BHMA: ANSI/BHMA, UL Listed
  • Commercial/Residential: Commercial
  • Function Description: Latch retracted by knobs/levers at all times
  • ADA Compliant: Yes
  • Keyed: No
  • ANSI Function: F75
  • Product Function: Passage/Hall/Closet
  • Latch Type Specification: Deadlocking
  • Product Category: Mechanical Locks
  • Department: Door Hardware

Typical Applications

  • Behavioral Health and Psychiatric Facilities
  • Healthcare Institutions and Hospitals
  • Educational Facilities and Schools
  • Correctional and Detention Facilities
  • Commercial Office Buildings
  • Government and Municipal Buildings
  • Multi-Tenant Residential and Assisted Living Properties

Why Marks USA 195SSRF?

Marks USA 195 Series locksets are built on a foundation of cast retractors on bronze roller bearings and a proprietary stainless steel clutch mechanism that sets them apart from standard cylindrical lever sets. With a tested cycle life exceeding 3.6 million cycles — 300% beyond BHMA Grade 1 requirements — and a 3-Hour Fire Rating, the 195SSRF delivers professional-grade reliability for the most demanding commercial and safety-critical applications. The anti-ligature design and ADA-compliant lever configuration make it an ideal choice wherever both security and occupant safety are paramount.

Manufacturer Resources

Marks USA Product Catalog

Product Specs

Series:
195 Series
Latch Throw:
9/16"
Grade:
Grade 1
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Cylindrical Locks
Subcategory:
Cylindrical Locks
ANSI/BHMA:
ANSI/BHMA, UL Listed
Commercial/Residential:
Commercial
Lock Type:
Cylindrical
Function Description:
Latch retracted by knobs/levers at all times
Front Size:
1-1/8” x 2-1/4”
ADA Compliant:
Yes
Keyed:
No
ANSI Function:
F75
Product Attribute:
Cylindrical Locks
Product Function:
Passage/Hall/Closet
Latch Type Specification:
Deadlocking
Product Category:
Mechanical Locks
Backset (Distance):
2-3/4"
Department:
Door Hardware

Marks USA 195SSRF/32D – Frequently Asked Questions

1) Will the Marks USA 195SSRF fit a 1-3/8 inch door?
Not as it ships. The 195SSRF covers 1-5/8 inch through 1-7/8 inch door thicknesses out of the box. For a 1-3/8 inch door you need to add the K1904 spacer, so order that with the lock if your openings are the thinner older interior doors. On standard 1-3/4 inch commercial doors it fits with no extra parts.
2) Does the 195SSRF work with a 2-3/8 inch backset, or only 2-3/4?
Both. The 195SSRF latch handles 2-3/8 inch and 2-3/4 inch backsets, with 2-3/4 inch as the standard setting, so it drops into either of the two common bored preps without a different latch.
3) Will the 195SSRF latch into the strike already in my frame?
The #1834 latch has a 1-1/8 x 2-1/4 inch front and a 9/16 inch deadlocking throw, which is the normal cylindrical lock geometry, so an existing ANSI frame prep generally takes it. A #1135 4-7/8 inch ASA curved lip strike ships with the lock if you are replacing the strike too.
4) Does a cylinder come with the Marks 195SSRF, or do I have to supply one?
It ships less core. The 195SSRF is prepped for a small format interchangeable core, so you supply the SFIC core keyed to your facility's system. Locksmiths standardizing a building on one keyway can key it into the existing SFIC program without changing the lock.
5) Can I use the Marks 195SSRF on a 3-hour fire rated door?
Yes. The 195SSRF carries a 3-hour fire rating and is UL Listed, which covers 3-hour rated door assemblies. It is also ADA compliant on the lever, so it satisfies both the life-safety and accessibility side of a corridor or stairwell opening.
6) What does the anti-ligature clutched lever on the Marks 195 Series actually do for a behavioral health unit?
Two things. The lever shape is anti-ligature, so there is no point for a cord to be tied off on a patient room or seclusion door. The Survivor clutch, a stainless steel clutch on bronze roller bearings, disengages the lever from the retractor when the lock is secured, so force applied to the lever does not transfer into the internal works. That is what kills lever droop and keeps the lock alive on abused openings in psychiatric and correctional facilities.
7) The door is 1-3/8 inch thick and I do not want to add a spacer. What lever works instead of the Marks USA 195SSRF?
The Marks USA 195SSRF fits doors 1-5/8 inch to 1-7/8 inch and needs the K1904 spacer below that. The Cal-Royal CAL30 passage lockset lists a 1-3/8 inch to 2 inch door thickness range, and the Dorma C150 heavy duty cylindrical lock in entry/office function covers 1-3/8 inch to 2-1/4 inch, so either handles a 1-3/8 inch leaf without extra parts.
8) I need keypad access on a storeroom door instead of the mechanical Marks USA 195SSRF. What are the options?
The Marks USA 195SSRF is a mechanical cylindrical lockset prepped for a small format interchangeable core and sold less core. For electronic credential entry on a cylindrical prep, the Alarm Lock Trilogy T2 DL2700 is a Grade 1 standalone electronic entrance lock with a digital keypad, 100 user codes and IC/SFIC compatibility, fitting doors 1-5/8 inch to 1-7/8 inch, and the Schlage XE360M is a Grade 1 wireless lock in classroom/storeroom function for 1-3/4 inch doors.
9) Does the Marks USA 195SSRF give occupant-side privacy locking like a restroom lever?
No. The Marks USA 195SSRF is an F75 function lock in which the latch is retracted by the levers at all times, so there is no inside locking control. For a privacy opening, the Cal-Royal CAL20 is a Grade 1 extra heavy duty privacy lock for 1-3/8 inch to 2 inch doors, and the Orca Hardware OCL240 is a Grade 2 medium duty privacy cylindrical lockset.
10) Is the Marks 195SSRF durable enough for a high-traffic corridor?
It is tested past 3.6 million cycles, which Marks states as exceeding ANSI/BHMA Grade 1 by 300 percent. Grade 1 is the heaviest commercial rating, so for school corridors, hospital wings and multi-tenant common doors the cycle life is well past what the traffic demands.
11) How is the 195SSRF mounted, and does it need through-bolting?
The rose assembly is thru-bolted: 3-7/16 inch diameter spring-loaded roses pulled together with two #10 thru-bolts. That is what makes it hold up to prying and pulling on abuse-prone doors, and it means the fasteners land through the door rather than into the trim only.
12) What ANSI function is the Marks 195SSRF and does the lever always retract the latch?
It is listed as ANSI F75 with the latch retracted by the levers at all times. If you need a function where the outside lever locks and the key retracts it, that is a different lock in the family, so match the function to the door before you order for patient rooms versus storage.
13) What else could I use if I need a Grade 1 cylindrical passage lever but not the anti-ligature design?
The Cal-Royal CAL30 Calypso is a Grade 1 extra heavy duty passage cylindrical lockset covering 1-3/8 inch to 2 inch doors, which is a wider thickness range than the Marks 195SSRF's 1-5/8 to 1-7/8 inch. For lighter traffic, the Orca OCL210 passage lockset is a Grade 2 medium duty option. Neither has the clutch or anti-ligature lever, so for behavioral health openings stay with the Marks.
14) I want keypad or credential access on the same door prep. What do you have instead of the Marks 195SSRF?
Several Grade 1 cylindrical electronics fit the same bored prep. The Alarm Lock Trilogy T2 DL2700 is a standalone keypad entry lock that takes an IC/SFIC core and covers 1-5/8 to 1-7/8 inch doors, the same thickness window as the 195SSRF, so it is the closest swap if you want to keep your SFIC keying. The Schlage NDEB ENGAGE is a Bluetooth wireless Grade 1 cylindrical lock for 1-5/8 to 2 inch doors with storeroom, office, privacy and apartment functions. TownSteel XCE-2000 is a keypad classroom lock for 1-3/4 to 2 inch doors.
15) Is the Marks 195SSRF a mortise lock or a bored cylindrical lock?
Cylindrical, bored. It installs in a standard cross-bore and edge-bore prep rather than a mortise pocket, which is why it retrofits existing cylindrical openings in schools and hospitals without new door machining. If your doors are prepped for a mortise case, this is not the lock for them.
16) Is there a lower-grade passage lever option than the Marks USA 195SSRF for light-traffic interior doors?
The Orca Hardware OCL210 is a Grade 2 medium duty passage cylindrical lockset, and the Dorma CL701 is a Grade 2 non-keyed passage lever in the CL700 series. The Marks USA 195SSRF is a Grade 1 commercial lockset tested past 3.6 million cycles, so the Orca and Dorma units sit at a lighter duty level for offices and closets that do not see institutional traffic.
17) Can I use a dummy lever in place of the Marks USA 195SSRF on an inactive leaf?
A dummy trim does not latch, so it is not a substitute on an active opening. The Marks USA 195SSRF is a cylindrical lockset with a deadlocking latch and a 9/16 inch throw. For a truly inactive leaf, the Dorma C501 is a single dummy lever trim for 1-3/8 inch to 1-3/4 inch doors and the Orca Hardware OCL2170 is a Grade 2 half dummy lever.
18) If the opening needs a keyed cylinder rather than the non-keyed Marks USA 195SSRF, what should I look at?
The Marks USA 195SSRF is listed as non-keyed with the latch retracted by the levers at all times. For a keyed cylindrical lever, the Dorma C853 is a Grade 1 single cylinder entry lockset in the C800 series for 1-3/8 inch to 2-1/4 inch doors, and the Orca Hardware OCL250 is a Grade 2 entrance cylindrical lockset.
19) For a classroom-intruder application, what replaces the Marks USA 195SSRF?
The 195SSRF is a passage-function mechanical lever without a classroom lockdown control. TownSteel offers Grade 1 heavy duty classroom cylindrical locksets for that use: the FCE-4000 is an RFID electronic intruder classroom lockset for 1-3/4 inch doors, and the XCE-9000 is a keypad electronic classroom intruder lockset for 1-3/4 inch to 2 inch doors.
20) Is a Lockey mechanical pushbutton knob lock an equivalent to the Marks USA 195SSRF?
Not an equivalent. The Lockey 2830 is a mechanical pushbutton keyless knob lock with an auto-locking passage function for doors 1-1/8 inch to 2 inch, and the Lockey 1600 is a heavy duty keyless knob lock with adjustable backset over the same thickness range. Both are knob trim with code entry, while the Marks USA 195SSRF is an ADA compliant lever set with a clutched, anti-ligature lever and a 2-3/4 inch backset.
21) What finish does the Marks USA 195SSRF come in?
One finish: US32D satin stainless steel. That is the standard institutional finish, so it lines up with stainless push plates, hinges and frames already common in healthcare and school corridors rather than forcing a finish mismatch.
