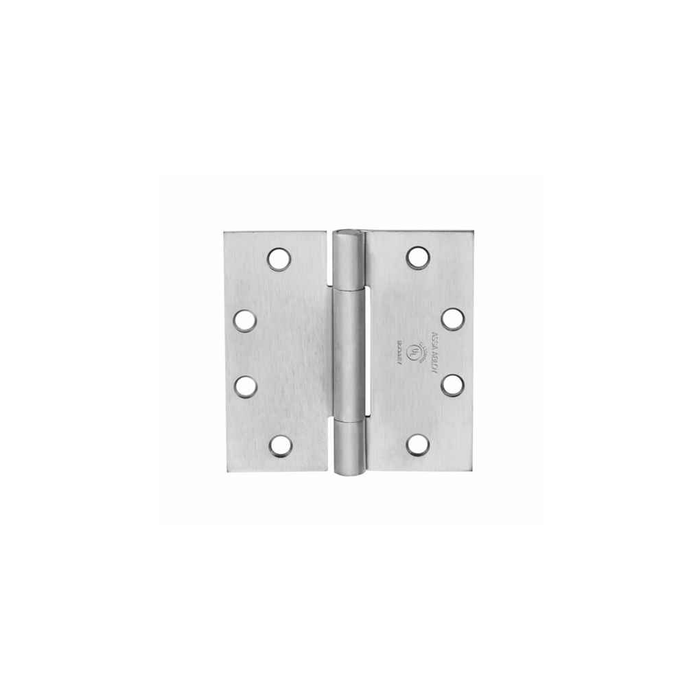

McKinney TA714 Square Corner 3 Knuckle Half Mortise Hinge

McKinney TA714 Square Corner 3 Knuckle Half Mortise Hinge

(No reviews yet) Write a Review

Model: TA714 4-1/2x4-1/2 26D
$30.19
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$30.19
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
McKinney TA714 Hinge Overview


McKinney is ASSA ABLOY’s line of high quality architectural hinges for commercial use. McKinney joined the ASSA ABLOY family of products in 1996. Under the ASSA ABLOY banner, we have greatly expanded the research and development, and manufacturing capabilities of this product line to have the most impact on improving custom hinge manufacturing.

Full Mortise Hinges
Full mortise hinges come in a variety of metals, finishes, sizes, and weights to meet all your load bearing and security applications. They include two, three, and five knuckle styles, swing clear hinges, wide throw hinges, anchor hinges, electric hinges, institutional hinges, and pivots.


The most common application is a flush door/frame/wall condition using a hollow metal frame with a standard hollow metal or wood door which is flush or 1/16" inset from the face of the frame, with a wall which is either flush (or inset from the
face of the frame. Recommended to hang door for 180Ëš swing: Full Mortise Hinge. The same hinge could be used with a wood or aluminum frame provided the door/frame/wall conditions are flush.

Oil Impregnated Bearing (TA)
One piece, non-ferrous, and self-lubricating bearings ensure even longer-lasting wear and resistance to clogging, corrosion, and hinge failure. This feature is standard and supplied on all five knuckle bearing hinges up to 5" height. All 6" or larger are Ball Bearing hinges.


RESOURCES & DOWNLOADS

McKinney Full Line Catalog

Manufacturer Resources

Product Specs

Subcategory:
Full Mortise Hinges
Knuckles:
3
Corner Style:
Square Corners
Fasteners:
Machine Screw: 1/2 in x #12-24; Wood Screw : 1-1/4 in x #12
Product Group:
Door Hinges and Pivots
Product Subgroup:
Full Mortise Hinges
Product Type:
Hinges
Features:
Recommended for Standard Weight, Medium Frequency Doors, or Doors With Closing Devices, Recommended to Hang Door for 180˚ Swing
Duty Level:
Medium Duty
Commercial/Residential:
Commercial
Tags:
McKinney TA714 Hinge
Product Model:
TA274
Product Category:
Door Hinges and Pivots
Product Substrate:
Steel
Department:
Door Hardware

McKinney TA714 4-1/2x4-1/2 26D – Frequently Asked Questions

1) What sizes and finishes does the McKinney TA714 hinge come in?
The TA714 is offered in two sizes, 4-1/2 x 4 inches and 4-1/2 x 4-1/2 inches, and each size comes in all three finishes: 625 bright chrome, 626 satin chrome, and BSP black suede powder. The 4-1/2 x 4-1/2 is the usual commercial pairing with a standard 1-3/4 inch door; the narrower 4-1/2 x 4 leaf is used where the door and frame do not need the extra leaf width.
2) Is the McKinney TA714 hinge heavy enough for a door with a closer on it?
Yes. The TA714 is rated medium duty and McKinney recommends it for standard weight, medium frequency doors, including doors with closing devices. If you are hanging a heavy door or a high traffic opening like a stairwell or a main entrance, step up to a heavy duty hinge such as the Don-Jo HWBB84545 or the Ives 3CB1HW instead.
3) Will a square corner hinge fit my frame, or do I need a radius corner?
The TA714 has square corners, so it drops into a square cut mortise, which is what most hollow metal frames and factory prepped commercial doors use. If your existing hinge pockets have rounded corners, a square corner hinge will not seat without chiselling the pocket square. For a radius pocket, look at a 1/4 inch radius commercial hinge like the Orca Hardware 4014 (4 x 4) or 3514 (3-1/2 x 3-1/2), or a 5/8 inch radius hinge such as the Delaney 4 x 4 exterior residential hinge. Pull a screw out of one of your old hinges and match the corner before you order.
4) Do McKinney TA714 hinges come with screws, and what size are they?
Both screw types ship with the hinge. You get 1/2 inch #12-24 machine screws for a hollow metal frame or a metal door, and 1-1/4 inch #12 wood screws for a wood door. So a hollow metal frame with a wood door is covered out of one box, no separate fastener order.
5) Do I need NRP hinges on an outswing exterior door?
Yes, and the TA714 can be ordered with the NRP non-removable pin option. On any outswing door the barrel sits on the outside, so a standard pin can be tapped out and the door lifted off. NRP puts a set screw in the barrel that seats against the pin once the door is closed. For an inswing interior door the standard pin is fine. If you want a factory NRP hinge from another line, the Hager BB1168-NRP and the Deltana CSB45N 4-1/2 x 4-1/2 are both supplied with non-removable pins.
6) Can I use McKinney TA714 hinges on an access control door that needs power to the lock?
No. The TA714 is a plain architectural steel hinge with no wire path through it. To carry power to an electrified lock or an electric strike in the door, you need an electric transfer hinge: the Command Access ETH-CB70 is a 3 knuckle standard weight transfer hinge in the same duty class, and the BEST CECB179-12C is a full mortise electrified hinge with a 12-wire quick connect. If you also need door position monitoring, the Command Access ETM-CB70 adds a position sensor. Only one hinge on the opening has to be the electrified one; the rest can be TA714s.
7) What is the closest 3 knuckle concealed bearing full mortise hinge to the McKinney TA714 for a medium duty commercial opening?
The Ives 3CB1 is the nearest counterpart. It is a 3-knuckle concealed bearing full mortise hinge rated medium duty, matching the TA714's medium duty level and 3 knuckle count. The TA714 comes in 4-1/2 by 4 inch and 4-1/2 by 4-1/2 inch sizes with square corners in 625 bright chrome, 626 satin chrome, and BSP black suede powder. For the same hinge in a bulk-packed reference the Ives 3CB1-B carries the same 3-knuckle concealed bearing full mortise build at medium duty.
8) The door is heavier than standard weight and has a closer on it - what should be used instead of a medium duty 3 knuckle hinge?
Step up to a heavy duty hinge. The Ives 3CB1HW is a steel heavy weight concealed bearing full mortise hinge with 3 knuckles, so the knuckle count and mortise prep stay familiar while the duty level moves to heavy duty. The Don-Jo HWBB74545 is a heavy weight full mortise ball bearing hinge in 4-1/2 by 4-1/2 inch satin chrome, which matches the larger of the two TA714 sizes. The TA714 itself is rated medium duty and is recommended for standard weight, medium frequency doors or doors with closing devices.
9) Is a Hager 1129 half mortise hinge the same thing as the McKinney TA714?
They are not interchangeable. The Hager 1129 is a half mortise plain bearing commercial hinge in 4-1/2 inch standard weight steel, rated heavy duty, and it mortises into the door with a leaf that surface-applies to the frame. The McKinney TA714 is a full mortise hinge, so both leaves mortise into the door and the frame. The TA714 also runs a bearing hinge build at medium duty rather than plain bearing. Confirm which prep the existing frame has before ordering either.
10) How many McKinney TA714 hinges do I need per door?
Three per leaf covers a standard commercial door up to about 7 feet 6 inches, which is what the TA714's medium duty, medium frequency rating is built around. Add a fourth for doors taller than that. Note the TA714 sells as an individual hinge, so a three hinge door is a quantity of three, unlike the Delaney and Deltana residential hinges that ship as a pair.
11) What is the difference between a 3 knuckle and a 5 knuckle commercial hinge?
The TA714 is a 3 knuckle steel hinge, which is the common architectural configuration for standard weight commercial doors. A 5 knuckle hinge like the Stanley FBB191 in 4-1/2 x 4-1/2 spreads the load over more bearing surface and is the choice on heavier leaves. For a standard weight medium frequency door, the 3 knuckle is what the opening calls for.
12) What is a simpler plain bearing alternative to the McKinney TA714 in a 4-1/2 inch square corner size?
The Orca Hardware 3535 Series is a 4-1/2 by 4-1/2 inch square corner ball bearing commercial hinge rated medium duty, matching the TA714's 4-1/2 by 4-1/2 inch square corner size and medium duty level. If the opening takes a 4 by 4 inch hinge, the Orca 4040 Series is a 4 by 4 inch square corner plain bearing commercial hinge, also medium duty. The TA714 is steel with square corners.
13) Can a residential hinge be used in place of the McKinney TA714 on a commercial door?
Match the application. The TA714 is specified for commercial use. Hinges like the Delaney 3-1/2 by 3-1/2 inch bulk steel residential interior hinges and the Emtek 91013 residential plain bearing hinges, sold in pairs at 3-1/2 by 3-1/2 inch with square corners in plated steel, are residential duty products and are also smaller than the TA714's 4-1/2 by 4 inch and 4-1/2 by 4-1/2 inch sizes. For a commercial opening, stay with a commercial hinge such as the Ives 3CB1 concealed bearing full mortise at medium duty.
14) The McKinney TA714 is being ordered with the non-removable pin option - what other hinge already carries NRP?
The Hager BB1168 is a non-removable pin full mortise ball bearing hinge rated heavy duty, so NRP is part of the model rather than an added option. The Deltana CSB45N is a 4-1/2 by 4-1/2 inch square hinge sold in pairs with a non-removable pin, matching the TA714's 4-1/2 by 4-1/2 inch square corner size. On the TA714, NRP is selected as an option on a medium duty 3 knuckle steel hinge.
15) The door has to self-close without a closer - is there a hinge alternative to the McKinney TA714?
The Stanley Security 2060R spring hinge is a full mortise square corner hinge at 4-1/2 by 4-1/2 inch on a ferrous steel base, rated heavy duty, and it carries the closing force in the hinge itself. It matches the TA714's 4-1/2 by 4-1/2 inch square corner size and full mortise prep. The TA714 has no spring; it is a medium duty hinge recommended for doors with closing devices, meaning a separate closer does the work.
16) What is the difference between the McKinney TA714 and a 5 knuckle standard weight hinge like the Stanley FBB191?
Knuckle count and duty rating. The Stanley FBB191 is a 5-knuckle full mortise standard weight hinge at 4-1/2 by 4-1/2 inch, rated heavy duty. The McKinney TA714 is a 3 knuckle full mortise hinge rated medium duty, available in 4-1/2 by 4 inch and 4-1/2 by 4-1/2 inch with square corners. Both mortise into door and frame, so the frame prep is comparable at the 4-1/2 by 4-1/2 inch size; the leaf appearance and bearing arrangement differ.
17) Is a pivot a substitute for the McKinney TA714 hinge?
No. The BEST DAP-3 is a heavy duty double acting pivot for commercial interior doors, and it mounts at the top and bottom of the door to let it swing both directions. The McKinney TA714 is a full mortise hinge with 3 knuckles that mounts on the edge of the door and is recommended to hang a door for a 180 degree swing. The two use entirely different door and frame preparation, so one cannot replace the other without reworking the opening.
18) For a detention or high security opening, what replaces the McKinney TA714?
Use a purpose-built security hinge. The BEST BB855 is a heavy-duty steel double weight concealed ball bearing prison hinge, and the Stanley double weight prison hinge is a 5 by 6 inch heavy duty hinge furnished with no holes and not swaged for custom prep. The Hager 990 STEEL is a full surface prison hinge, 3 by 4 inch, with a welded tip and a heavy duty rating. The McKinney TA714 is a medium duty commercial hinge intended for standard weight, medium frequency doors.
19) What heavy weight hinge matches the McKinney TA714 satin chrome finish for standardizing a building?
The Don-Jo HWBB84545 is a heavy weight full mortise ball bearing hinge, 4-1/2 by 4-1/2 inch in satin chrome, rated heavy duty, and the Don-Jo HWBB85045 is a 5 by 4-1/2 inch brass hinge in satin chrome, also heavy duty, for taller leaves on the heavier doors. The McKinney TA714 is offered in 626 satin chrome in both 4-1/2 by 4 inch and 4-1/2 by 4-1/2 inch, so the lighter openings and the heavier ones can carry a consistent satin chrome appearance.
20) Are McKinney TA714 hinges suitable for a house, or are they commercial only?
Built for commercial openings. The TA714 is a commercial grade steel hinge in medium duty, and it will work on a residential door, but the finishes (625 bright chrome, 626 satin chrome, black suede powder) and the square corner prep suit a hollow metal opening more than a typical home. For residential doors, the Emtek 91013 or the Delaney 3-1/2 x 3-1/2 interior hinges are sold as pairs and sized for standard house jambs.
21) Will 626 satin chrome hinges match the rest of my door hardware?
626 satin chrome is the standard commercial finish on levers, closers and exit devices, so TA714 hinges in 626 will read the same as most existing commercial trim. 625 bright chrome is the polished version of the same tone, and BSP black suede powder is a matte black for dark frames. All three are available in both the 4-1/2 x 4 and 4-1/2 x 4-1/2 sizes, so you can standardize a finish across a building without being locked into one leaf width.
22) What 2 knuckle hinge compares to the McKinney TA714 for a medium duty commercial door?
The Hager 920 is a full mortise concealed plain bearing hinge with 2 knuckle steel construction, rated medium duty, which is the same full mortise prep and medium duty level as the McKinney TA714 but with two knuckles instead of three. The TA714 is a 3 knuckle steel hinge with square corners. The knuckle count changes the exposed barrel appearance on the finished opening, so match it if the other doors already carry one style.
