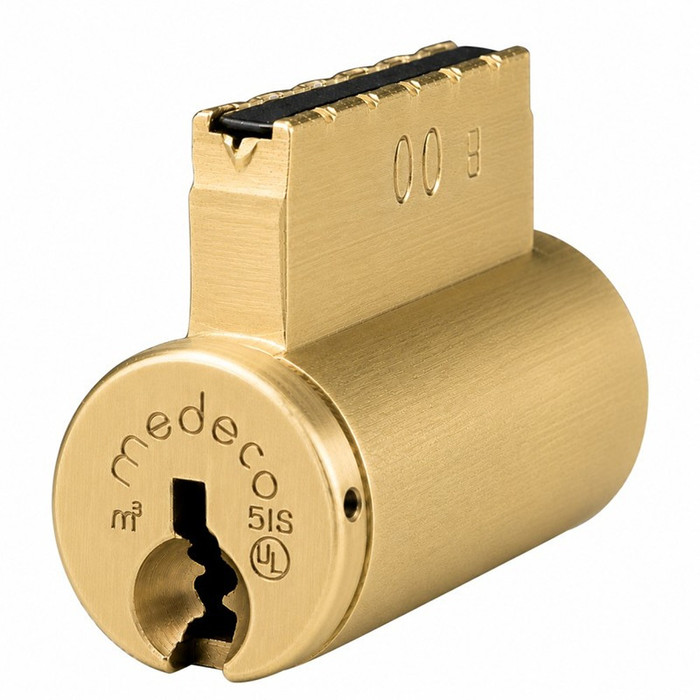

Medeco 20200V0 6-Pin Key-in-Kn...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$176.00
$148.37
Medeco Medeco 20200V0 - 6 Pin Cylinder for Dorma CL860 CL870 CL872 CL873 CL877 Lever & CK860 CK870 CK872 CK873 CK877 Knobs, Marks 110 170 180 190 195 295 Series, Embassy Vestibule MED-20200V0

Medeco 20200V0 6-Pin Key-in-Knob/Lever Cylinder for Dorma CL/CK860-877, Marks 110-295 Series & Embassy Vestibule

(No reviews yet) Write a Review

Model: 20200V0T-26-DLT
$176.00
$148.37
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$176.00
$148.37
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Medeco 20200V0 6-Pin Key-in-Knob/Lever Retrofit Cylinder for Dorma CL/CK860–877, Marks 110–295 Series & Embassy Vestibule

The Medeco 20200V0 is a precision-engineered 6-pin Key-in-Knob/Lever retrofit cylinder designed to upgrade the security of knob-type and lever-type cylindrical locksets without replacing the entire lockset. Compatible with Dorma CL860, CL870, CL872, CL873, CL877 lever locksets and CK860, CK870, CK872, CK873, CK877 knob locksets, as well as Marks 110, 170, 180, 190, 195, and 295 Series and Embassy Vestibule hardware, this cylinder delivers Medeco's hallmark high-security performance. Constructed of durable machined brass components, it meets ANSI A156.30 Level A and ANSI A156.5 Grade 1 certifications, ensuring patent-protected key control and consistent quality for heavy-use commercial applications.

Key Features

  • 6-Pin Cylinder Configuration: Features a 6-pin tumbler design for enhanced pick resistance and superior key control compared to standard cylinders.
  • Broad Retrofit Compatibility: Designed to retrofit Dorma CL860, CL870, CL872, CL873, CL877 lever locksets and CK860, CK870, CK872, CK873, CK877 knob locksets, as well as Marks 110, 170, 180, 190, 195, and 295 Series and Embassy Vestibule hardware — enabling security upgrades without full lockset replacement.
  • Medeco M4 (Medeco4) Platform: UL437 listed for drill and pick resistance with utility patent-pending key control, providing industry-leading physical security and key duplication prevention.
  • ANSI A156.30 Level A Certified: Assures patent-protected key control and physical strength for maximum security applications.
  • ANSI A156.5 Grade 1 Certified: Confirms consistent quality and durability for heavy-use commercial environments.
  • Durable Machined Brass Construction: All cylinder components are precision-machined from brass for long-lasting performance and corrosion resistance in demanding commercial settings.
  • Extensive Finish Options: Available in 14 finishes including Bright Brass (05), Satin Brass (06), Antique Brass (09), Satin Brass Blackened (10), Bright Bronze (11), Satin Bronze (12), Oil Rubbed Bronze (13), Bright Nickel (18), Satin Nickel (19), Antique Nickel (20), Black (22), Dark Bronze (24), Bright Chrome (25), and Satin Chrome (26) to match existing hardware aesthetics.
  • Industry-Leading Retrofit Range: Medeco offers over 100 different cylinder designs and tailpiece configurations, supporting the most popular security hardware and minimizing the need for complete lockset replacements.

Certifications & Compliance

  • UL437 Listed — Drill and Pick Resistance (Medeco M4)
  • ANSI A156.30 Level A — Patent-Protected Key Control and Physical Strength
  • ANSI A156.5 Grade 1 — Heavy-Use Commercial Quality
  • Commercial Grade

Technical Specifications

  • Product Family: Key-in-Knob/Lever Cylinder
  • Pinning: 6-Pin
  • Compatible Hardware: Dorma CL860 CL870 CL872 CL873 CL877 Lever & CK860 CK870 CK872 CK873 CK877 Knobs, Marks 110 170 180 190 195 295 Series, Embassy Vestibule
  • Certification: UL 437 Listed; ANSI/BHMA A156.30 (M4); ANSI/BHMA A156.5 Grade 1 (M4)
  • Construction: Durable machined brass components
  • Warranty: 2-year manufacturer's warranty

Typical Applications

  • Commercial Office Buildings Requiring High-Security Key Control
  • Educational Facilities Upgrading Existing Cylindrical Locksets
  • Healthcare Institutions with Restricted Key Access Requirements
  • Retail Establishments Retrofitting Knob or Lever Locksets
  • Government and Municipal Buildings with Strict Access Control Needs
  • Multi-Tenant Residential and Mixed-Use Properties
  • Industrial and Warehouse Facilities Requiring Durable, Pick-Resistant Cylinders

Why Medeco?

Medeco cylinders are built from precision-machined brass components and certified to both ANSI A156.30 Level A and ANSI A156.5 Grade 1 standards, delivering verified drill and pick resistance backed by UL437 listing. With over 100 retrofit cylinder designs and tailpiece configurations, Medeco provides one of the broadest compatibility ranges in the industry — making the 20200V0 an ideal choice for security professionals seeking high-security upgrades without the cost and disruption of full lockset replacement.

Manufacturer Resources

Medeco Product Catalog

Product Specs

Product Group:
Parts and Accessories
Series:
20200V0
Product Subgroup:
Cylinders
Product Type:
Key-in-Knob/Lever Cylinder
Commercial/Residential:
Commercial
Subcategory:
Cylinders
Cylinder Classification:
6Pin
Product Category:
Parts and Accessories
Department:
Door Hardware

Medeco 20200V0T-26-DLT – Frequently Asked Questions

1) Will the Medeco 20200V0 cylinder fit a Dorma CL870 lever lockset?
Yes. The 20200V0 is built as a retrofit key-in-knob/lever cylinder for the Dorma CL860, CL870, CL872, CL873 and CL877 lever locksets, and the matching CK860, CK870, CK872, CK873 and CK877 knob locksets. It drops into the existing lockset, so the knob or lever, chassis and door prep all stay as they are.
2) I have Marks 195 knob locks in my building. Is there a Medeco high-security cylinder that fits them?
The 20200V0 covers the Marks 110, 170, 180, 190, 195 and 295 Series, plus Embassy Vestibule hardware. One cylinder part number handles that whole spread, which is what you want if a property has a mix of Marks generations on different openings and you are standardizing key control across all of them.
3) Can I upgrade to Medeco without buying new locksets for the whole building?
That is the point of the 20200V0. It swaps the cylinder inside knob-type and lever-type cylindrical locksets you already have (Dorma CL/CK860-877, Marks 110 through 295, Embassy Vestibule) and leaves the lockset, trim and door prep alone. For a property manager or MRO buyer, that turns a lockset replacement project into a cylinder change on each door.
4) Should I order the 20200V0 in Biaxial or M3 keyway?
Order whichever platform your existing Medeco system is already on. The 20200V0 is offered in Biaxial and in M3, and those are different key platforms, so keys will not cross between them. If you are keying these into an existing master key system, match the platform on your current cylinders; if this is a brand new system, pick one and keep every opening on it.
5) Does the Medeco 20200V0 meet Grade 1 requirements for a commercial spec?
The certifications listed for the Medeco M4 platform are UL 437 for drill and pick resistance, ANSI/BHMA A156.30 Level A for patent-protected key control and physical strength, and ANSI/BHMA A156.5 Grade 1 for heavy-use commercial quality. That is the combination institutional and government specs normally call for when they ask for a high-security cylinder rather than a conventional one.
6) My locksets are Schlage and Sargent, not Dorma or Marks. Is the 20200V0 the right Medeco cylinder?
No. The 20200V0 is cut for Dorma CL/CK860-877, Marks 110 through 295, and Embassy Vestibule hardware, and the tailpiece and cylinder design are specific to those. Medeco builds over 100 different cylinder designs and tailpiece configurations across the retrofit line, so there is a different part number for other lockset brands. Identify the lockset series on the door first, then match the cylinder to it.
7) What is the difference between Pinned and Sub-Assembled when ordering a Medeco 20200V0?
Pinned means the cylinder ships built to your keying, ready to install. Sub-Assembled means it comes as an unpinned assembly for a locksmith or dealer to pin into their own restricted system, and there is also a Sub-Assembled, No Slider version supplied without the slider component. Locksmiths running their own keying bench usually take the sub-assembled options; a property manager or facility buyer wants Pinned.
8) Do I need to give keying information when I order this cylinder?
If you take the Pinned version, yes, it has to be pinned to a keyway and a key system, and the 20200V0 is available on either the Biaxial or the M3 platform. Medeco keyways are restricted, so key control sits with the authorized dealer for your system. If you are pinning in-house, order one of the sub-assembled versions instead.
9) Why choose a 6-pin cylinder over a standard 5-pin for a commercial door?
The 20200V0 is a 6-pin key-in-knob/lever cylinder, and the extra chamber both raises pick resistance and gives you more room to build a master key system without running out of usable key changes. On a multi-tenant or campus property where one grand master has to sit above several building masters, that additional depth is what keeps the system expandable.
10) Can I get this Medeco retrofit cylinder in a finish that matches my existing oil-rubbed bronze levers?
Thirteen finishes are offered: 605 Bright Brass, 606 Satin Brass, 609 Antique Brass, 611 Bright Bronze, 612 Satin Bronze, 613 Dark Bronze Oil-Rubbed, 618 Bright Nickel, 619 Satin Nickel, 20 Antique Nickel, 622 Flat Black, 624 Dark Bronze, 625 Bright Chrome and 626 Satin Chrome. For oil-rubbed bronze trim, 613 is the match.
11) Will this cylinder hold up in a high-traffic building or a damp environment?
Cylinder components are precision-machined brass, which is what gives it corrosion resistance in demanding commercial settings, and it is rated for heavy-use commercial environments under ANSI/BHMA A156.5 Grade 1. Typical uses run to schools, hospitals, warehouses, government buildings and multi-tenant residential.
