Medeco EA-100117 / T21 / Traka 21 Key Management System

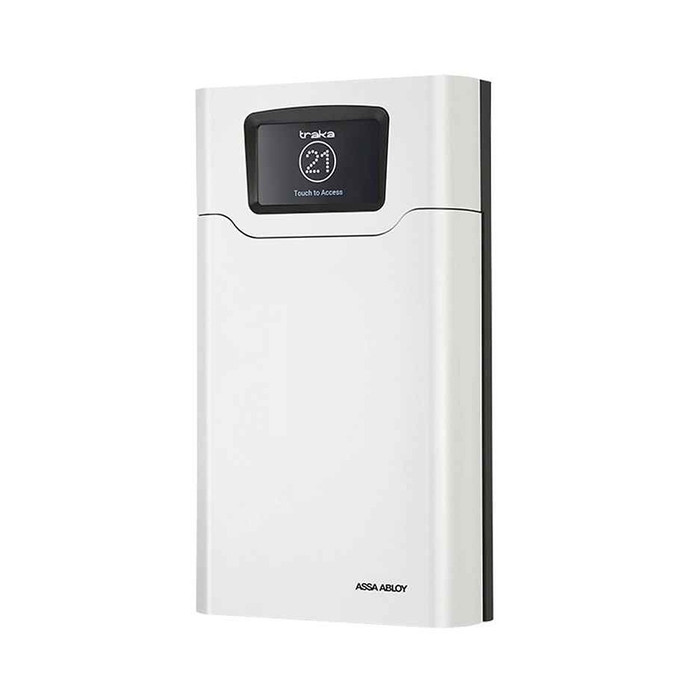

The Medeco T21 is a sophisticated stand-alone key management system which combines innovative RFID technology and robust design to provide small to medium-sized businesses with the advanced management of 21 keys or keysets in a plug and play solution.

Operation

  • Stand-alone Plug & Play solution with advanced RFID technology
  • Touchscreen interface
  • PIN access to designated keys or keysets which are individually locked in place
  • Keys are securely attached using special security seals
  • Simple to configure through setup wizard
  • No requirement for network connection or PC
  • Concealed robust fixing points allow secure wall fixing
  • Mains operated with optional battery backup

T21 Features

  • User, key and access rights administration
  • Multilingual functionality* (see details below)
  • Screen based audit trail and reporting capability or export via USB port
  • 21 robust, long-life iFobs with security seals
  • 21 locking receptors with LEDs
  • Robust and compact aluminium & ABS housing with no exposed hinges or obvious access points
  • Manual override and door release functions in case of emergency
  • Audible alarms

*Multilingual functionality (14 supported languages): English, Spanish, French, German, Russian, Italian, Swedish, Norwegian, Hebrew, Czech, Danish, Finnish, Polish, Arabic

Warranty: Medeco security locks warrants the T21 to be free of defects in material and/or workmanship for a period of one year from the date of original purchase.

T21 iFob
Once attached to an iFob with a robust security seal, individual keys or keysets are assigned a specific receptor within the T21 cabinet and locked in place until released by an authorised user.

T21 Security Seal
The secure one-time security seal is cost-effective and simple to apply.

Dimensions

Width: 246mm (9.69 inches)

Height: 427mm (16.81 inches)

Depth (body): 90mm (3.54 inches)

Depth (body+mounting surface- front of body to wall): 95mm (3.74 inches)



Manufacturer Resources

Medeco Product Catalog

Product Specs

Product Group:
Electronic Access Controls
Product Subgroup:
Controllers, Power Supplies and Transformers
Product Type:
Key Management System
Subcategory:
Key Cabinet
Commercial/Residential:
Commercial
Product Model:
T21
Product Category:
Other / Miscellaneous Hardware
Product Substrate:
Aluminum
Department:
Door Hardware

Medeco EA-100117 – Frequently Asked Questions

1) How many keys does the Medeco T21 key cabinet hold?
The Medeco T21 manages 21 keys or keysets. Each one attaches to its own iFob and gets assigned a specific receptor in the cabinet, so all 21 positions lock individually and release only to a user with rights to that key. If you run a property with more than 21 keysets to control, you need more than one cabinet or a larger system.
2) Does the Traka 21 key cabinet need to be networked or connected to a PC?
No network and no PC. The T21 is a stand-alone unit that you configure at the cabinet through a setup wizard on its touchscreen. User accounts, key assignments and access rights are all administered on the unit itself. That's the practical difference between this and a server-based key control system: nothing to install on your IT network, nothing for IT to approve.
3) How do users get a key out of the Traka 21, and can I tell who took it?
Users enter a PIN on the touchscreen and only the receptors they have rights to unlock. Every transaction is recorded: you can view the audit trail and run reports on the screen itself, or export the data out through the USB port if you want it in a file. Receptor LEDs show which position released, and audible alarms flag exceptions.
4) What stops someone from swapping a key off the fob and putting it back?
Keys and keysets attach to the T21 iFob with a one-time security seal. To remove the key you have to destroy the seal, which makes tampering visible the next time anyone looks at that fob. The seals are consumable, so order replacements for any key you legitimately need to re-ring.
5) What happens to a Traka 21 key cabinet if the power goes out?
The T21 runs on mains power with battery backup available as an option, so specify the battery if the cabinet sits somewhere that loses power or if keys must stay retrievable during an outage. There are also manual override and door release functions for emergencies, so keys are not trapped in a dead cabinet.
6) How much wall space do I need for a Medeco T21 key cabinet?
Plan for 246mm (9.69 inches) wide by 427mm (16.81 inches) high. The body is 90mm (3.54 inches) deep, and 95mm (3.74 inches) from the wall to the front of the body once it's on its mounting surface. Leave clearance in front for the door swing and for a user standing at the touchscreen.
7) How does the T21 mount, and can someone pull it off the wall?
It wall mounts through concealed fixing points, so once it's up there are no visible fasteners to attack. The housing is aluminium and ABS with no exposed hinges and no obvious access points. Mount it into solid backing, not just drywall.
8) Is the Medeco T21 key management system meant for commercial use, and what size operation?
It's a commercial-duty unit aimed at small to medium-sized businesses. Twenty-one positions covers a typical single building, a small vehicle fleet, or a maintenance shop's key ring inventory. Multi-site portfolios with hundreds of keys and centralized reporting across locations are the case for a networked system instead.
9) Is EA-100117 the same thing as a Traka 21?
Yes. EA-100117 is the Medeco order number for the T21, which is the same cabinet sold as the Traka 21. If a spec or a prior order lists any of those three, they're the one product, and EA-100117 is the number to order against.
10) Can the Traka 21 be used by staff who don't read English?
The interface runs in 14 languages: English, Spanish, French, German, Russian, Italian, Swedish, Norwegian, Hebrew, Czech, Danish, Finnish, Polish and Arabic. That matters on a mixed crew where the people pulling keys at shift change are not the people who set the cabinet up.
