Medeco XT 640155 Pop-Out T-Ha...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$134.34
$92.78

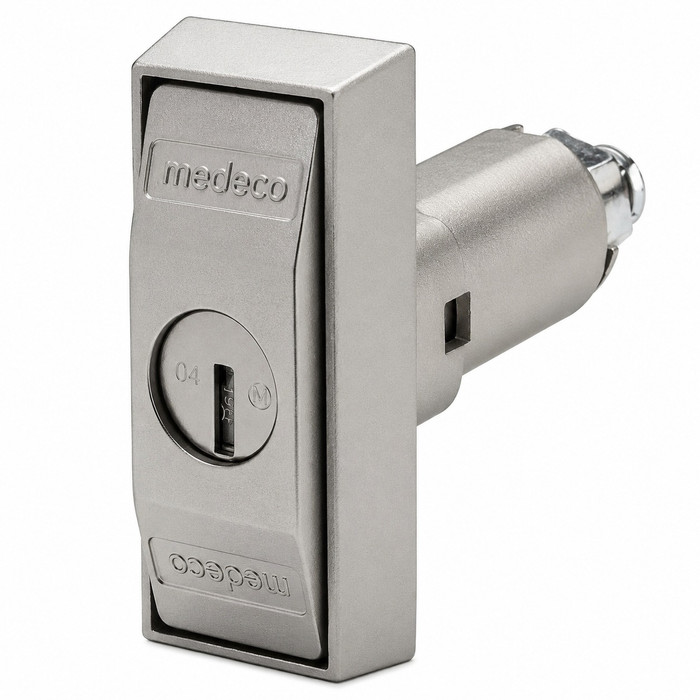

Medeco XT 640155 Pop-Out T-Handle Cylinders, Zinc

Medeco XT 640155 Pop-Out T-Handle Cylinders, Zinc

(No reviews yet) Write a Review

Model: 640155CTP
$134.34
$92.78

In Stock (leaves warehouse same day if ordered before 3pm ET)

$134.34
$92.78
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Medeco XT 640155 Pop-Out T-Handle Cylinders

The Medeco T-Handle is the first handle of its type designed specifically to defy forced entry. Conventional die cast construction has been replaced with 300-series stainless steel for the housing and handle components. The housing surrounds the handle to eliminate critical pry points, resist drilling, wrenching and other common forms of physical attack. Rear loading of the lock cylinder, combined with a free spinning hardened steel cover, protects against drilling and pulling. The Medeco® T-Handle inserts provide most of the same vandal resistant features of the complete Medeco® T-handle in an economical retrofit package. 300 Series stainless steel components and drill shields, defy drills, chisels, punches and other common vandal attacks. The lock cylinder loads behind the handle and is protected from drilling and pulling by a free-spinning hardened steel cover.



Manufacturer Resources

Medeco Product Catalog

Product Specs

Subcategory:
Mortise
Product Group:
Parts and Accessories
Commercial/Residential:
Commercial
Product Subgroup:
Cylinders
Duty Level:
Heavy Duty
Grade:
Grade 1
Product Model:
MED-640155
Product Category:
Parts and Accessories
Department:
Door Hardware

Medeco 640155CTP – Frequently Asked Questions

1) Will a Medeco XT 640155 pop-out T-handle cylinder retrofit an existing T-handle without swapping the whole handle?
That is what the Medeco T-handle insert is built for. The insert package carries most of the vandal resistant features of the complete Medeco T-handle in a retrofit form, so you keep the existing handle body and drop in the protected cylinder. The cylinder loads from behind the handle and a free spinning hardened steel cover sits over it, so a drill or a puller does not get a bite on the plug.
2) What is the difference between the deadbolt and springbolt versions of the Medeco XT 640155 T-handle cylinder?
Function decides how the door secures itself. The deadbolt version has to be thrown with the key every time the door is closed, so nothing locks unless someone locks it. The springbolt version latches on its own when the door swings shut and the key retracts it. On a vending, ATM, kiosk or utility enclosure route where the tech is in and out fast, springbolt keeps openings from being left unsecured; where you want a positive locked bolt and the tech will always key it, deadbolt is the choice. Both are offered on the 640155.
3) Should I order the Medeco 640155 T-handle cylinder pinned or sub-assembled?
Pinned means it arrives keyed and ready to install. Sub-assembled means it comes without the pinning finished, so a locksmith or an in-house shop pins it to the site keyway and key system on receipt. If you run your own key system and want these cylinders folded into an existing bitting list, take sub-assembled. If you want to hang the part on the door the day it lands, take pinned. Both types are available on the 640155 in either bolt function.
4) Does the Medeco 640155 T-handle cylinder come in 4-pin and 5-pin?
Both. The 640155 is built as a 4-pin or a 5-pin cylinder, and either can be ordered pinned or sub-assembled with a deadbolt or springbolt function. Pin count has to match the key system you are already running, so if you are adding cylinders to an existing Medeco route, order the same pin count as the cylinders in the field. Mixing 4-pin and 5-pin on one route means two key populations for the same tech.
5) What makes the Medeco T-handle harder to break into than a standard die cast T-handle?
Material and geometry, both. Conventional T-handles are die cast; the Medeco housing and handle components are 300 series stainless steel instead, and the housing wraps the handle so there are no exposed pry points to get a bar into. The stainless drill shields turn away drills, chisels and punches. The cylinder itself sits behind the handle under a free spinning hardened steel cover, which defeats the two attacks that actually open these things in the field: drilling the plug and yanking the cylinder out.
6) Is the Medeco XT 640155 a mortise style cylinder?
Yes, the 640155 is a mortise cylinder built for the pop-out T-handle application, not a rim or key-in-knob cylinder. That matters when you are pulling a part number off an existing handle: a mortise cylinder threads into the handle body, so a rim cylinder with a tailpiece and back plate is not a substitute no matter how close the keyway looks.
7) What is the model number to order Medeco pop-out T-handle cylinders in zinc?
Order against Medeco model 640155. Every configuration is a zinc substrate cylinder, and you specify three things on top of the model: cylinder type (pinned or sub-assembled), function (deadbolt or springbolt), and pin count (4-pin or 5-pin). That is eight orderable combinations in total.
