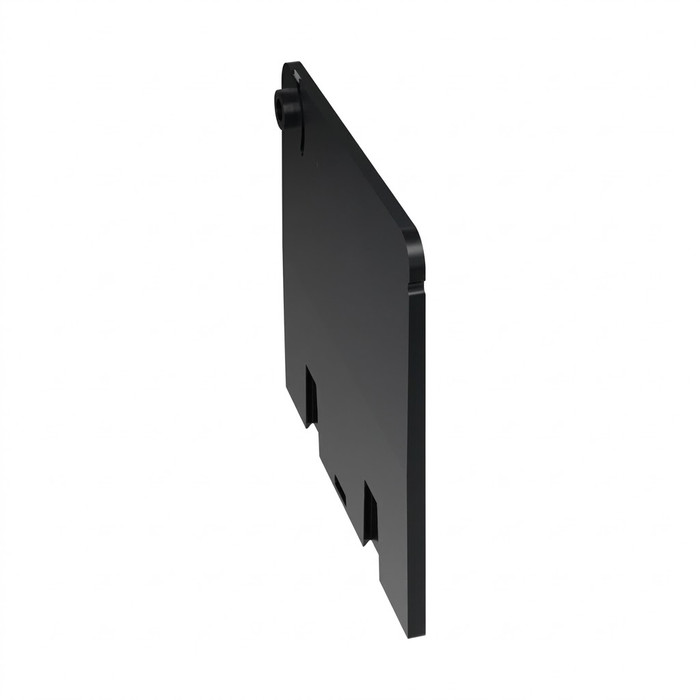

Mersen MPDB Series 1000V Open-Style Mini End Barrier

Mersen MPDB Series 1000V Open-Style Mini End Barrier

(No reviews yet) Write a Review

Model: MPDBE6263

In Stock (leaves warehouse same day if ordered before 3pm ET)

$14.04
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Mersen MPDB Series 1000V Open-Style Mini End Barrier

The Mersen Open-Style Mini End Barrier is part of the Next Generation MPDB power distribution block (PDB) lineup, engineered for splicing cables, splitting primary power into secondary circuits, and serving as a fixed junction tap-off point. Rated 1000V AC/DC per UL and offered under UL 1953, this miniature block belongs to the MPDB62 and MPDB63 series and is built to meet spacing requirements for feeder and branch circuits under UL508A and the National Electrical Code®. Every Mersen PDB is UL and CSA approved, giving panel builders a dependable, code-compliant splicing solution.

Key Features

  • Voltage Rating: 1000V rated voltage AC and 1000V rated voltage DC per UL for flexible primary power distribution.
  • Open-Style Mini End Barrier Design: Provides a safe, accessible method of splicing cables and splitting primary power into secondary circuits.
  • Miniature Series: Part of the compact MPDB62 and MPDB63 miniature size category within the broader MPDB power distribution block line.
  • Frequency Rating: Rated for 50/60 Hz AC/DC operation to suit standard power distribution applications.
  • Short Circuit Rating: 10 kA standalone short circuit rating for dependable fault performance.
  • Code-Compliant Spacing: Meets spacing requirements for feeder and branch circuits in conjunction with UL508A and the National Electrical Code®.
  • RoHS Compliant: Manufactured to RoHS compliance standards for restricted-substance requirements.

Certifications & Compliance

  • UL 1953
  • UL and CSA Approved
  • Meets UL508A Spacing Requirements
  • RoHS Compliant

Technical Specifications

  • ROHS Compliant: Yes
  • AC or DC: AC/DC
  • Frequency (Hz): 50/60 Hz
  • Rated Voltage DC UL: 1000 V
  • Rated Voltage AC UL: 1000 V
  • Short Circuit Rating (Standalone): 10 kA
  • Packaging: 25 EA

Typical Applications

  • Power Distribution Block Splicing Applications
  • Primary-to-Secondary Circuit Power Splitting
  • Fixed Junction Tap-Off Points
  • UL508A Panel Building
  • Feeder and Branch Circuit Wiring

Why Mersen?

Mersen power distribution blocks are engineered for safety and reliability, combining a 1000V AC/DC UL rating, UL and CSA approval, and RoHS compliant construction in a compact miniature MPDB design. For electrical professionals building code-compliant panels to UL508A and NEC requirements, the Mersen Open-Style Mini End Barrier delivers a dependable splicing and power-splitting solution backed by recognized industry listings.

Manufacturer Resources

Mersen Product Catalog

Product Specs

AC or DC:
AC/DC
ROHS Compliant:
Yes
Frequency (Hz):
50/60 Hz
Rated voltage DC UL:
1000 V
Rated voltage AC UL:
1000 V
Short Circuit Rating (Standalone):
10 kA
list_batch:
MERSEN-20260825
Department:
Electrical
Product Group:
Circuit Protection
Product Type:
Fuse Block Accessory
Product Subgroup:
Fuse Holders & Blocks

Mersen MPDBE6263 – Frequently Asked Questions

1) What does the Mersen MPDBE6263 end barrier actually do on a power distribution block?
MPDBE6263 is an open-style end barrier for the Mersen MPDB miniature power distribution blocks, not a block itself. It closes off the exposed end of an open-style PDB so the live terminal face is covered and the block keeps the spacing it needs for feeder and branch circuit use under UL508A and the NEC. If you need the block that does the splicing or the primary-to-secondary tap-off, order an MPDB62 or MPDB63 block; this part finishes it.
2) Which Mersen MPDB blocks does the MPDBE6263 barrier fit?
It belongs to the MPDB62 and MPDB63 miniature series. Those are the compact blocks in the Next Generation MPDB lineup, so the barrier is sized to that frame. It is not an accessory for the larger MPDB case sizes.
3) What short circuit rating do the Mersen MPDB mini blocks carry with this barrier?
10 kA standalone short circuit rating. If your panel's available fault current at that point exceeds 10 kA, the assembly has to be protected by an upstream device that brings it inside that figure, which is the usual UL508A series-rating exercise.
4) Will this Mersen barrier pass a UL508A panel inspection?
The MPDB mini end barrier is UL and CSA approved and offered under UL 1953, and the series is built to meet spacing requirements for feeder and branch circuits in conjunction with UL508A and the National Electrical Code. For a listed industrial control panel that is the paperwork an inspector looks for on the distribution block end treatment.
5) Is a 1000V end barrier rated for DC bus work as well as AC?
Both. The MPDB mini end barrier carries 1000 V AC and 1000 V DC UL ratings, with 50/60 Hz AC/DC operation, so it suits solar and DC bus panels as well as conventional AC feeder distribution.
6) How many Mersen MPDBE6263 barriers come in a pack?
They ship 25 each per pack, which is how Mersen packages this accessory. Worth knowing before you buy for a single panel build, since each open-style block typically needs barriers on the exposed end only.
7) Is the Mersen MPDB end barrier RoHS compliant for export panels?
Yes, MPDBE6263 is manufactured to RoHS requirements, so it is acceptable in panels built for restricted-substance jurisdictions.
