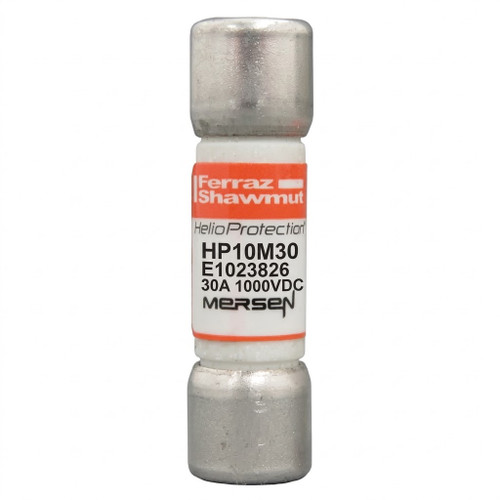

Mersen HP10M Series Photovoltaic gPV Fuse, 1000VDC UL, Ferrule Clip Mount
Model: MER-HP10M
Mersen
Mersen A70QS Series Cylindrical Semiconductor Fuse, 700V Ferrule Mount
Model: MER-A70QS50-14F
Mersen
Mersen A70QS High-Speed Cylindrical Semiconductor Fuse, 700V, Ferrule Mount (22F size)
Model: MER-A70QS-22F
Mersen
Mersen GW Series 125V Fast-Acting Screw-Mount Plug Fuse, 3A-15A
Model: MER-GW
Mersen

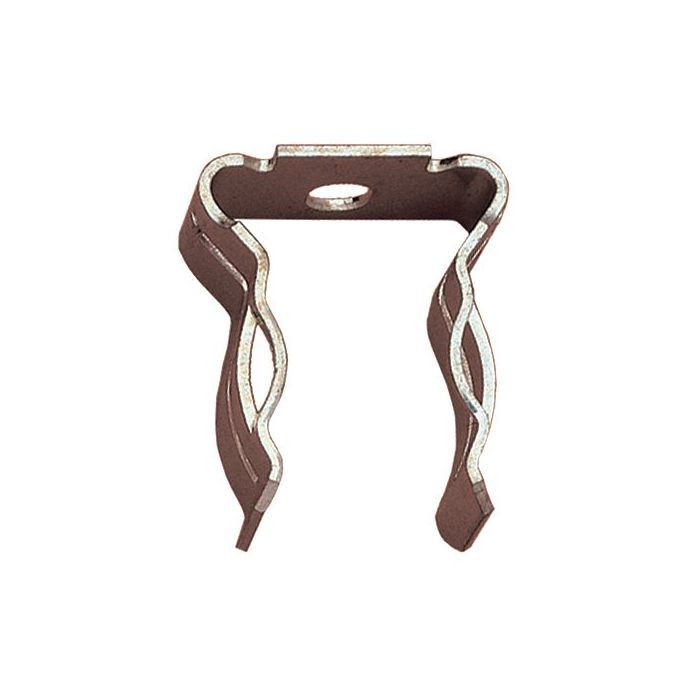

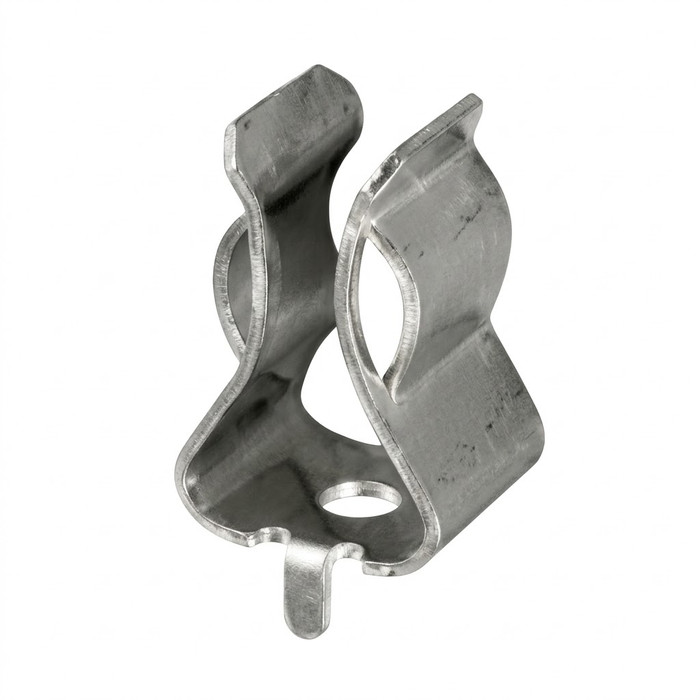

Mersen UL Cylindrical Fuse Clip, 13/16in Diameter, Direct Screw Mount
The Mersen UL Cylindrical Fuse Clip is engineered to hold cylindrical fuses with a 13/16in diameter, accommodating 30A or 60A fuse ratings for AC or DC circuits. Built from spring brass with a tin-plated finish, this clip mounts directly via screw for a space-saving, tight-contact connection that matches Mersen's full line of cylindrical fuses. It is designed for fast installation into fuse blocks, panels, and OEM equipment where reliable, low-resistance contact is essential.
Key Features
- Fuse Size: Designed for cylindrical fuses with a 13/16in diameter for a precise, secure fit.
- Durable Construction: Spring brass body with a tin-plated finish resists corrosion and maintains consistent electrical contact.
- Direct Screw Mount: Installs quickly to panels and fuse blocks, saving space in tight enclosures.
- Max Fuse Rating: Rated up to 60A, accepting either 30A or 60A cylindrical fuses depending on configuration.
- AC or DC Rated: Suitable for both AC and DC electrical systems.
- Tight Contact Design: Spring-tension construction provides a firm grip on the fuse body to reduce contact resistance.
- Packaging: Supplied in cartons of 50 EA for stocking fuse assembly lines and maintenance inventories.
Certifications & Compliance
- UL Design Details
Technical Specifications
- Design Details: UL
- AC or DC: AC/DC
- Installation Mounting: Direct Screw Mount
- Max Fuse Rating: 60 A
- Fuse Size: 13/16in
Typical Applications
- Industrial and Commercial Fuse Panels
- Fuse Block and Fuse Holder Assemblies
- OEM Electrical Equipment Manufacturing
- Panelboard and Switchgear Wiring
- Maintenance, Repair, and Retrofit Projects
Why Mersen?
Mersen backs this fuse clip with spring brass construction and a tin-plated finish built for dependable, low-resistance contact over repeated use. With UL design details and direct screw mounting, it is engineered to pair seamlessly with Mersen's cylindrical fuse lineup for code-compliant, professional electrical installations. Choose Mersen for consistent quality across its full range of fuse clips, blocks, and holders.
Manufacturer Resources
Mersen Product Catalog
Product Specs
- list_batch:
- MERSEN-20260825
- Product Type:
- Fuse Clip
- Product Material:
- Tin-Plated Spring Brass
- Connection Type:
- Direct Screw Mount
- Amperage Rating:
- 30A - 60A
- Listing:
- UL Listed
- Department:
- Electrical
- Product Group:
- Wiring Devices
- Product Subgroup:
- Fuse Holders & Blocks
