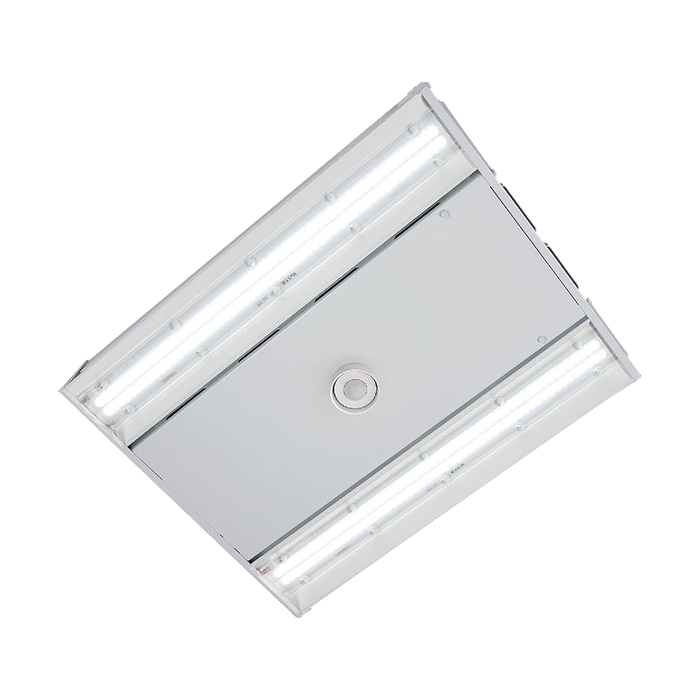

Eaton Metalux VHB LED High Bay Fixture, 100W, 120/277V

Eaton Metalux VHB LED High Bay Fixture, 100W, 120/277V

(No reviews yet) Write a Review

Model: VHBLED-LD1-18-W-UNV-L840-CD1-U

In Stock (leaves warehouse same day if ordered before 3pm ET)

$270.48
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton Metalux VHB LED High Bay Fixture, 100W, 120/277V

The Eaton Metalux VHB LED High Bay Fixture delivers efficient, high-output illumination for facilities with elevated ceilings. Engineered as an LED high bay luminaire, this fixture operates at a 100W wattage and is rated for 120/277V, making it a versatile choice for commercial and industrial spaces that demand dependable overhead lighting. Backed by Eaton's 5 year warranty, the Metalux VHB is built for long-term performance in demanding environments.

Key Features

  • LED Light Source: Solid-state LED lamp type for efficient, long-lasting illumination in high-ceiling applications.
  • Wattage: 100W LED output engineered to deliver strong, even light coverage across large open areas.
  • Voltage Rating: 120 / 277V input rating allows flexible integration into a range of commercial and industrial electrical systems.
  • High Bay Mounting: Purpose-built high bay mounting configuration suited to warehouses, gyms, and other tall-ceiling structures.
  • Warranty Coverage: Backed by a 5 year manufacturer warranty for added confidence in long-term reliability.

Technical Specifications

  • Lamp Type: LED
  • Product Type: Electrical Component
  • Department: Electrical

Typical Applications

  • Warehouse and Distribution Center Lighting
  • Manufacturing and Industrial Facilities
  • Gymnasiums and High-Ceiling Commercial Spaces
  • Retrofit of Legacy High Bay Fixtures
  • New Construction Overhead Lighting Installations

Why Eaton?

Eaton's Metalux line pairs LED efficiency with rugged high bay construction designed to keep large commercial and industrial spaces well lit. With a 100W, 120/277V rated design and a 5 year warranty, the Metalux VHB gives electrical professionals a dependable, code-compliant option for overhead lighting projects.

Manufacturer Resources

Spec Sheet

Product Specs

Voltage Rating:
120/277V
Mounting Method:
High Bay
Lamp Type:
LED
Product Wattage:
100W
Product Type:
High Bay & Low Bay
Department:
Electrical
Series:
Metalux VHB
Product Group:
Lighting
Product Subgroup:
Light Fixtures
Product Width:
17.5 in
Product Weight:
15 lb
Product Length:
22.5 in
Product Height:
6.125 in

Cooper Lighting VHBLED-LD1-18-W-UNV-L840-CD1-U – Frequently Asked Questions

1) Will the Eaton Metalux VHB LED high bay run on 277V, or do I need a separate model for 120V?
One model covers both. The Metalux VHB is a universal-voltage fixture rated 120/277V, so the same part number wires into a 120V single-phase circuit or a 277V lighting circuit off a 480/277V panel. That is the usual reason a facility standardizes on it: one fixture on the shelf for buildings with different service voltages.
2) Is a 100W LED high bay enough to replace the old 400W metal halide fixtures in my warehouse?
That is the common one-for-one swap. The Metalux VHB draws 100W at the fixture, and high bay LED luminaires in that wattage class are the standard replacement for legacy 400W HID high bays, which is why retrofit of existing high bay fixtures is a listed application. Check your mounting height and spacing before you assume a straight fixture-count match, because LED distribution differs from an HID reflector.
3) Can I put the Eaton Metalux VHB on a dimmer or a lighting control system?
The catalog number includes CD1, Eaton's continuous-dimming driver designation, so the fixture ships with a dimmable driver rather than a fixed-output one. That is what you need if the bays are going on occupancy sensors with high/low control or tied into a building lighting control panel. Run the low-voltage control pair to each fixture along with the line-voltage feed.
4) What model number do I order for the 100W Eaton Metalux VHB high bay?
The catalog number is VHBLED-LD1-18-W-UNV-L840-CD1-U. That string carries the build: UNV for universal 120/277V input, L840 for the color temperature/CRI code, and W for the white housing. Give the full string to your distributor, since the VHB family uses the same base designation across several lumen packages.
5) Is the Metalux VHB a high bay or can I use it over a lower ceiling?
It is built as a high bay luminaire and the mounting method is high bay, meant for elevated ceilings in warehouses, distribution centers, manufacturing floors, and gyms. For ceilings in the 10 to 14 foot range you want a low bay or a linear strip instead, since a high bay optic mounted too low gives you glare and hot spots rather than even coverage.
6) What color temperature does the Eaton VHB LED high bay produce?
The L840 code in the catalog number is Eaton's designation for 4000K at 80 CRI, a neutral white. That is the usual pick for warehouse and manufacturing space, where 5000K reads cooler and is more common in inspection or sports areas. If you are adding fixtures to a bay that already has 5000K units, expect a visible difference in tone.
7) Does the Metalux VHB high bay come with a hanging kit, or do I order mounting separately?
Plan on specifying the mounting hardware with the order. High bay luminaires of this type are hung from aircraft cable, chain, or a pendant stem depending on the deck, and the suspension method is a job condition rather than something fixed to the fixture. Confirm your deck attachment and the drop length before the fixtures land on site so the electricians are not waiting on hardware.
