Milbank 16"-32" Steel Pedestal...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$175.16

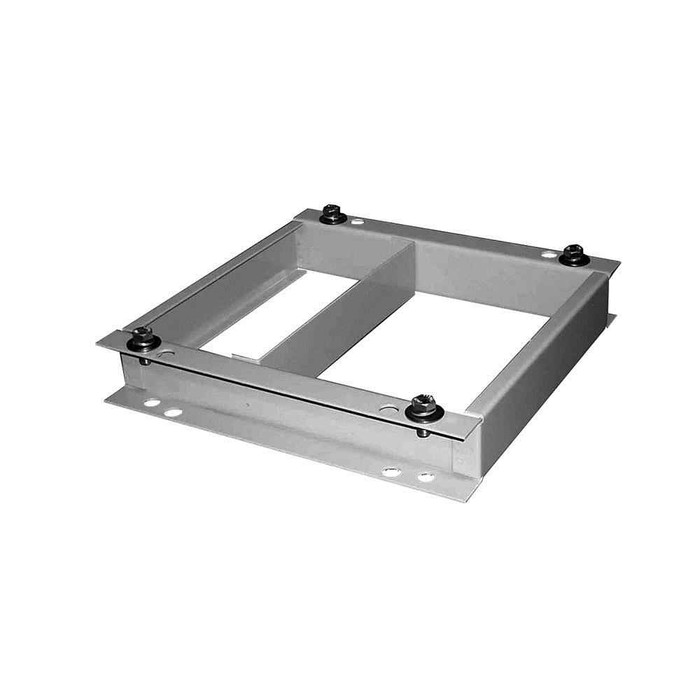

Milbank 16"-32" Pedestal Mounting Base

Milbank 16"-32" Steel Pedestal Mounting Base - ANSI 61 Gray Metering Accessory

(No reviews yet) Write a Review

Model: CP-16PDMNT-CALT

In Stock (leaves warehouse same day if ordered before 3pm ET)

$175.16
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 16"-32" Steel Pedestal Mounting Base - ANSI 61 Gray Metering Accessory

Professional mounting solution for electrical metering applications

The Milbank 16"-32" Steel Pedestal Mounting Base provides reliable foundation support for electrical metering installations. Constructed from durable steel with ANSI 61 Gray finish, this pad mount base delivers professional-grade stability and weather resistance for outdoor metering applications. The 3.25-inch height design accommodates various pedestal configurations while ensuring proper clearance and accessibility for service connections.

Professional Features & Benefits

  • 16"-32" Size Range: Accommodates multiple pedestal dimensions for versatile installation flexibility across different metering configurations.
  • Steel Construction: Provides exceptional durability and structural integrity to withstand environmental conditions and support equipment loads.
  • ANSI 61 Gray Finish: Professional standard coating delivers corrosion resistance and maintains appearance in outdoor installations.
  • 3.25-inch Height: Optimal elevation provides proper clearance while maintaining low profile for accessibility and code compliance.
  • Complete Mounting Hardware: Includes pad mount base and all necessary mounting hardware for streamlined installation process.
  • Metering Accessory Application: Specifically designed for electrical metering systems ensuring compatibility and professional performance.

Technical Specifications

  • Application: Metering Accessory
  • Brand Name: Milbank
  • Departent: Electrical
  • Insulation: None
  • Knockouts: FALSE
  • Mounting Accessories: Pad Mount Base and Mounting Hardware
  • Product Color: ANSI 61 Gray
  • Product Family Code: CPAC
  • Product Height: 3.25 IN
  • Product Material: Steel
  • Product Type: Pad Mount Base
  • Unspsc Number: 39121321

Professional Applications

  • Residential Electrical Metering Installations
  • Commercial Building Meter Pedestals
  • Multi-Unit Property Metering Systems
  • Industrial Facility Power Monitoring
  • Utility Service Connection Points
  • Outdoor Electrical Distribution Systems
  • Municipal Infrastructure Projects

Why Choose Milbank Quality?

Milbank delivers proven reliability in electrical infrastructure solutions with professional-grade steel construction and ANSI standard finishes. The complete mounting hardware package ensures proper installation while the durable materials provide long-term performance in demanding outdoor environments.

Manufacturer Resources

Product Specs

Application:
Metering Accessory
Brand Name:
Milbank
Knockouts:
FALSE
Mounting Accessories:
Pad Mount Base and Mounting Hardware
Product Family Code:
CPAC
Product Height:
3.25 IN
Product Type:
Meter Socket Accessory
Unspsc Number:
39121321
Product Color:
ANSI 61 Grey
Product Material:
Steel
Department:
Electrical
Product Subgroup:
Metering & Meter Sockets
Product Details:
Pad Mount Base
Product Group:
Power Distribution

Milbank CP-16PDMNT-CALT – Frequently Asked Questions

1) What size Milbank pedestal mounting base do I need for my meter pedestal?
The Milbank pad mount base comes in three widths, 16 inch, 24 inch and 32 inch, and you match the base to the width of the pedestal enclosure it carries. The order numbers are CP-16PDMNT-CALT for 16 inch, CP-24PDMNT-CALT for 24 inch and CP-32PDMNT for 32 inch. Measure the pedestal cabinet first; the base is not adjustable between sizes.
2) How much height does the Milbank pad mount base add to a meter pedestal installation?
It adds 3.25 inches. That is the overall height of the steel base, so figure your pedestal's finished elevation above the concrete pad as the cabinet height plus 3.25 inches. Worth checking against meter center height requirements before you pour.
3) Does the Milbank pedestal mounting base have knockouts for conduit entry?
No knockouts. The base ships without any pre-punched openings, so conduit and conductor routing is handled through the pedestal enclosure and the pad opening rather than through the base itself. Plan your stub-ups accordingly.
4) Does the Milbank pedestal mounting base come with mounting hardware or do I have to buy it separately?
Hardware is included. The package is the pad mount base plus the mounting hardware needed to set it, so there is no separate fastener kit to add to the order.
5) Will the Milbank pad mount base hold up outdoors on a concrete pad?
It is steel with an ANSI 61 gray finish, the standard gray coating used across utility metering and distribution equipment, so it is built for outdoor pad-mounted service. The gray also matches typical Milbank meter sockets and pedestal cabinets, which matters if you are standardizing look across multiple units on a property.
6) What is this Milbank pad mount base actually for, a meter socket or a full pedestal?
It is a foundation piece for electrical metering equipment, used under pedestal-style metering cabinets to set them on a pad and give clearance for service connections underneath. It is not a meter socket and contains no electrical components or insulation, it is purely the mounting base.
7) Can I use the same Milbank mounting base across a multi-unit property with different pedestal sizes?
You can standardize on the family but not on one part number. The base is offered in 16, 24 and 32 inch widths under the CPAC family, all in the same ANSI 61 gray steel, so the finish and hardware approach stay consistent across a site while each pedestal gets the base that matches its width.
8) What UNSPSC code should I use for a Milbank pad mount metering base on a government purchase order?
UNSPSC 39121321 covers it. That is the classification carried for the Milbank steel pedestal pad mount base, which is what most agency and institutional procurement systems want on the line item.
