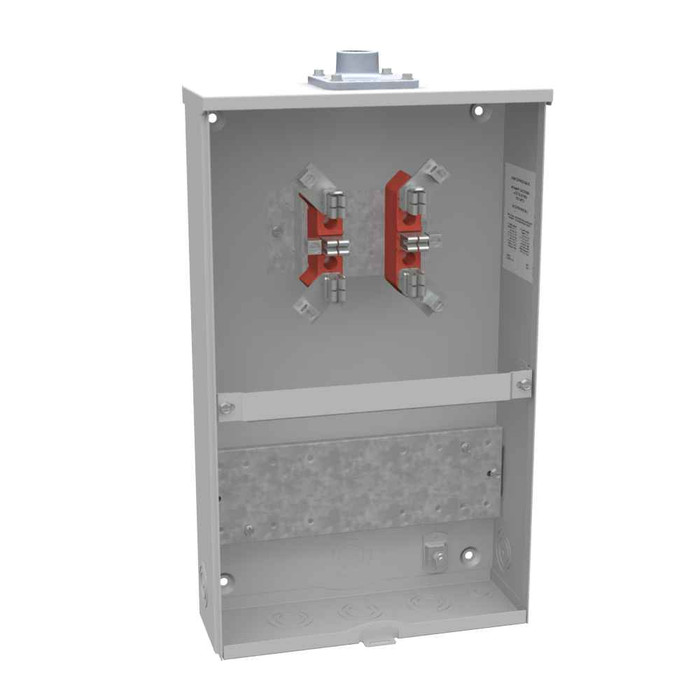

Milbank 20A Single Position Meter Socket with 1-Inch Hub and Test Switch Provisions

Milbank 20A Single Position Meter Socket with 1-Inch Hub and Test Switch Provisions

Professional electrical metering solution with versatile installation options

The Milbank 20A Single Position Meter Socket delivers reliable electrical metering for residential and light commercial applications. Featuring a durable G90 galvanized steel construction with powder coat finish and Type 3R rating, this surface-mount meter socket accommodates both overhead and underground cable entry through its 1-inch hub configuration. The unit includes test switch provisions for convenient maintenance and service operations.

Professional Features & Benefits

• 20 Continuous Ampere Rating: Provides adequate capacity for residential and light commercial electrical service metering applications.
• Type 3R Enclosure Rating: Weather-resistant construction protects internal components from rain, sleet, and ice formation for reliable outdoor installation.
• G90 Galvanized Steel with Powder Coat Finish: Superior corrosion resistance and durability ensure long-term performance in various environmental conditions.
• 1-Inch Hub Configuration: Accommodates standard conduit connections for both overhead and underground cable entry methods.
• Test Switch Provisions: Built-in test switch capability enables safe meter testing and maintenance without service interruption.
• UL Listed Certification: Meets rigorous safety and performance standards for professional electrical installations.
• Single Mechanical Terminals: Reliable connection system accommodates 12-10 AWG wire range for both line and load side connections.

Technical Specifications

• Amperage Rating: 20 Continuous Ampere
• Application: Meter Socket
• Brand Name: Milbank
• Cable Entry: Overhead or Underground
• Departent: Electrical
• Equipment Ground: Ground Lug
• Frequency Rating: 60 Hertz
• Hub Closing Plate: 1 Inch Hub
• Insulation: Glass Polyester
• Line Side Wire Range: 12 - 10 AWG
• Load Side Wire Range: 12 - 10 AWG
• Main Breaker Size: No Main Breaker
• Number Of Main Breakers: 0
• Number Of Meter Positions: 1 Position
• Number Of Receptacles: 0
• Product Family Code: CT20
• Product Material: G90 Galvanized Steel with Powder Coat Finish
• Product Mounting: Surface Mount
• Standard: UL Listed;Type 3R
• Terminal: Single Mechanical
• Unspsc Number: 39121102
• Voltage Rating: 600 Volts Alternating Current

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential electrical service metering
• Light commercial facility power monitoring
• Multi-unit residential properties
• Small office and retail establishments
• Temporary service installations
• Electrical service upgrades and replacements

Why Choose Milbank Quality?

Milbank meter sockets provide dependable electrical metering solutions backed by UL Listed certification and Type 3R weather-resistant construction. The combination of galvanized steel durability with powder coat finish ensures reliable long-term performance in demanding outdoor environments, making this meter socket an ideal choice for professional electrical installations.
