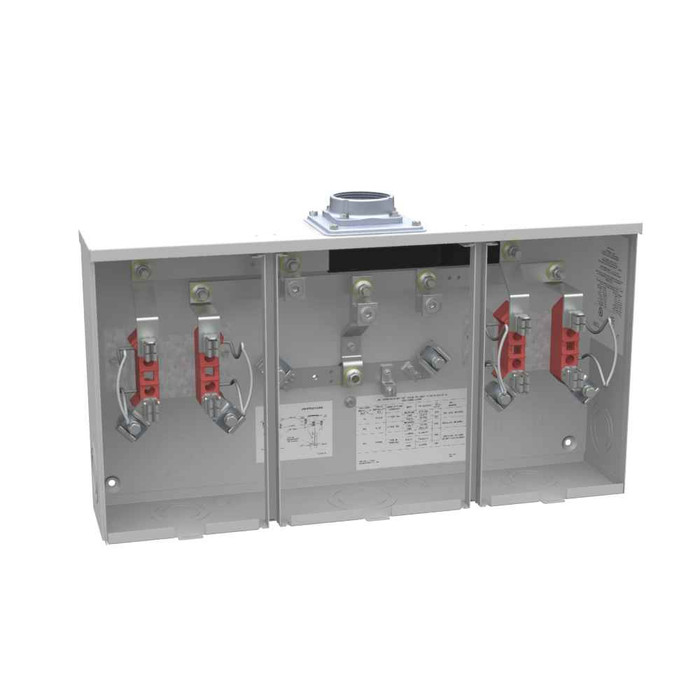

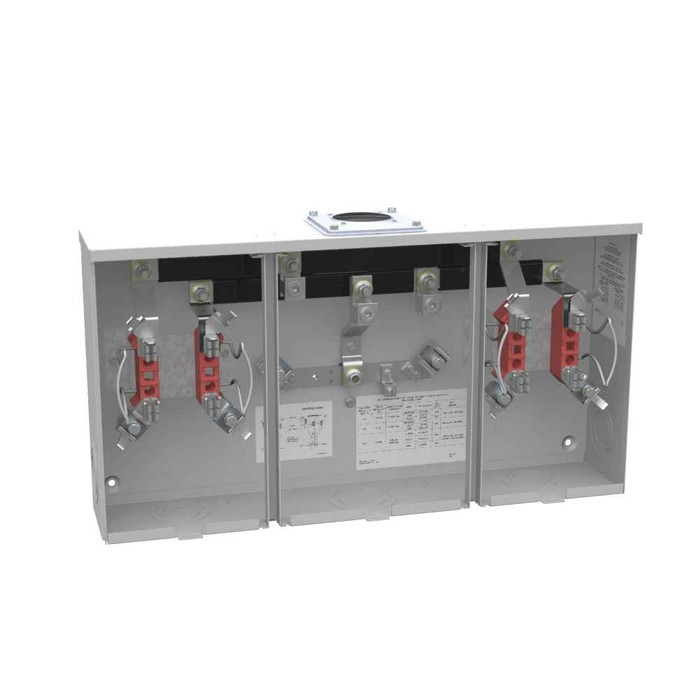

Milbank 200 Amp 1 Phase Ringless Meter Socket 2 Position with Large to Small Hub Adapter

Milbank 200 Amp 1 Phase Ringless Meter Socket 2 Position with Large to Small Hub Adapter

Professional dual-position metering solution with versatile hub configuration

The Milbank 200 Amp 1 Phase Ringless Meter Socket delivers reliable dual-position metering with 4 terminal configuration and large to small hub adapter capability. Constructed with G90 galvanized steel and powder coat finish in a Type 3R enclosure, this surface mount meter socket accommodates overhead or underground cable entry with center wireway for versatile installation applications.

Professional Features & Benefits

• 200 Continuous Ampere Rating: Provides robust capacity for residential and light commercial dual metering applications with reliable current handling.
• 2 Position Configuration: Enables dual meter installation for duplex units, multi-tenant properties, or separate service monitoring requirements.
• Ringless Design: Eliminates the need for meter rings, simplifying installation and reducing connection points for enhanced reliability.
• Type 3R Enclosure: Weather-resistant construction protects internal components from rain, sleet, and ice formation for outdoor installations.
• G90 Galvanized Steel Construction: Corrosion-resistant material with powder coat finish ensures long-term durability in harsh environmental conditions.
• Flexible Cable Entry: Accommodates both overhead and underground service connections with center wireway for organized conductor routing.
• UL Listed Certification: Meets rigorous safety and performance standards for code compliance and professional installation confidence.

Technical Specifications

• Amperage Rating: 200 Continuous Ampere
• Application: Meter Socket
• Brand Name: Milbank
• Cable Entry: Overhead or Underground with Center Wireway
• Departent: Electrical
• Equipment Ground: Ground Lug
• Frequency Rating: 60 Hertz
• Insulation: Glass Polyester
• Line Side Wire Range: 6 AWG - 350 kcmil
• Load Side Wire Range: 6 AWG - 350 kcmil
• Main Breaker Size: No Main Breaker
• Number Of Jaws: 4 Terminal
• Number Of Main Breakers: 0
• Number Of Meter Positions: 2 Positions
• Number Of Receptacles: 0
• Phase: 1 Phase
• Product Family Code: G200
• Product Height: 14 IN
• Product Length: 5.125 IN
• Product Material: G90 Galvanized Steel with Powder Coat Finish
• Product Mounting: Surface Mount
• Product Size: 5.125L x 26.5W x14H
• Product Type: Ringless Meter Socket
• Standard: UL Listed;Type 3R
• Unspsc Number: 39121102
• Voltage Rating: 300 Volts Alternating Current
• Width: 26.5 IN

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Duplex residential properties requiring separate metering
• Multi-unit residential buildings with individual tenant billing
• Commercial facilities with dual service monitoring needs
• Property management applications requiring separate utility tracking
• Retrofit installations upgrading from single to dual metering
• New construction projects with dual occupancy requirements

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather-resistant construction. The G90 galvanized steel with powder coat finish ensures long-term performance in demanding outdoor environments, while the comprehensive wire range compatibility from 6 AWG to 350 kcmil provides installation flexibility for diverse electrical service requirements.
