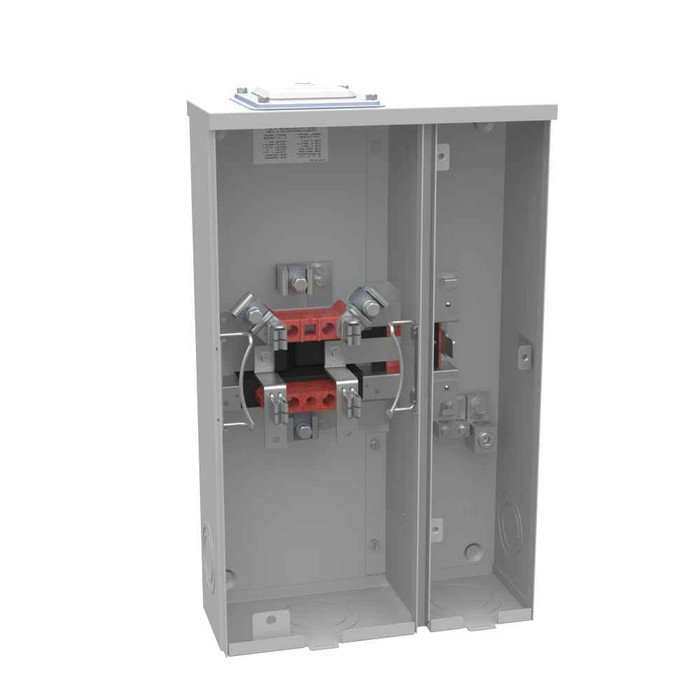

Milbank U2288-RXL 4 Terminal Ringless Large Hub Open Adapt To Small Closing Plate 1-main Breaker Provision

Milbank 200A 1-Phase Ringless Meter Socket with Large Hub Opening Adapted to Small Closing Plate

(No reviews yet) Write a Review

Model: U2288-RXL

In Stock (leaves warehouse same day if ordered before 3pm ET)

$779.26
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 200A 1-Phase Ringless Meter Socket with Large Hub Opening Adapted to Small Closing Plate

Professional electrical metering solution with versatile hub configuration

The Milbank 200A 1-Phase Ringless Meter Socket delivers reliable electrical metering with a continuous 200 ampere rating and up to 240 volts AC capacity. Constructed with G90 galvanized steel and powder coat finish, this UL Listed Type 3R unit features a unique large hub opening adapted to small closing plate design for flexible installation requirements. The 4-terminal configuration with lay-in terminals accommodates overhead or underground cable entry with 6 AWG to 350 kcmil wire range capability.

Professional Features & Benefits

  • 200 Continuous Ampere Rating: Provides robust electrical capacity for residential and light commercial applications with reliable current handling.
  • 1-Phase 240V AC Operation: Compatible with standard single-phase electrical systems for versatile installation applications.
  • G90 Galvanized Steel Construction: Delivers superior corrosion resistance and long-term durability in outdoor environments.
  • UL Listed Type 3R Enclosure: Ensures safety compliance and weather protection for outdoor installations with professional certification.
  • Large Hub to Small Closing Plate Adaptation: Offers installation flexibility for various conduit configurations and connection requirements.
  • 4-Terminal Ringless Design: Simplifies meter installation and maintenance with secure lay-in terminal connections.
  • Overhead/Underground Cable Entry: Accommodates diverse installation methods with 6 AWG to 350 kcmil wire capacity.

Technical Specifications

  • Amperage Rating: 200 Continuous Ampere
  • Application: Meter Socket With Main
  • Brand Name: Milbank
  • Bypass Provision: No Bypass
  • Cable Entry: Overhead or Underground
  • Departent: Electrical
  • Equipment Ground: 2 Barrel Ground Lug
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Large Hub Opening Adapted to Small Closing Plate
  • Insulation: Glass Polyester
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Main Breaker Size: No Main Breaker
  • Number Of Jaws: 4 Terminal
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: MTMN
  • Product Height: 21 IN
  • Product Length: 4.844 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 4.844L x 13W x21H
  • Product Type: Ringless Meter Socket
  • Standard: UL Listed;Type 3R
  • Terminal: Lay in
  • Unspsc Number: 39121102
  • Voltage Rating: Up to 240 Volts Alternating Current
  • Width: 13 IN

Professional Applications

  • Residential electrical service installations requiring 200A capacity
  • Small commercial facilities with single-phase power requirements
  • Multi-unit residential properties with individual metering needs
  • Retrofit installations requiring flexible hub configurations
  • Outdoor electrical service applications requiring Type 3R protection
  • Professional electrical contractor installations with overhead or underground feeds

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather protection. The G90 galvanized steel construction with powder coat finish ensures long-term durability in demanding outdoor environments, while the professional-grade glass polyester insulation and 2 barrel ground lug configuration provide safe, code-compliant electrical service for years of dependable operation.

Manufacturer Resources

Product Specs

Amperage Rating:
200 Continuous Ampere
Application:
Meter Socket With Main
Brand Name:
Milbank
Bypass Provision:
No Bypass
Cable Entry:
Overhead or Underground
Equipment Ground:
2 Barrel Ground Lug
Frequency Rating:
60 Hertz
Hub Closing Plate:
Large Hub Opening Adapted to Small Closing Plate
Insulation:
Glass Polyester
Line Side Wire Range:
6 AWG - 350 kcmil
Main Breaker Size:
No Main Breaker
Number Of Jaws:
4 Terminal
Number Of Main Breakers:
0
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
MTMN
Product Height:
21 IN
Product Length:
4.844 IN
Product Size:
4.844L x 13W x21H
Product Type:
Ringless Meter Socket
Standards:
UL Listed;Type 3R
Terminal:
Lay in
Unspsc Number:
39121102
Voltage Rating:
Up to 240 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
200
Product Width:
13 IN
Department:
Electrical
Product Subgroup:
Metering & Meter Sockets
Product Group:
Power Distribution

Milbank U2288-RXL – Frequently Asked Questions

1) Does the Milbank U2288-RXL meter socket come with a main breaker, or do I need to add one?
No main breaker ships with the U2288-RXL. It is built with zero main breakers and no bypass provision, so the overcurrent device has to live downstream in the panel or in a separate disconnect. The images show it as a main breaker provision socket, meaning the space exists but the breaker is not part of the unit.
2) What size service conductors will fit the Milbank 200A ringless socket?
Line side terminals take 6 AWG up to 350 kcmil, and they are lay-in type, so you drop the conductor in rather than threading it through a closed barrel. That range covers typical 200A copper or aluminum service entrance cable. Grounding is handled by two barrel ground lugs.
3) Will a 4-terminal ringless socket work for my single-phase 240V residential service?
Yes. The U2288-RXL is a 4-terminal, single-position socket rated 200 continuous amps, 1 phase, up to 240 volts AC at 60 Hz. That is the standard configuration for single-phase residential and light commercial service. For three-phase service you need a 7-jaw socket instead.
4) Is this meter socket rated for outdoor mounting on an exterior wall?
Yes, it is UL Listed and Type 3R, which is the rainproof outdoor rating used for exterior service equipment. The enclosure is G90 galvanized steel with a powder coat finish, and internal insulation is glass polyester.
5) What does "large hub opening adapted to small closing plate" actually mean on a meter socket?
The can is punched with the large hub opening, and a small closing plate is fitted to it. Practically, that lets you blank the opening off or step down to a smaller hub fitting instead of being locked into the large size, which is why this version gets used on retrofits where the existing conduit or utility hub does not match the big punch.
6) Can this Milbank socket be used for an underground service lateral, or is it overhead only?
Both. Cable entry is rated for overhead or underground feeds, so the same socket works for an aerial drop or a lateral coming up from below. It mounts to the surface of the wall.
7) How much wall space do I need for the Milbank U2288-RXL?
Plan for 4.844 x 13 x 21 inches overall (listed as 4.844L x 13W x 21H). It is a surface mount can, so that footprint sits proud of the wall with the 4.844 inch dimension as depth off the mounting surface.
8) Ringless versus ring-type meter socket, which one does my utility require?
That is a utility call, not a product call. Ringless cans like the U2288-RXL use a sealing cover that slides over the socket and is sealed by the utility, with no separate retaining ring. Many utilities specify one style exclusively, so confirm with the serving utility before you order, because a ringless can will not accept a ring-type cover.
9) Does the U2288-RXL have a meter bypass for pulling the meter under load?
No bypass is provided. If your utility or your maintenance plan requires a lever or horn bypass so the meter can be removed without dropping the load, you need a socket ordered with a bypass provision instead of this one.
10) Can I feed more than one apartment from this Milbank socket?
No. It is a single meter position, one socket, one account. For individually metered multi-unit buildings you need either one of these per unit or a multi-position meter stack.
11) What is the exact part number to order this Milbank 200A ringless socket?
Milbank U2288-RXL. One configuration only: 4 terminal, ringless, large hub opening adapted to small closing plate, 200A single phase.
