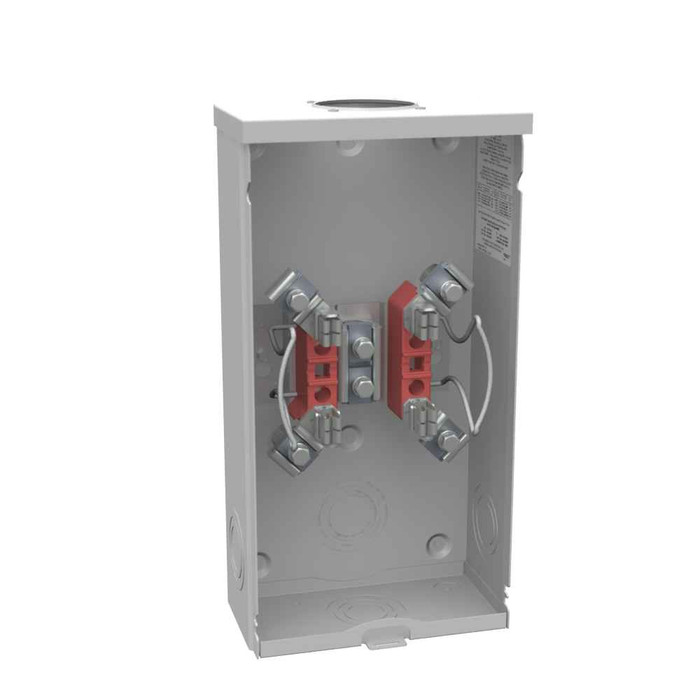

Milbank U1060-RL 4 Terminal Ringless Meter Socket Small Hub Open Tall Shell

Milbank 200A 1-Phase Ringless Meter Socket with Small Hub Opening and Tall Shell

(No reviews yet) Write a Review

Model: U1060-RL

In Stock (leaves warehouse same day if ordered before 3pm ET)

$212.66
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 200A 1-Phase Ringless Meter Socket with Small Hub Opening and Tall Shell

Professional electrical metering solution for residential and commercial applications

The Milbank 200A 1-Phase Ringless Meter Socket delivers reliable electrical metering with professional-grade construction. Featuring a durable G90 galvanized steel enclosure with powder coat finish and Type 3R rating for outdoor applications, this surface-mount meter socket accommodates 6 AWG to 350 kcmil conductors on both line and load sides. The 4-terminal design with lay-in terminals and glass polyester insulation ensures secure connections and long-term performance in single-phase 600V AC applications.

Professional Features & Benefits

  • 200 Continuous Ampere Rating: Handles substantial electrical loads for residential and light commercial applications with reliable current capacity.
  • Type 3R Enclosure Rating: Weather-resistant construction protects internal components from rain, sleet, and outdoor environmental conditions.
  • G90 Galvanized Steel Construction: Corrosion-resistant material with powder coat finish provides long-lasting durability and professional appearance.
  • Ringless Design: Eliminates the need for meter rings, simplifying installation and reducing potential connection points for enhanced reliability.
  • 6 AWG - 350 kcmil Wire Range: Accommodates a wide range of conductor sizes for flexible installation options and load requirements.
  • UL Listed Certification: Meets rigorous safety standards for electrical equipment, ensuring code compliance and professional installation confidence.
  • Glass Polyester Insulation: High-quality insulation material provides excellent electrical isolation and thermal performance.

Technical Specifications

  • Amperage Rating: 200 Continuous Ampere
  • Application: Meter Socket
  • Brand Name: Milbank
  • Bypass Provision: No Bypass
  • Cable Entry: Overhead
  • Departent: Electrical
  • Equipment Ground: Bonded Neutral
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Small Hub Opening
  • Insulation: Glass Polyester
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Load Side Wire Range: 6 AWG - 350 kcmil
  • Main Breaker Size: No Main Breaker
  • Number Of Jaws: 4 Terminal
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: 4T20
  • Product Height: 15.5 IN
  • Product Length: 4.125 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 4.125L x 8W x15.5H
  • Product Type: Ringless Meter Socket
  • Standard: UL Listed;Type 3R
  • Terminal: Lay in
  • Unspsc Number: 39121102
  • Voltage Rating: 600 Volts Alternating Current
  • Width: 8 IN

Professional Applications

  • Residential electrical service metering installations
  • Small commercial and retail facility power monitoring
  • Multi-unit residential properties requiring individual metering
  • Professional office buildings and service centers
  • Light industrial facilities with single-phase power requirements
  • Utility company approved metering applications

Why Choose Milbank Quality?

Milbank meter sockets provide dependable electrical metering solutions with UL Listed certification and Type 3R weather-resistant construction. The combination of galvanized steel durability, powder coat finish, and professional-grade components ensures long-term reliability in demanding electrical applications.

Manufacturer Resources

Product Specs

Amperage Rating:
200 Continuous Ampere
Application:
Meter Socket
Brand Name:
Milbank
Bypass Provision:
No Bypass
Cable Entry:
Overhead
Equipment Ground:
Bonded Neutral
Frequency Rating:
60 Hertz
Hub Closing Plate:
Small Hub Opening
Insulation:
Glass Polyester
Line Side Wire Range:
6 AWG - 350 kcmil
Load Side Wire Range:
6 AWG - 350 kcmil
Main Breaker Size:
No Main Breaker
Number Of Jaws:
4 Terminal
Number Of Main Breakers:
0
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
4T20
Product Height:
15.5 IN
Product Length:
4.125 IN
Product Size:
4.125L x 8W x15.5H
Product Type:
Ringless Meter Socket
Standards:
UL Listed;Type 3R
Terminal:
Lay in
Unspsc Number:
39121102
Voltage Rating:
600 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
200
Product Width:
8 IN
Department:
Electrical
Product Subgroup:
Electrical
Product Group:
Metering & Service Entrance

Milbank U1060-RL – Frequently Asked Questions

1) Will the Milbank U1060-RL meter socket work for a 200A single-phase residential service?
That's exactly what the U1060-RL is built for. It's a 200 continuous amp, single-phase, 4-terminal (4-jaw) ringless socket rated 600V AC, 60 Hz, with one meter position. Standard 120/240V single-phase residential and light commercial services use a 4-jaw socket, so this is the normal fit for a 200A house or small shop service. There's no main breaker in it, so you still need a separate service disconnect or main panel downstream.
2) Is this meter socket for overhead or underground service entrance?
Overhead. The U1060-RL is configured for overhead cable entry, with a small hub opening in the top for the service mast conduit. If you're feeding the meter from an underground lateral, you want a socket built for bottom/underground entry instead, not this one.
3) What size conductors can I land in the Milbank U1060-RL?
Both line and load sides take 6 AWG through 350 kcmil, using lay-in terminals so you drop the conductor in rather than threading it through a lug barrel. That range covers the usual 4/0 aluminum or 2/0 copper used on a 200A dwelling service with room to go larger if your run length calls for upsizing.
4) Can the Milbank U1060-RL be mounted outdoors on an exterior wall?
Yes. It's a Type 3R enclosure, UL Listed, in G90 galvanized steel with a powder coat finish, so it's rated for outdoor rain and sleet exposure. It's surface mount, so it lands flat on the wall or a backer board rather than recessing into the framing.
5) Does this socket have a meter bypass so power stays on when the meter is pulled?
No bypass on the U1060-RL. Pull the meter and the service is dead downstream. If your utility or your customer needs the load kept live during meter work, or the utility requires bypass on that service, you need a horn-bypass or lever-bypass socket instead of this one.
6) Do I need a separate main breaker with the Milbank U1060-RL?
Yes. This is a plain meter socket, not a meter-main: zero main breakers, no breaker spaces, and no receptacles in the can. Load conductors leave the socket and go to a service disconnect or main breaker panel. If you'd rather combine the two in one enclosure, look at a meter-main combination unit instead.
7) What does ringless mean on a meter socket, and does my utility allow it?
Ringless means the cover slides over the socket and locks without a separate sealing ring around the meter; the utility seals the cover itself. It's a simpler install with fewer parts to lose. Utilities specify one or the other, though, and some territories require ring-type sockets, so check your serving utility's approved meter equipment list before you set the U1060-RL.
8) How much wall space do I need for this Milbank 200A socket?
The tall-shell U1060-RL measures 4.125 x 8 x 15.5 inches, with height listed at 15.5 inches, width 8 inches and depth 4.125 inches. Lay that out before you set the mast so you have clearance above for the hub and conduit and below for the load conductors heading to the disconnect.
9) Is the neutral bonded in this Milbank meter socket?
It ships with a bonded neutral, which is what you want at the service point where the grounded conductor and the grounding electrode system are tied together. Downstream of the service disconnect, neutrals and grounds must stay separated.
10) Can I use this Milbank socket on a three-phase service?
No. The U1060-RL is single phase only, with a 4-jaw socket. Three-phase metering needs a 7-jaw socket and a device rated for that service, so this one won't accept the utility's three-phase meter.
11) What is the exact part number to order this Milbank 200A ringless socket?
Milbank U1060-RL. It's the 4-terminal, 200A, single-phase ringless socket with the small hub opening and tall shell, family code 4T20.
12) What insulation is used behind the jaws in this meter socket?
Glass polyester supports the terminals. It holds up to heat and tracking better than plain thermoplastic, which matters on a 200A service that runs loaded for long periods in an outdoor can.
