Milbank 200A 1-Phase Ringless ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$427.90

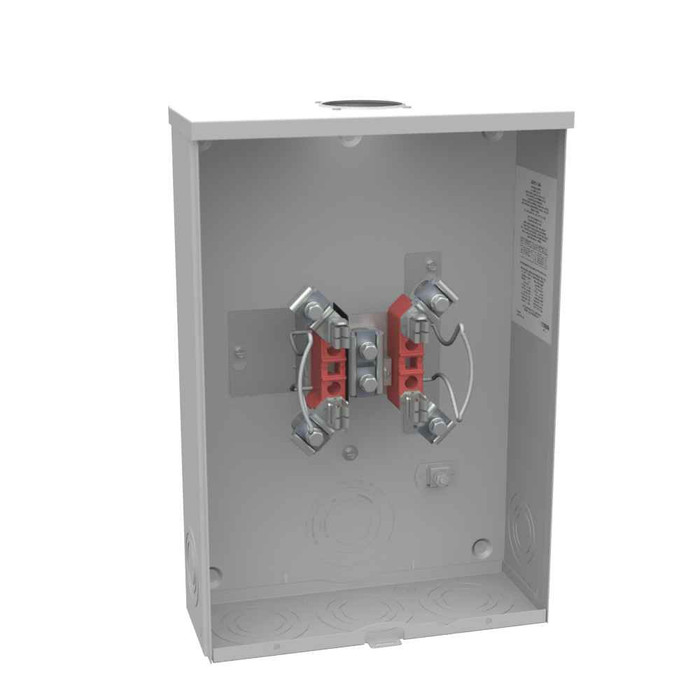

Milbank U3914-RL-TG 4 Terminal Ringless Small Hub Open Triplex Ground Welded Ground Stud

Milbank 200A 1-Phase Ringless Meter Socket with Triplex Ground and Small Hub Opening (2)

(No reviews yet) Write a Review

Model: U3914-RL-TG

In Stock (leaves warehouse same day if ordered before 3pm ET)

$427.90
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 200A 1-Phase Ringless Meter Socket with Triplex Ground and Small Hub Opening

Professional electrical metering solution for residential and commercial applications

The Milbank 200A 1-Phase Ringless Meter Socket delivers reliable electrical metering with triplex ground configuration and small hub opening design. Constructed with G90 galvanized steel and powder coat finish, this UL Listed Type 3R enclosure provides durable performance for overhead or underground cable entry applications. The 4-terminal lay-in design accommodates 6 AWG to 350 kcmil wire ranges on both line and load sides.

Professional Features & Benefits

  • 200 Continuous Ampere Rating: Provides robust capacity for residential and light commercial electrical service requirements.
  • 1-Phase 600V AC Configuration: Compatible with standard single-phase electrical systems for versatile installation applications.
  • G90 Galvanized Steel Construction: Delivers superior corrosion resistance and long-term durability in outdoor environments.
  • UL Listed Type 3R Enclosure: Ensures code compliance and weather protection for reliable outdoor installation performance.
  • Triplex Ground Design: Provides enhanced grounding capability for improved electrical safety and system integrity.
  • Overhead/Underground Cable Entry: Offers flexible installation options to accommodate various service entrance configurations.
  • 4-Terminal Ringless Design: Simplifies meter installation and maintenance with lay-in terminal configuration.

Technical Specifications

  • Amperage Rating: 200 Continuous Ampere
  • Application: Meter Socket
  • Brand Name: Milbank
  • Bypass Provision: No Bypass
  • Cable Entry: Overhead or Underground
  • Departent: Electrical
  • Equipment Ground: Triplex Ground
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Small Hub Opening
  • Insulation: Glass Polyester
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Load Side Wire Range: 6 AWG - 350 kcmil
  • Main Breaker Size: No Main Breaker
  • Number Of Jaws: 4 Terminal
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: 4T20
  • Product Height: 19 IN
  • Product Length: 4.844 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 4.844L x 13W x19H
  • Product Type: Ringless Meter Socket
  • Standard: UL Listed;Type 3R
  • Terminal: Lay in
  • Unspsc Number: 39121102
  • Voltage Rating: 600 Volts Alternating Current
  • Width: 13 IN

Professional Applications

  • Residential Service Entrance Metering
  • Small Commercial Building Electrical Service
  • Multi-Unit Residential Properties
  • Professional Office Buildings
  • Retail Establishments
  • Light Industrial Facilities
  • Municipal and Institutional Buildings

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather protection rating. The G90 galvanized steel construction with powder coat finish ensures long-term durability and corrosion resistance for dependable electrical metering performance in demanding outdoor environments.

Manufacturer Resources

Product Specs

Amperage Rating:
200 Continuous Ampere
Application:
Meter Socket
Brand Name:
Milbank
Bypass Provision:
No Bypass
Cable Entry:
Overhead or Underground
Equipment Ground:
Triplex Ground
Frequency Rating:
60 Hertz
Hub Closing Plate:
Small Hub Opening
Insulation:
Glass Polyester
Line Side Wire Range:
6 AWG - 350 kcmil
Load Side Wire Range:
6 AWG - 350 kcmil
Main Breaker Size:
No Main Breaker
Number Of Jaws:
4 Terminal
Number Of Main Breakers:
0
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
4T20
Product Height:
19 IN
Product Length:
4.844 IN
Product Size:
4.844L x 13W x19H
Product Type:
Ringless Meter Socket
Standards:
UL Listed;Type 3R
Terminal:
Lay in
Unspsc Number:
39121102
Voltage Rating:
600 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
200
Product Width:
13 IN
Department:
Electrical
Product Subgroup:
Metering & Meter Sockets
Product Group:
Power Distribution

Milbank U3914-RL-TG – Frequently Asked Questions

1) Will the Milbank U3914-RL-TG meter socket work for a 200 amp single-phase residential service?
Yes. The U3914-RL-TG is rated 200 continuous amperes, 1 phase, 600V AC, 60 Hz, with one meter position and a 4-terminal jaw configuration, which is the standard arrangement for single-phase 120/240V residential and light commercial service. There is no main breaker and no bypass in this can, so the service disconnect has to be provided separately downstream.
2) What size service entrance conductors will fit the lugs on this Milbank 200A ringless socket?
Both line and load terminals on the U3914-RL-TG accept 6 AWG through 350 kcmil, and they are lay-in type terminals, so you drop the conductor in rather than threading it through a closed lug. That range covers the usual 4/0 aluminum or 2/0 copper used on a 200 amp dwelling service as well as oversized 350 kcmil runs.
3) Can this meter socket be used for an underground service lateral, or is it overhead only?
Either one. Cable entry on the U3914-RL-TG is rated for overhead or underground, and it ships with a small hub opening in the top for an overhead weatherhead conduit connection. For an underground lateral you bring the conductors up through the bottom and the hub opening stays closed off.
4) Is this Milbank meter socket rated for outdoor mounting on an exterior wall?
Yes. The U3914-RL-TG is UL Listed with a Type 3R enclosure rating, which covers rain, sleet and snow for outdoor use. The body is G90 galvanized steel with a powder coat finish for corrosion resistance. Type 3R is not a washdown or hosedown rating, so it is not the can for a pressure-wash bay or submerged location.
5) Does this socket include a main breaker or a meter bypass lever?
No to both. The U3914-RL-TG is a plain meter socket: zero main breakers, no breaker provision, and no bypass. If your utility requires a horn bypass for hot meter changes, or if you want a combination meter-main, this is not the unit, and you will need a socket ordered with a bypass provision or a meter-main combination enclosure instead.
6) Is a ringless meter socket the right choice, or do I need a ring-type can?
That is decided by the serving utility, not by the installation. A ringless can like the U3914-RL-TG uses a removable sealing cover over the socket instead of a separate locking ring, and the meter lays into the 4-terminal jaws behind that cover. Utilities that specify ring-type will not accept a ringless can and the reverse is also true, so pull the utility's approved meter socket list before ordering.
7) What does the triplex ground on this Milbank socket mean for how I bond the enclosure?
The U3914-RL-TG is built with a triplex ground, which is a welded ground stud in the can for landing the triplex service drop's bare messenger or the grounding electrode conductor. There is no bonded neutral bar option on this unit, and there are no receptacles in the enclosure. Glass polyester insulation isolates the live terminals from the steel back pan.
