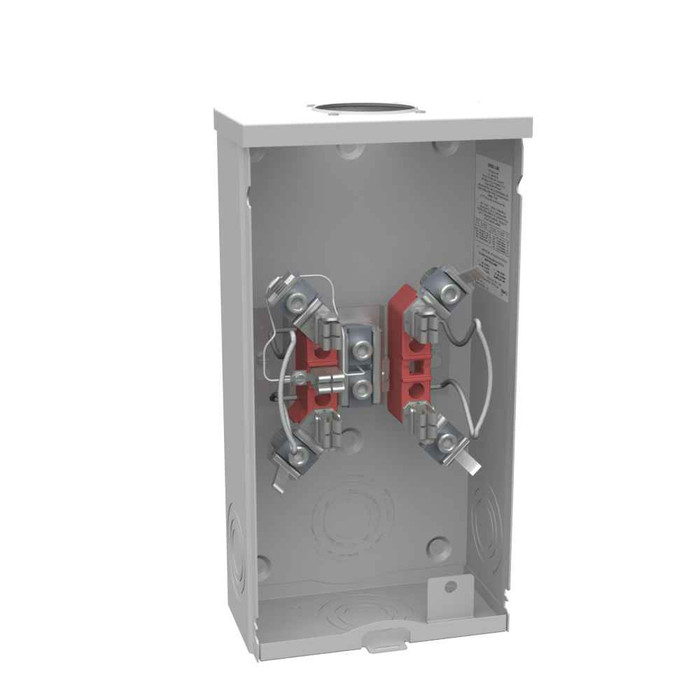

Milbank 200A 1-Phase Ringless Meter Socket with Horn Bypass and Triplex Ground

Milbank 200A 1-Phase Ringless Meter Socket with Horn Bypass and Triplex Ground

Professional electrical metering solution with horn bypass provision

The Milbank 200A 1-Phase Ringless Meter Socket delivers reliable electrical metering performance with professional horn bypass capability and triplex ground configuration. Constructed with G90 galvanized steel and powder coat finish for durability, this UL Listed Type 3R enclosure provides 200 continuous ampere service rating with 600V AC capacity. The 5-terminal design accommodates overhead cable entry with lay-in terminals supporting 6 AWG to 350 kcmil wire ranges on both line and load sides.

Professional Features & Benefits

• 200 Continuous Ampere Rating: Provides robust electrical capacity for residential and light commercial applications with reliable current handling.
• Horn Bypass Provision: Enables safe meter maintenance and replacement without service interruption for enhanced operational flexibility.
• Type 3R UL Listed Enclosure: Weather-resistant construction meets stringent safety standards for outdoor installation confidence.
• G90 Galvanized Steel Construction: Superior corrosion resistance with powder coat finish ensures long-term durability in harsh environments.
• Triplex Ground Configuration: Integrated equipment grounding system provides enhanced electrical safety and code compliance.
• Ringless Design: Eliminates meter ring requirements for simplified installation and reduced connection points.
• 7/8" Barrel Lock Provision: Security knockout and angle bracket accommodate utility barrel lock requirements for tamper protection.

Technical Specifications

• Amperage Rating: 200 Continuous Ampere
• Application: Meter Socket
• Barrel Lock Provision: 7/8 Inch Knockout and Angle Bracket For Barrel Lock Provision
• Brand Name: Milbank
• Bypass Provision: Horn Bypass
• Cable Entry: Overhead
• Departent: Electrical
• Equipment Ground: Triplex Ground
• Frequency Rating: 60 Hertz
• Hub Closing Plate: Small Hub Opening
• Insulation: Glass Polyester
• Line Side Wire Range: 6 AWG - 350 kcmil
• Load Side Wire Range: 6 AWG - 350 kcmil
• Main Breaker Size: No Main Breaker
• Number Of Jaws: 5 Terminal
• Number Of Main Breakers: 0
• Number Of Meter Positions: 1 Position
• Number Of Receptacles: 0
• Phase: 1 Phase
• Product Family Code: 4T20
• Product Height: 15.5 IN
• Product Length: 4.125 IN
• Product Material: G90 Galvanized Steel with Powder Coat Finish
• Product Mounting: Surface Mount
• Product Size: 4.125L x 8W x15.5H
• Product Type: Ringless Meter Socket
• Standard: UL Listed;Type 3R
• Terminal: Lay in
• Unspsc Number: 39121102
• Voltage Rating: 600 Volts Alternating Current
• Width: 8 IN

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential electrical service metering installations
• Light commercial facility power monitoring
• Multi-unit residential properties
• Professional office buildings
• Retail establishments requiring reliable metering
• Service upgrade and replacement projects
• Utility company approved metering solutions

Why Choose Milbank Quality?

Milbank delivers proven electrical metering solutions with UL Listed safety certification and Type 3R weather resistance. The G90 galvanized steel construction with powder coat finish ensures reliable performance in demanding outdoor environments, while the comprehensive wire range compatibility and professional bypass provision support versatile installation requirements.
