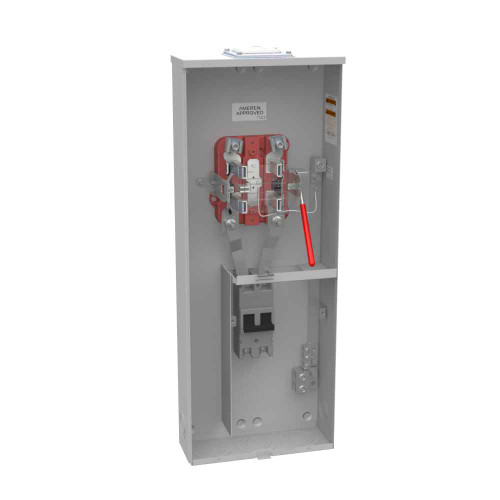

Milbank 200A 1-Phase Ringless Meter Socket with Lever Bypass and Quadplex Ground

Milbank 200A 1-Phase Ringless Meter Socket with Lever Bypass and Quadplex Ground

Professional metering solution with integrated bypass capability

The Milbank 200A 1-Phase Ringless Meter Socket delivers reliable electrical metering with integrated lever bypass functionality and quadplex ground configuration. Constructed from G90 galvanized steel with powder coat finish, this UL Listed Type 3R enclosure provides durable surface mount installation for both overhead and underground cable entry applications. The 5-terminal design accommodates wire ranges from 6 AWG to 350 kcmil on both line and load sides.

Professional Features & Benefits

• 200 Continuous Ampere Rating: Handles substantial electrical loads for residential and light commercial applications with reliable current capacity.
• Lever Bypass Configuration: Enables safe meter removal and maintenance without interrupting power service to critical loads.
• Quadplex Ground System: Provides enhanced grounding reliability and electrical safety through multiple ground connections.
• G90 Galvanized Steel Construction: Delivers superior corrosion resistance and long-term durability in outdoor environments.
• Type 3R UL Listed Enclosure: Meets stringent safety standards for outdoor installation with protection against weather conditions.
• Flexible Cable Entry: Accommodates both overhead and underground service connections for versatile installation options.
• Wide Wire Range Compatibility: Accepts conductors from 6 AWG to 350 kcmil for flexible connection requirements.

Technical Specifications

• Amperage Rating: 200 Continuous Ampere
• Application: Meter Socket
• Barrel Lock Provision: 7/8 Inch Knockout and Angle Bracket For Barrel Lock Provision
• Brand Name: Milbank
• Bypass Provision: Lever Bypass
• Cable Entry: Overhead or Underground
• Departent: Electrical
• Equipment Ground: Quadplex Ground
• Frequency Rating: 60 Hertz
• Line Side Wire Range: 6 AWG - 350 kcmil
• Load Side Wire Range: 6 AWG - 350 kcmil
• Main Breaker Size: No Main Breaker
• Number Of Jaws: 5 Terminal
• Number Of Main Breakers: 0
• Number Of Meter Positions: 1 Position
• Number Of Receptacles: 0
• Phase: 1 Phase
• Product Family Code: HD5T
• Product Height: 19 IN
• Product Material: G90 Galvanized Steel with Powder Coat Finish
• Product Mounting: Surface Mount
• Product Type: Ringless Meter Socket
• Standard: UL Listed;Type 3R
• Terminal: Lay in
• Unspsc Number: 39121102
• Voltage Rating: 600 Volts Alternating Current
• Width: 13 IN

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential Service Metering
• Small Commercial Buildings
• Multi-Unit Properties
• Professional Offices
• Retail Establishments
• Light Industrial Facilities
• Utility Service Connections

Why Choose Milbank Quality?

Milbank delivers proven reliability through UL Listed construction and Type 3R weather protection. The G90 galvanized steel with powder coat finish ensures long-term durability, while the comprehensive grounding system and bypass capability provide enhanced safety and serviceability for professional electrical installations.
