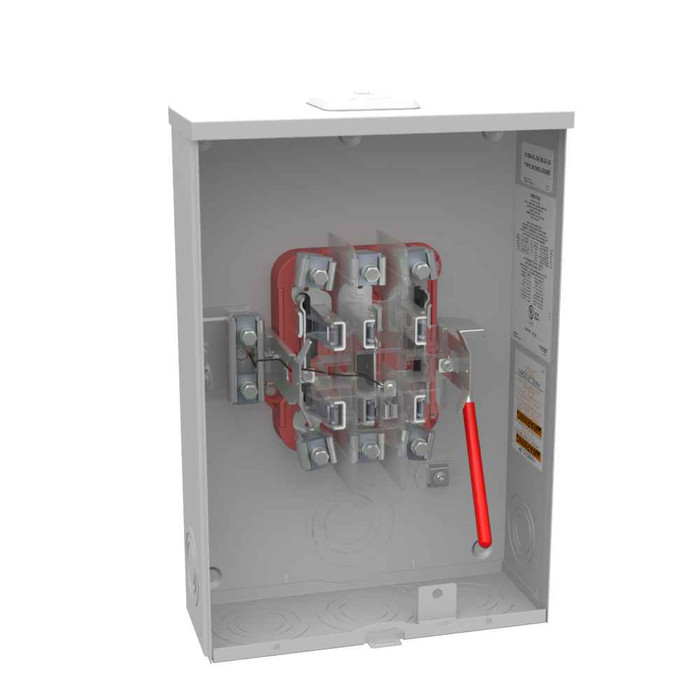

Milbank U1854-XL-QG-BLG-LIS 7 Terminal Ringless Meter Socket Small Closing Plate Quadplex Ground Lever Bypass with 7/8" Barrel Lock Provision LISCO Approved

Milbank 200A 3-Phase Ringless Meter Socket with Lever Bypass and Quadplex Ground - 7 Terminal LISCO Approved

(No reviews yet) Write a Review

Model: U1854-XL-QG-BLG-LIS

In Stock (leaves warehouse same day if ordered before 3pm ET)

$670.67
$664.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 200A 3-Phase Ringless Meter Socket with Lever Bypass and Quadplex Ground - 7 Terminal LISCO Approved

Professional metering solution with integrated bypass capability

The Milbank 200A 3-Phase Ringless Meter Socket delivers reliable electrical metering with integrated lever bypass functionality and quadplex ground configuration. Constructed with G90 galvanized steel and powder coat finish for durability, this 7-terminal unit accommodates 600V AC applications with 60 Hz frequency rating. The surface mount design features overhead or underground cable entry options and LISCO approval for Long Island Lighting Company applications.

Professional Features & Benefits

  • 200 Continuous Ampere Rating: Handles substantial electrical loads for commercial and multi-unit residential applications with reliable current capacity.
  • Lever Bypass Provision: Enables safe meter maintenance and replacement without service interruption, reducing downtime and operational costs.
  • Quadplex Ground Configuration: Provides enhanced grounding safety and electrical system integrity for 3-phase installations.
  • G90 Galvanized Steel Construction: Delivers superior corrosion resistance and long-term durability in outdoor environments with powder coat finish protection.
  • Type 3R Enclosure Rating: Ensures reliable operation in outdoor conditions with protection against rain, sleet, and ice formation.
  • UL Listed Certification: Meets rigorous safety standards for professional electrical installations and code compliance.
  • Flexible Cable Entry: Accommodates both overhead and underground service connections for versatile installation options.

Technical Specifications

  • Amperage Rating: 200 Continuous Ampere
  • Application: Meter Socket
  • Brand Name: Milbank
  • Bypass Provision: Lever Bypass
  • Cable Entry: Overhead or Underground
  • Departent: Electrical
  • Equipment Ground: Quadplex Ground
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Small Closing Plate
  • Insulation: Glass Polyester
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Load Side Wire Range: 6 AWG - 350 kcmil
  • Main Breaker Size: No Main Breaker
  • Number Of Jaws: 7 Terminal
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 3 Phase
  • Product Family Code: HD7T
  • Product Height: 19 IN
  • Product Length: 4.844 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 4.844L x 13W x19H
  • Product Type: Ringless Meter Socket
  • Special Features: Long Island Lighting Company
  • Standard: UL Listed;Type 3R
  • Terminal: Lay in
  • Unspsc Number: 39121102
  • Voltage Rating: 600 Volts Alternating Current
  • Width: 13 IN

Professional Applications

  • Commercial Buildings and Office Complexes
  • Multi-Unit Residential Properties
  • Industrial Facilities and Manufacturing Plants
  • Retail and Shopping Centers
  • Educational and Healthcare Facilities
  • Municipal and Government Buildings
  • Long Island Lighting Company Service Areas

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R enclosure rating for outdoor durability. The G90 galvanized steel construction with powder coat finish ensures long-term performance, while the comprehensive wire range accommodation from 6 AWG to 350 kcmil provides installation flexibility for professional electrical contractors.

Manufacturer Resources

Product Specs

Amperage Rating:
200 Continuous Ampere
Application:
Meter Socket
Brand Name:
Milbank
Bypass Provision:
Lever Bypass
Cable Entry:
Overhead or Underground
Equipment Ground:
Quadplex Ground
Frequency Rating:
60 Hertz
Hub Closing Plate:
Small Closing Plate
Insulation:
Glass Polyester
Line Side Wire Range:
6 AWG - 350 kcmil
Load Side Wire Range:
6 AWG - 350 kcmil
Main Breaker Size:
No Main Breaker
Number Of Jaws:
7 Terminal
Number Of Main Breakers:
0
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
3 Phase
Product Family Code:
HD7T
Product Height:
19 IN
Product Length:
4.844 IN
Product Size:
4.844L x 13W x19H
Product Type:
Ringless Meter Socket
Special Features:
Long Island Lighting Company
Standards:
UL Listed;Type 3R
Terminal:
Lay in
Unspsc Number:
39121102
Voltage Rating:
600 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
200
Product Width:
13 IN
Department:
Electrical
Product Subgroup:
Electrical

Milbank U1854-XL-QG-BLG-LIS – Frequently Asked Questions

1) Will a 7 terminal meter socket work for a 3-phase 4-wire service, or do I need a different jaw count?
Seven jaws is the standard configuration for 3-phase 4-wire metering, and that is what the Milbank U1854-XL-QG-BLG-LIS provides: 7 terminal, one meter position, rated 200 continuous amps at 600VAC, 60 Hz. If your service is single phase you do not want this socket, a 4 jaw or 5 jaw single-phase socket is the right part. Count the jaws in the existing socket before ordering, that is the fastest check.
2) Is the Milbank U1854-XL-QG-BLG-LIS approved for LIPA / Long Island service territory?
Yes, the U1854-XL-QG-BLG-LIS is built to the Long Island Lighting Company spec, which is why it carries the LIS suffix and the quadplex ground and lever bypass combination. If you are installing outside that territory, your utility has its own approved socket list and this exact configuration may not appear on it. Check your POCO's approved meter socket list before you buy, since a socket the utility will not set a meter in is a return.
3) What wire size can I land in this 200A Milbank meter socket, line and load?
Both line side and load side terminals on the U1854-XL-QG-BLG-LIS take 6 AWG through 350 kcmil, and they are lay-in terminals, so you drop the conductor in rather than threading it through a lug barrel. That range covers 4/0 copper or 350 aluminum for a 200A service, plus small enough for a tap or a lighter feeder. Parallel runs will not fit, this is one conductor per terminal.
4) Does this Milbank ringless socket have a main breaker in it, or do I need a separate disconnect?
No breaker, no receptacle. The U1854-XL-QG-BLG-LIS is a meter socket only, with zero main breakers, so your overcurrent protection and service disconnect have to be downstream in a separate panel or disconnect enclosure. Budget the disconnect and the load side conductors into the job, this is not a meter main combination.
5) Can I pull the meter for service work without killing power to the building?
That is what the lever bypass is for. The U1854-XL-QG-BLG-LIS has a lever bypass provision, so the utility or authorized tech can close the bypass, carry the load around the meter, and remove or swap the meter with the building still energized. For a tenant-occupied commercial building or multi-family property, that is the difference between a meter change and an outage notice. Bypass operation stays with the utility in most territories.
6) Will this meter socket hold up mounted outdoors on an exterior wall?
Type 3R rated and UL Listed, so it is built for outdoor wall mounting with protection against rain, sleet and ice. The enclosure is G90 galvanized steel with a powder coat finish over it, and the jaw insulation is glass polyester. It is a surface mount unit, so it lands flat on the wall or a backboard rather than recessing into it. Type 3R is not washdown or dust-tight, so keep it off surfaces that get pressure-washed.
7) Can I feed this socket from an underground lateral, or is it overhead only?
Either one. Cable entry on the U1854-XL-QG-BLG-LIS is overhead or underground, so the same socket works for an overhead service drop or an underground service lateral. It ships with a small hub closing plate, so if your install needs a threaded hub for overhead conduit entry you order that separately and swap the plate out.
8) What does ringless mean on a meter socket, and should I get a ringed one instead?
Ringless means there is no sealing ring around the meter, the cover itself goes over the meter and seals to the enclosure. Ringed sockets use a separate locking ring. Neither is better, it is entirely a question of what your utility accepts, and the two covers are not interchangeable. The U1854-XL-QG-BLG-LIS is ringless and built to the Long Island Lighting Company spec, so if your utility calls out ringed sockets you need a different unit.
9) What is quadplex ground on a Milbank meter socket and do I still need a separate ground bar?
Quadplex ground is a factory-installed grounding provision in the socket that bonds the enclosure and gives you landing points for the grounded and grounding conductors, which is what Long Island territory specs call for on 3-phase installs. It is part of the U1854-XL-QG-BLG-LIS as built, not an add-on kit, so you are not sourcing a separate ground bar for the socket itself. Grounding electrode conductor sizing and the electrode system are still a field decision per the service size.
10) Is this Milbank socket rated for 480V 3-phase service or just 208V?
Voltage rating is 600VAC at 60 Hz, which covers 120/208, 277/480 and 347/600 wye systems within the socket's own rating. The limit that decides the job is amperage, 200 continuous amps, and whatever the serving utility approves for that voltage class. The HD7T family designation and 7 jaw configuration are what you match against the utility's approved list.
11) Can I standardize a whole property on the HD7T Milbank socket, or does each meter need its own unit?
One meter per socket here, the U1854-XL-QG-BLG-LIS is a single-position enclosure. For a multi-tenant building where you want several meters on one assembly, you want a multi-position meter stack or a modular metering enclosure instead, not several of these hung side by side, unless your utility specifically requires individual sockets. Where the utility does want individual sockets, the HD7T family code is the designation to repeat on every order so the openings match across the property.
