Milbank 200A 3-Phase Ringless ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$643.04

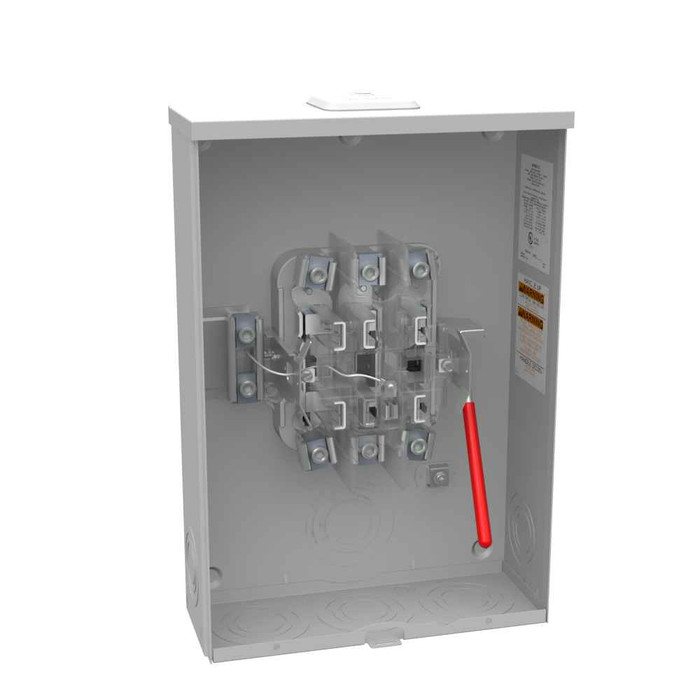

Milbank U8107-XL-IL 7 Terminal Ringless Small Closing Plate Lever Bypass 7-16 In Knockouts Lock Provision

Milbank 200A 3-Phase Ringless Meter Socket with Lever Bypass and 7-Terminal Configuration

(No reviews yet) Write a Review

Model: U8107-XL-IL

In Stock (leaves warehouse same day if ordered before 3pm ET)

$643.04
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 200A 3-Phase Ringless Meter Socket with Lever Bypass and 7-Terminal Configuration

Professional metering solution with integrated bypass capability

The Milbank 200A 3-Phase Ringless Meter Socket delivers reliable electrical metering with integrated lever bypass functionality for professional installations. This 7-terminal configuration supports 200 continuous ampere service at 600V AC with 3-phase capability, featuring G90 galvanized steel construction with powder coat finish for durability. The surface-mount design accommodates overhead or underground cable entry with bonded neutral equipment ground for versatile installation requirements.

Professional Features & Benefits

  • 200 Continuous Ampere Rating: Supports high-capacity electrical service for demanding commercial and industrial applications with reliable current handling.
  • Lever Bypass Provision: Enables safe meter maintenance and replacement without service interruption, improving operational flexibility and reducing downtime.
  • 7-Terminal Ringless Design: Provides secure electrical connections without traditional meter rings, simplifying installation and maintenance procedures.
  • G90 Galvanized Steel Construction: Delivers superior corrosion resistance and structural integrity with powder coat finish for extended service life in harsh environments.
  • Type 3R Enclosure Rating: Protects against rain, sleet, and ice formation while providing outdoor installation capability with reliable weather resistance.
  • UL Listed Certification: Ensures compliance with safety standards and code requirements for professional electrical installations.
  • Flexible Cable Entry: Accommodates both overhead and underground service connections for versatile installation configurations.

Technical Specifications

  • Amperage Rating: 200 Continuous Ampere
  • Application: Meter Socket
  • Barrel Lock Provision: 7/16 Inch Knockout for Barrel Lock Provision
  • Brand Name: Milbank
  • Bypass Provision: Lever Bypass
  • Cable Entry: Overhead or Underground
  • Departent: Electrical
  • Equipment Ground: Bonded Neutral
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Small Closing Plate
  • Insulation: Glass Polyester
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Load Side Wire Range: 6 AWG - 350 kcmil
  • Main Breaker Size: No Main Breaker
  • Number Of Jaws: 7 Terminal
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 3 Phase
  • Product Family Code: MD7T
  • Product Height: 19 IN
  • Product Length: 43.844 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 43.844L x 13W x19H
  • Product Type: Ringless Meter Socket
  • Standard: UL Listed;Type 3R
  • Terminal: Lay in
  • Unspsc Number: 39121102
  • Voltage Rating: 600 Volts Alternating Current
  • Width: 13 IN

Professional Applications

  • Commercial Building Electrical Service
  • Industrial Facility Power Distribution
  • Multi-Unit Residential Properties
  • Retail and Office Buildings
  • Municipal and Government Facilities
  • Educational Institution Power Systems
  • Healthcare Facility Electrical Infrastructure

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather resistance for demanding professional installations. The G90 galvanized steel construction with powder coat finish ensures long-term durability, while the comprehensive wire range compatibility from 6 AWG to 350 kcmil provides installation flexibility for diverse electrical service requirements.

Manufacturer Resources

Product Specs

Amperage Rating:
200 Continuous Ampere
Application:
Meter Socket
Barrel Lock Provision:
7/16 Inch Knockout for Barrel Lock Provision
Brand Name:
Milbank
Bypass Provision:
Lever Bypass
Cable Entry:
Overhead or Underground
Equipment Ground:
Bonded Neutral
Frequency Rating:
60 Hertz
Hub Closing Plate:
Small Closing Plate
Insulation:
Glass Polyester
Line Side Wire Range:
6 AWG - 350 kcmil
Load Side Wire Range:
6 AWG - 350 kcmil
Main Breaker Size:
No Main Breaker
Number Of Jaws:
7 Terminal
Number Of Main Breakers:
0
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
3 Phase
Product Family Code:
MD7T
Product Height:
19 IN
Product Length:
43.844 IN
Product Size:
43.844L x 13W x19H
Product Type:
Ringless Meter Socket
Standards:
UL Listed;Type 3R
Terminal:
Lay in
Unspsc Number:
39121102
Voltage Rating:
600 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
200
Product Width:
13 IN
Department:
Electrical
Product Subgroup:
Electrical
Product Group:
Metering & Service Entrance

Milbank U8107-XL-IL – Frequently Asked Questions

1) Will a Milbank U8107-XL-IL 7-terminal socket work for a 3-phase 4-wire 120/208V service?
The U8107-XL-IL is a 7-jaw socket rated 3 phase at 600V AC, 60 Hz, so it covers 3-phase 4-wire network metering including 120/208V. Seven jaws is the 3-phase 4-wire count; if your utility meter is a 4-jaw single-phase form or a 5-jaw 3-wire form, this is the wrong socket. Always confirm the meter form your serving utility requires before ordering, since the jaw count is not field-changeable.
2) Does the Milbank U8107-XL-IL meter socket come with a main breaker?
No breaker of any kind. The U8107-XL-IL is a meter socket only, with no main breaker and no receptacles, and one meter position. You'll need a separate service disconnect downstream (or upstream, depending on how your utility and AHJ want the service arranged) to meet code. If you want metering and disconnect in one can, you're looking for a meter-main combination instead.
3) What size service conductors will land in this 200A Milbank socket?
Both line and load terminals take 6 AWG through 350 kcmil, and they're lay-in type terminals, which makes dressing large aluminum or copper service conductors into the can a lot easier than a top-down box lug. That range covers typical 200A copper and aluminum service entrance conductors with room to go up for voltage drop.
4) Can this Milbank ringless socket be mounted outdoors on an exterior wall?
Yes. It carries a Type 3R rating and is UL Listed, so it's rated for outdoor use against rain, sleet and ice. Construction is G90 galvanized steel with a powder coat finish, and it's a surface-mount enclosure, so it hangs on the wall face rather than recessing into it. Check that your wall can carry a can measuring 43.844L x 13W x 19H inches at meter height.
5) What does the lever bypass on a meter socket actually do for me?
The lever bypass lets a utility or qualified tech pull and replace the meter without dropping power to the load. On a commercial building, a multi-family property or a healthcare or data-sensitive tenant, that's the difference between a meter swap and an outage notice. Many utilities require bypass on 200A 3-phase services as a matter of policy, so check the tariff before you spec a non-bypass can.
6) Can I use this socket for an underground service lateral, or is it overhead only?
Either one. Cable entry is rated for overhead or underground, so the same can works for a service drop from a pole or a lateral from a pad transformer. For an overhead feed you'd typically fit a hub in the top; this unit ships configured with a small closing plate, so plan on the correct hub size for your raceway if you're coming in from the top.
7) Does this Milbank meter socket accept a utility barrel lock?
Yes, it's provided with a 7/16 inch knockout for a barrel lock provision, which is what most utilities use to seal a ringless socket cover. Ringless means the cover itself secures the meter rather than a sealing ring, and the barrel lock is what keeps the cover on.
8) Is the neutral bonded in this meter socket, or do I need to install a bonding screw?
The equipment ground is bonded neutral as supplied, which is what you want at the service entrance where the main bonding jumper belongs. If this can sits downstream of the service disconnect, that bond has to be reconsidered, because the neutral and equipment ground must stay separated past the service point.
9) How much wall space do I need for the Milbank U8107-XL-IL, and what is it made of?
Plan on 43.844 inches by 13 inches by 19 inches for the enclosure. Body is G90 galvanized steel with a powder coat finish, and the jaw insulation is glass polyester, which is what holds up to the heat and tracking stress at 200A continuous. It's a surface-mount unit, so the full depth stands off the wall.
10) What part number and family should I put on the submittal for this Milbank socket?
Specify Milbank U8107-XL-IL, product family MD7T. The submittal line reads: 200A continuous, 600V AC, 60 Hz, 3-phase, 7-terminal ringless meter socket, lever bypass, Type 3R, UL Listed, surface mount. UNSPSC is 39121102 if your procurement system needs a commodity code.
