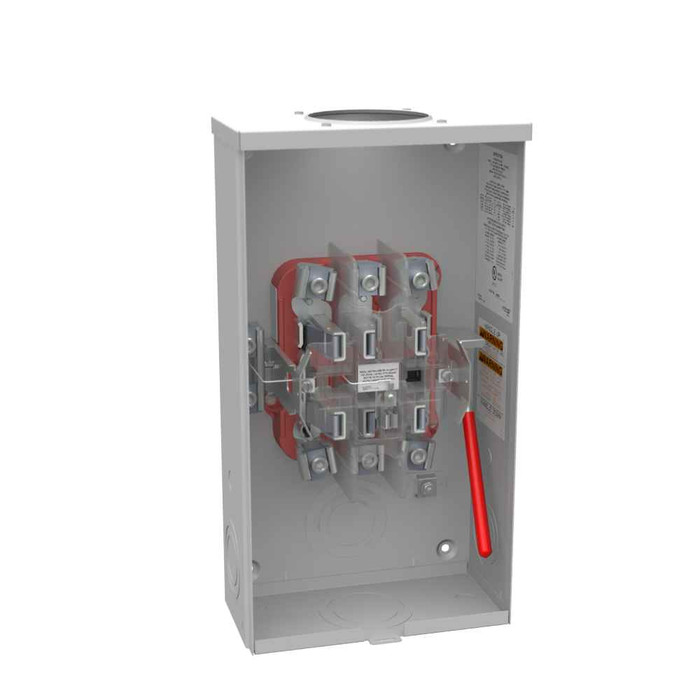

Milbank 7 Terminal Ringless Meter Socket Large Hub Open Lever Bypass Lindstrom Electric

Milbank 7 Terminal Ringless Meter Socket 200A 3 Phase with Lever Bypass

(No reviews yet) Write a Review

Model: U2049-RL

In Stock (leaves warehouse same day if ordered before 3pm ET)

$707.94
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 7 Terminal Ringless Meter Socket 200A 3 Phase with Lever Bypass

Professional 3-Phase Metering Solution with Integrated Bypass

The Milbank 7 Terminal Ringless Meter Socket delivers reliable 200 continuous ampere service for 3-phase electrical metering applications. Featuring G90 galvanized steel construction with powder coat finish and Type 3R enclosure rating, this surface-mount meter socket provides professional-grade durability for overhead cable entry installations. The integrated lever bypass provision enables safe meter maintenance while maintaining electrical service continuity.

Professional Features & Benefits

  • 200 Continuous Ampere Rating: Handles substantial electrical loads for commercial and industrial metering applications with reliable current capacity.
  • 7 Terminal Ringless Design: Provides comprehensive connection points for 3-phase service with simplified installation and maintenance access.
  • Lever Bypass Provision: Enables safe meter removal and replacement while maintaining electrical service to downstream loads.
  • Type 3R Enclosure Rating: Weather-resistant construction suitable for outdoor installations with protection against rain and ice formation.
  • G90 Galvanized Steel Construction: Corrosion-resistant material with powder coat finish ensures long-term durability in demanding environments.
  • 600V AC Rating: Compatible with standard commercial voltage systems operating at 60 Hz frequency.
  • UL Listed Certification: Meets rigorous safety standards for professional electrical installations and code compliance.

Technical Specifications

  • Amperage Rating: 200 Continuous Ampere
  • Application: Meter Socket
  • Brand Name: Milbank
  • Bypass Provision: Lever Bypass
  • Cable Entry: Overhead
  • Departent: Electrical
  • Equipment Ground: Grounding Stud
  • Frequency Rating: 60 Hertz
  • Insulation: Glass Polyester
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Load Side Wire Range: 6 AWG - 350 kcmil
  • Main Breaker Size: No Main Breaker
  • Number Of Jaws: 7 Terminal
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 3 Phase
  • Product Family Code: HD7T
  • Product Height: 18.5 IN
  • Product Length: 4.844 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 4.844L x 10W x18.5H
  • Product Type: Ringless Meter Socket
  • Standard: UL Listed;Type 3R
  • Terminal: Lay in
  • Unspsc Number: 39121102
  • Voltage Rating: 600 Volts Alternating Current
  • Width: 10 IN

Professional Applications

  • Commercial Building Electrical Service
  • Industrial Facility Metering
  • Multi-Tenant Properties
  • Retail and Office Buildings
  • Manufacturing Facilities
  • Institutional Buildings
  • Municipal and Government Facilities

Why Choose Milbank Quality?

Milbank delivers proven reliability through UL Listed certification and Type 3R weather-resistant construction. The G90 galvanized steel with powder coat finish provides exceptional corrosion resistance, while the glass polyester insulation ensures long-term electrical integrity in demanding commercial and industrial environments.

Manufacturer Resources

Product Specs

Amperage Rating:
200 Continuous Ampere
Application:
Meter Socket
Brand Name:
Milbank
Bypass Provision:
Lever Bypass
Cable Entry:
Overhead
Equipment Ground:
Grounding Stud
Frequency Rating:
60 Hertz
Insulation:
Glass Polyester
Line Side Wire Range:
6 AWG - 350 kcmil
Load Side Wire Range:
6 AWG - 350 kcmil
Main Breaker Size:
No Main Breaker
Number Of Jaws:
7 Terminal
Number Of Main Breakers:
0
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
3 Phase
Product Family Code:
HD7T
Product Height:
18.5 IN
Product Length:
4.844 IN
Product Size:
4.844L x 10W x18.5H
Product Type:
Ringless Meter Socket
Standards:
UL Listed;Type 3R
Terminal:
Lay in
Unspsc Number:
39121102
Voltage Rating:
600 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
200
Product Width:
10 IN
Department:
Electrical
Product Subgroup:
Electrical
Insulation Type:
Glass Polyester
Installation Category:
Surface Mount
Terminal Type:
Lay In
Number of Phases:
3
Frequency:
60 hertz
Product Details:
Ringless Meter Socket
Number of Terminations:
7

Milbank U2049-RL – Frequently Asked Questions

1) Is the Milbank U2049-R meter socket a 3-phase socket, and how many jaws does it have?
The Milbank U2049-R is a 7 terminal (7 jaw) ringless socket built for 3 phase service, single meter position, rated 600V AC at 60 Hz. If your utility is metering a single phase 120/240V residential service, this is the wrong socket. A 7 jaw socket is what a utility specifies for 3 phase 4 wire network metering, so confirm the jaw count on the utility's approved meter list before ordering.
2) What is the difference between the U2049-R and the U2049-RL Milbank meter socket?
Only the hub opening. The U2049-R comes with the large hub opening and the U2049-RL with the small hub opening. Everything else (200A continuous, 7 terminal, 3 phase, lever bypass, Type 3R) is the same. Pick the opening that matches the hub or conduit fitting sized for your service conductors coming down from the weatherhead.
3) Will 250 kcmil aluminum service conductors land in this Milbank 200A socket?
Yes. Both line and load terminals on the U2049 socket accept 6 AWG through 350 kcmil, so 250 kcmil lands without adapters. The terminals are lay-in type, which means you drop the conductor into the open jaw and torque the lug rather than threading it through a closed hole, a real time saver on stiff large-gauge service cable.
4) Can this socket be used for underground service entrance?
No. The U2049 is built for overhead cable entry, with the hub opening at the top for the service drop. For an underground lateral you want a socket configured for bottom feed. Using an overhead-entry socket on an underground service means the conductors enter the wrong end of the can and the utility will likely reject the install.
5) Does this Milbank socket include a main breaker or a disconnect?
No. It is a meter socket only, with no main breaker and no receptacles. You will need a separate service disconnect downstream, which is standard practice on commercial 3 phase service where the disconnect and distribution live in a panel next to the meter. An equipment grounding stud is provided in the can for your grounding electrode conductor.
6) What does the lever bypass do and why would a utility require it?
The lever bypass lets the meter be pulled without dropping power to the building. Throwing the lever jumpers line to load inside the socket, so a meter tech or electrician can swap the meter live and the tenant stays energized. Many utilities require bypass on commercial and multi-tenant services for exactly that reason, and some require it on anything at 200A. On a retail or office building where an outage means lost revenue, this is the feature you are paying for.
7) Can this meter socket be mounted outdoors on an exterior wall?
Yes. Type 3R rating covers outdoor use against rain, sleet and ice formation, and the can is G90 galvanized steel with a powder coat finish for corrosion resistance. It is surface mount, so it bolts flat to a wall or a meter pole board rather than recessing into the wall. The unit is UL Listed.
8) What does ringless mean on a meter socket, and will my meter still fit?
Ringless means there is no separate sealing ring clamping the meter cover; the cover itself slides over the socket and is sealed by the utility. The meter is the same standard socket-type meter either way, so what matters is the jaw count, which here is 7 terminal. Utilities specify either ringless or ring type in their service rules, so match whichever your territory requires.
9) Can I use this 200A socket on a 480V 3 phase service?
The socket is rated 600 volts AC at 60 hertz, so 480V 3 phase falls within its rating, with glass polyester insulation carrying the jaws. Continuous current capacity is 200 amps. Whether the utility meters 480V through a self-contained 7 jaw socket or requires CT metering at that voltage is their call, so check the service requirements before you set it.
10) I need to standardize meter sockets across several tenant spaces. What identifies this one on a submittal?
Reference it as Milbank product family HD7T, catalog number U2049-R for the large hub opening or U2049-RL for the small hub. The submittal line reads: 200A continuous, 600V, 3 phase, 7 terminal ringless, lever bypass, overhead entry, Type 3R, UL Listed. UNSPSC is 39121102 for procurement systems.
