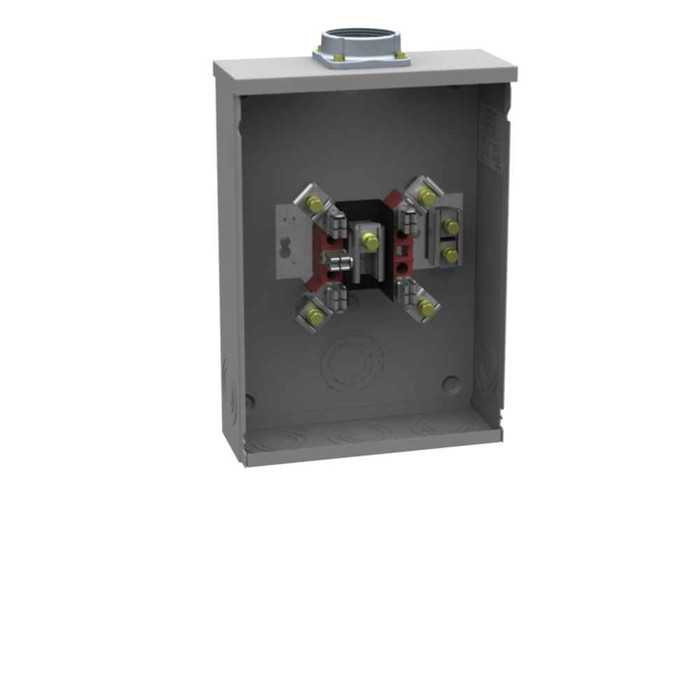

Milbank 200A 1-Phase Ringless Meter Socket with 2.5" Hub - Surface Mount

Milbank 200A 1-Phase Ringless Meter Socket with 2.5" Hub - Surface Mount

Professional electrical metering solution with UL Listed Type 3R protection

The Milbank 200A 1-Phase Ringless Meter Socket delivers reliable electrical metering for residential and commercial applications. Featuring a durable G90 galvanized steel construction with powder coat finish and Type 3R enclosure rating, this surface-mount meter socket provides dependable service with 600V AC voltage rating and 60 Hz frequency compatibility. The 5-terminal design with lay-in terminals accommodates 6 AWG to 350 kcmil wire ranges for both line and load side connections.

Professional Features & Benefits

• 200 Continuous Ampere Rating: Provides robust capacity for demanding residential and light commercial electrical loads with reliable continuous service.
• Type 3R UL Listed Enclosure: Weather-resistant protection ensures safe outdoor installation and long-term durability in various environmental conditions.
• G90 Galvanized Steel Construction: Superior corrosion resistance with powder coat finish delivers extended service life and professional appearance.
• 5-Terminal Ringless Design: Simplified installation and maintenance with lay-in terminal configuration for secure wire connections.
• Flexible Cable Entry: Accommodates both overhead and underground service connections with 2.5-inch hub for versatile installation options.
• Wide Wire Range Compatibility: Accepts 6 AWG to 350 kcmil conductors on both line and load sides for flexible system integration.
• 600V AC Voltage Rating: Professional-grade electrical specifications ensure safe operation across standard utility voltage ranges.

Technical Specifications

• Amperage Rating: 200 Continuous Ampere
• Application: Meter Socket
• Brand Name: Milbank
• Bypass Provision: No Bypass
• Cable Entry: Overhead or Underground
• Departent: Electrical
• Equipment Ground: Bonded Neutral
• Frequency Rating: 60 Hertz
• Hub Closing Plate: 2 1/2 Inch Hub
• Insulation: Glass Polyester
• Line Side Wire Range: 6 AWG - 350 kcmil
• Load Side Wire Range: 6 AWG - 350 kcmil
• Main Breaker Size: No Main Breaker
• Number Of Jaws: 5 Terminal
• Number Of Main Breakers: 0
• Number Of Meter Positions: 1 Position
• Number Of Receptacles: 0
• Phase: 1 Phase
• Product Family Code: 4T20
• Product Height: 15.5 IN
• Product Length: 4.125 IN
• Product Material: G90 Galvanized Steel with Powder Coat Finish
• Product Mounting: Surface Mount
• Product Size: 4.125L x 11W x15.5H
• Product Type: Ring Type Meter Socket
• Standard: UL Listed;Type 3R
• Terminal: Lay in
• Unspsc Number: 39121102
• Voltage Rating: 600 Volts Alternating Current
• Width: 11 IN

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential Service Entrance Metering
• Commercial Building Electrical Systems
• Multi-Unit Residential Properties
• Light Industrial Facilities
• Retail and Office Buildings
• Utility Service Connections
• Electrical Contractor Installations

Why Choose Milbank Quality?

Milbank meter sockets provide dependable electrical metering solutions backed by UL Listed certification and Type 3R weather-resistant protection. The robust G90 galvanized steel construction with powder coat finish ensures long-term durability and professional performance in demanding electrical applications.
