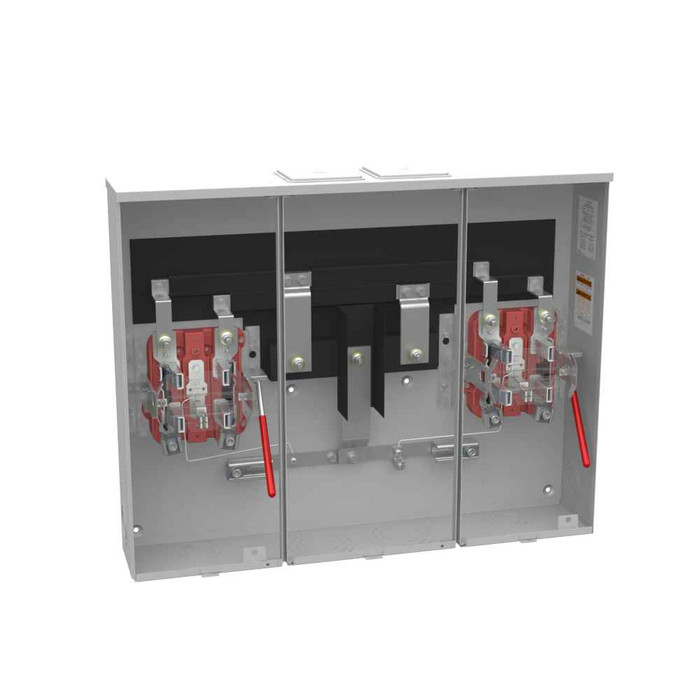

Milbank 200A 1-Phase Ringless Meter Socket with Lever Bypass - 2 Position Surface Mount

Milbank 200A 1-Phase Ringless Meter Socket with Lever Bypass - 2 Position Surface Mount

Professional dual-position meter socket with integrated bypass capability

The Milbank 200A ringless meter socket delivers reliable dual-position metering with integrated lever bypass functionality for professional electrical installations. Featuring 5-terminal configuration with 1-phase 300V AC rating, this surface-mount unit provides versatile overhead or underground cable entry through center wireway design. Constructed with G90 galvanized steel and powder coat finish for durability, the unit accommodates wire ranges from 4 AWG to 600 kcmil with glass polyester insulation and UL Listed Type 3R rating for outdoor applications.

Professional Features & Benefits

• 200 Continuous Ampere Rating: Provides robust capacity for demanding residential and light commercial metering applications with reliable current handling.
• Lever Bypass Provision: Enables safe meter maintenance and replacement without service interruption, enhancing operational flexibility and safety.
• 5-Terminal Ringless Design: Eliminates need for meter rings while providing secure connections and simplified installation process.
• Dual Position Configuration: Accommodates two separate meter installations in a single enclosure for multi-unit or split service applications.
• G90 Galvanized Steel Construction: Delivers superior corrosion resistance and structural integrity with powder coat finish for extended service life.
• UL Listed Type 3R Rating: Ensures compliance with safety standards and provides weather-resistant protection for outdoor installations.
• Flexible Cable Entry: Supports both overhead and underground service connections through center wireway for versatile installation options.

Technical Specifications

• Amperage Rating: 200 Continuous Ampere
• Application: Meter Socket
• Brand Name: Milbank
• Bypass Provision: Lever Bypass
• Cable Entry: Overhead or Underground with Center Wireway
• Departent: Electrical
• Frequency Rating: 60 Hertz
• Hub Closing Plate: Twin Large Closing Plates
• Insulation: Glass Polyester
• Line Side Wire Range: 4 AWG - 600 kcmil or Two 1/0 AWG - 250 kcmil
• Main Breaker Size: No Main Breaker
• Number Of Jaws: 5 Terminal
• Number Of Main Breakers: 0
• Number Of Meter Positions: 2 Positions
• Number Of Receptacles: 0
• Phase: 1 Phase
• Product Family Code: GHD2
• Product Height: 25.25 IN
• Product Material: G90 Galvanized Steel with Powder Coat Finish
• Product Mounting: Surface Mount
• Product Type: Ringless Meter Socket
• Special Features: Ameren Energy
• Standard: UL Listed;Type 3R
• Unspsc Number: 39121102
• Voltage Rating: 300 Volts Alternating Current

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Multi-Unit Residential Properties
• Duplex and Townhome Developments
• Small Commercial Buildings
• Mixed-Use Facilities
• Utility Service Upgrades
• Split Service Installations
• Professional Office Buildings

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather-resistant rating for dependable outdoor performance. The robust G90 galvanized steel construction with powder coat finish ensures long-term durability, while the professional 5-terminal ringless design provides secure connections and simplified maintenance for years of reliable service.
