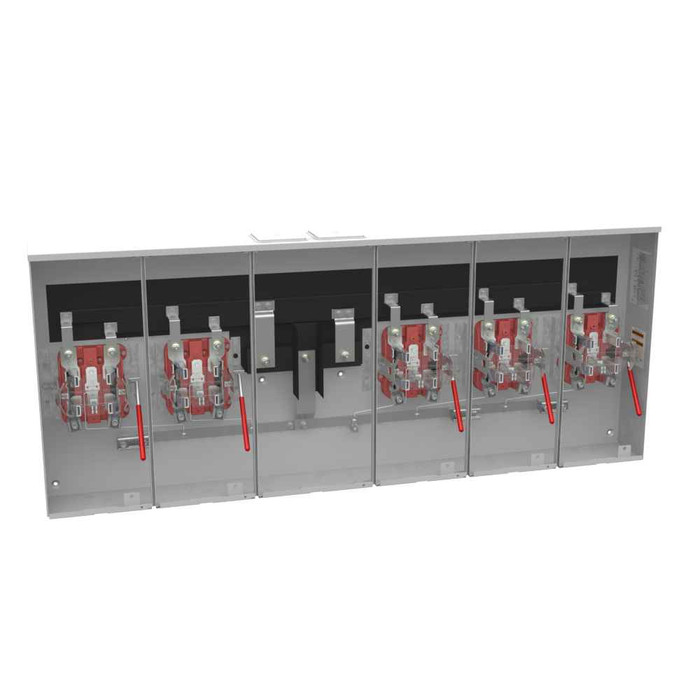

Milbank 5 Terminal Ringless 2 Large Closing Plates Lever Bypass 5 Position, 200 Ampere

Milbank 5-Position Ringless Meter Socket with Lever Bypass - 200A 1-Phase Surface Mount

(No reviews yet) Write a Review

Model: U2875-XT-QG-AMS

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3,875.68
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 5-Position Ringless Meter Socket with Lever Bypass

Professional Multi-Meter Power Distribution Solution

The Milbank 5-Position Ringless Meter Socket delivers reliable multi-unit power distribution with 200 continuous ampere capacity and 1-phase configuration. Featuring lever bypass provision for maintenance flexibility and twin large closing plates for enhanced protection, this surface mount unit is constructed with G90 galvanized steel and powder coat finish for long-lasting durability in Type 3R rated applications.

Professional Features & Benefits

  • 200 Continuous Ampere Rating: Provides substantial power capacity for multi-unit residential and commercial applications with reliable current handling.
  • 5-Position Configuration: Accommodates multiple meter connections in a single compact unit, reducing installation complexity and space requirements.
  • Lever Bypass Provision: Enables safe maintenance and meter replacement without disrupting power to other units, enhancing operational flexibility.
  • Ringless Design: Eliminates the need for meter rings, simplifying installation and reducing potential connection points for improved reliability.
  • G90 Galvanized Steel Construction: Delivers superior corrosion resistance and structural integrity with powder coat finish for extended service life.
  • Type 3R Rating: Provides protection against rain, sleet, and ice formation for reliable outdoor installation performance.
  • UL Listed Certification: Ensures compliance with safety standards and code requirements for professional electrical installations.

Technical Specifications

  • Amperage Rating: 200 Continuous Ampere
  • Application: Meter Socket
  • Brand Name: Milbank
  • Bypass Provision: Lever Bypass
  • Departent: Electrical
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Twin Large Closing Plates
  • Load Side Wire Range: 6 AWG - 350 kcmil
  • Main Breaker Size: No Main Breaker
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 5 Positions
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: GHD2
  • Product Height: 25.25 IN
  • Product Length: 6 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Type: Ringless Meter Socket
  • Special Features: Ameren Energy
  • Standard: UL Listed;Type 3R
  • Terminal: 3/8 Inch Stud
  • Unspsc Number: 39121102

Professional Applications

  • Multi-Unit Residential Properties
  • Apartment Buildings and Condominiums
  • Commercial Strip Centers
  • Small Office Buildings
  • Retail Establishments
  • Mixed-Use Developments
  • Property Management Facilities

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R environmental protection. The robust G90 galvanized steel construction with powder coat finish ensures long-term durability, while the professional-grade design supports demanding multi-meter applications with confidence and code compliance.

Manufacturer Resources

Product Specs

Amperage Rating:
200 Continuous Ampere
Application:
Meter Socket
Brand Name:
Milbank
Bypass Provision:
Lever Bypass
Frequency Rating:
60 Hertz
Hub Closing Plate:
Twin Large Closing Plates
Load Side Wire Range:
6 AWG - 350 kcmil
Main Breaker Size:
No Main Breaker
Number Of Main Breakers:
0
Number Of Meter Positions:
5 Positions
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
GHD2
Product Height:
25.25 IN
Product Length:
6 IN
Product Type:
Ringless Meter Socket
Special Features:
Ameren Energy
Standards:
UL Listed;Type 3R
Terminal:
3/8 Inch Stud
Unspsc Number:
39121102
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
200
Department:
Electrical
Product Subgroup:
Electrical
Hub Style:
Twin Large Closing Plates
Installation Category:
Surface Mount
Terminal Type:
3/8 Inch Stud
Number of Phases:
1
Product Details:
Ringless Meter Socket
Frequency:
60 hertz
Product Group:
Metering & Service Entrance

Milbank U2875-XT-QG-AMS – Frequently Asked Questions

1) Does the Milbank U2875-XT meter socket include a main breaker or do I need separate overcurrent protection?
No main breaker. The U2875-XT is a meter socket only, with zero main breakers in the enclosure, so overcurrent protection has to come from downstream panels or a separate disconnect. Plan the job around that: this is the metering point, not the service disconnect.
2) What size conductors will land in the Milbank 200A ringless meter socket?
Load side terminations accept 6 AWG through 350 kcmil, on 3/8 inch studs. That range covers typical 200 amp copper and aluminum service conductors, but because the terminals are studs rather than set screws you'll need properly sized compression or mechanical lugs on the conductors to bolt up.
3) Can this Milbank socket be mounted outdoors on an exterior wall?
Yes. It's a surface mount enclosure with a Type 3R rating, which covers rain, sleet and ice, and the shell is G90 galvanized steel with a powder coat finish for outdoor service. Surface mount means it hangs on the wall face rather than recessing into the wall, so allow for the enclosure standing proud of the finish.
4) Is this Milbank socket approved for Ameren service territory?
Milbank lists Ameren Energy as a special feature on the U2875-XT, and one of the ordering options, the U2875-XT-QG-AMS quadplex ground lever bypass 3 position version, is specifically noted as Ameren approved. Utility acceptance is always by the serving utility's own approved equipment list, so match the exact suffix your Ameren job requires.
5) What are the ordering options on the Milbank U2875-XT and how do they differ?
Three configurations are offered. U2875-XT-5T9 adds a fifth terminal in the 9 o'clock position, which some utilities require for network or self-contained metering. U2875-XT-HSP comes with a stainless steel hasp for padlocking the cover. U2875-XT-QG-AMS is the quadplex ground lever bypass 3 position version built to Ameren approval. Pick by what your utility specifies, since the fifth terminal position and the hasp are not field additions.
6) Can I use this Milbank socket for a 3-phase service?
No. The U2875-XT is a 1 phase, 60 hertz socket rated 200 continuous amperes. For a three phase service you need a socket built for three phase metering with the corresponding jaw arrangement; this one won't meter it correctly.
7) How many units can I meter with the Milbank 5-position ringless socket?
Five meter positions in one enclosure, which covers a five unit building or five separately billed spaces off a single 200 amp service point. For a fourplex where the utility wants a quadplex arrangement with grounded lever bypass, the U2875-XT-QG-AMS option is configured differently, so match the position count to the actual unit count before ordering.
8) How much wall space do I need for the Milbank U2875-XT meter socket?
The enclosure is 25.25 inches high with a 6 inch length dimension. Lay out the riser and service conductors around that footprint, and leave working clearance at the face for the utility to pull and set meters.
9) What does the lever bypass do on a meter socket, and do I need it?
The lever bypass on the U2875-XT lets the utility or a qualified tech shunt current around the meter socket jaws so a meter can be pulled and replaced without dropping the load. On multi-family and commercial metering it's usually the utility that dictates whether bypass is required, and many require lever bypass on 200 amp sockets. If your utility doesn't require it, a non-bypass socket is the simpler unit.
10) Why is this a ringless meter socket, and does it need a sealing ring?
Ringless means the cover itself secures over the socket without a separate meter ring, so there's no ring to order, lose, or seal. Utilities generally specify ringless or ring-type by territory, so confirm which style yours accepts before ordering. This one is ringless with twin large closing plates over the hub openings.
11) Are there any receptacles built into this Milbank meter socket for temporary power?
None. The enclosure carries zero receptacles, so it won't serve as a temp power pedestal. If you need convenience outlets on the service, specify a separate temp power unit or a socket model built with receptacles.
