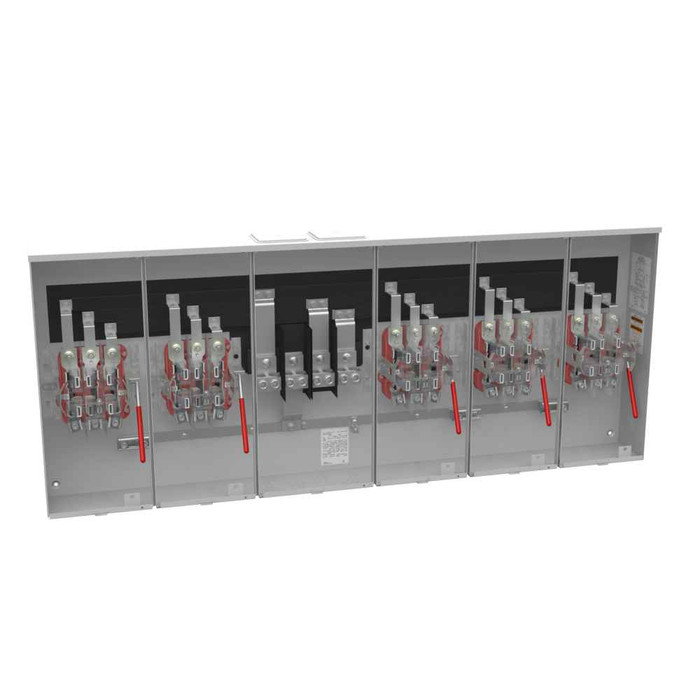

Milbank U2735-XT 7 Terminal Ringless Meter Socket 2 Large Closing Plates Lever Bypass 5 Position

Milbank 200A 3-Phase 5-Position Ringless Meter Socket with Lever Bypass

(No reviews yet) Write a Review

Model: U2735-XT-K8

In Stock (leaves warehouse same day if ordered before 3pm ET)

$5,110.53
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 200A 3-Phase 5-Position Ringless Meter Socket with Lever Bypass

Professional Multi-Position Metering Solution for Commercial Applications

The Milbank 200A 3-Phase 5-Position Ringless Meter Socket delivers reliable multi-tenant metering with professional-grade construction. Featuring G90 galvanized steel with powder coat finish and Type 3R enclosure rating, this UL Listed meter socket provides 200 continuous ampere capacity across 5 meter positions with convenient lever bypass functionality for service flexibility.

Professional Features & Benefits

  • 200 Continuous Ampere Rating: Handles substantial electrical loads for commercial and multi-unit residential applications with reliable capacity.
  • 5-Position Configuration: Accommodates multiple meters in a single enclosure, reducing installation complexity and space requirements.
  • Lever Bypass Provision: Enables safe meter removal and replacement without interrupting service to other positions.
  • Type 3R Enclosure Rating: Weather-resistant construction suitable for outdoor installations with protection against rain and ice.
  • G90 Galvanized Steel Construction: Durable material with powder coat finish provides long-term corrosion resistance and professional appearance.
  • 7 Terminal Ringless Design: Simplifies connections with overhead or underground cable entry through center wireway configuration.
  • UL Listed Certification: Meets rigorous safety standards for commercial electrical installations and code compliance.

Technical Specifications

  • Amperage Rating: 200 Continuous Ampere
  • Application: Meter Socket
  • Brand Name: Milbank
  • Bypass Provision: Lever Bypass
  • Cable Entry: Overhead or Underground with Center Wireway
  • Departent: Electrical
  • Equipment Ground: Ground Lug
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Twin Large Closing Plates
  • Insulation: Glass Polyester
  • Line Side Wire Range: Two 2 AWG - 600 kcmil
  • Load Side Wire Range: 6 AWG - 350 kcmil
  • Main Breaker Size: No Main Breaker
  • Number Of Jaws: 7 Terminal
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 5 Positions
  • Number Of Receptacles: 0
  • Phase: 3 Phase
  • Product Family Code: GHD2
  • Product Height: 25.25 IN
  • Product Length: 6 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 6L x 62.313W x25.25H
  • Product Type: Ringless Meter Socket
  • Standard: UL Listed;Type 3R
  • Unspsc Number: 39121102
  • Voltage Rating: 600 Volts Alternating Current
  • Width: 62.313 IN

Professional Applications

  • Multi-Unit Residential Properties
  • Commercial Buildings
  • Retail Centers
  • Office Complexes
  • Mixed-Use Developments
  • Industrial Facilities
  • Municipal Buildings

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather-resistant construction. The G90 galvanized steel with powder coat finish ensures long-term durability, while the professional 5-position design provides efficient multi-tenant metering solutions for demanding commercial applications.

Manufacturer Resources

Product Specs

Amperage Rating:
200 Continuous Ampere
Application:
Meter Socket
Brand Name:
Milbank
Bypass Provision:
Lever Bypass
Cable Entry:
Overhead or Underground with Center Wireway
Equipment Ground:
Ground Lug
Frequency Rating:
60 Hertz
Hub Closing Plate:
Twin Large Closing Plates
Insulation:
Glass Polyester
Line Side Wire Range:
Two 2 AWG - 600 kcmil
Load Side Wire Range:
6 AWG - 350 kcmil
Main Breaker Size:
No Main Breaker
Number Of Jaws:
7 Terminal
Number Of Main Breakers:
0
Number Of Meter Positions:
5 Positions
Number Of Receptacles:
0
Phase:
3 Phase
Product Family Code:
GHD2
Product Height:
25.25 IN
Product Length:
6 IN
Product Size:
6L x 62.313W x25.25H
Product Type:
Ringless Meter Socket
Standards:
UL Listed;Type 3R
Unspsc Number:
39121102
Voltage Rating:
600 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
200
Product Width:
62.313 IN
Department:
Electrical
Product Subgroup:
Metering & Meter Sockets
Insulation Type:
Glass Polyester
Hub Style:
Twin Large Closing Plates
Installation Category:
Surface Mount
Number of Phases:
3
Frequency:
60 hertz
Product Details:
Ringless Meter Socket
Number of Terminations:
7
Product Group:
Power Distribution

Milbank U2735-XT-K8 – Frequently Asked Questions

1) Will the Milbank U2735-XT meter socket work on a 3-phase 4-wire service?
The U2735-XT is a 3-phase socket with 7 terminal jaws per position, rated 600 volts AC at 60 hertz. Seven jaws is the standard configuration for 3-phase 4-wire network metering, so it takes 7-jaw meters, not 4-jaw single-phase ones. If your tenants are on single-phase service, this is the wrong socket.
2) Does this Milbank 5-position meter socket include a main breaker or main disconnect?
No main breaker is furnished and there are no main breaker positions in the U2735-XT. It is a metering-only enclosure with five 200 amp continuous positions, so your service disconnect and any tenant overcurrent protection have to be provided separately downstream or ahead of the socket. There are no convenience receptacles either.
3) What size feeders can I land in a Milbank U2735-XT meter socket?
Line side lugs take two 2 AWG through 600 kcmil conductors per phase, so parallel runs are accommodated. Load side terminals accept 6 AWG through 350 kcmil. There is a ground lug for the equipment grounding conductor. If you need a bigger load side termination, the U2735-XT-K8 version is furnished with a double connector rated 4 AWG to 600 kcmil.
4) How much wall space do I need for this 5-position meter socket?
Plan on a surface mounted footprint of 6L x 62.313W x 25.25H inches. That 62-inch dimension is the one that catches people out on retrofits, since a five-gang trough is wider than most existing single or two-position sockets. Confirm your wall run and required working clearance in front before you commit.
5) Does the lever bypass let me pull one tenant meter without killing power to the others?
That is the point of it. Each position has a lever bypass, so a meter can be pulled and replaced under bypass without dropping the other four tenants. For a property manager swapping meters in an occupied multi-tenant building, this is the difference between a routine service call and a scheduled outage notice.
6) Can I bring service in from overhead, or does this socket only take underground feed?
Both. Cable entry is overhead or underground through a center wireway, and the socket ships with twin large closing plates over the hub openings. Leave the plates in place for underground feed, or remove one and fit the appropriate hub for an overhead service mast. The hub itself is a separate item.
7) Can this Milbank ringless socket be mounted outdoors on a building exterior?
Yes. The enclosure carries a Type 3R rating and is UL Listed, which covers outdoor use against rain and ice. The shell is G90 galvanized steel with a powder coat finish for corrosion resistance. It is not rated for washdown or dust-tight indoor process areas.
8) What is the difference between the standard U2735-XT and the U2735-XT-K8?
Same 5-position, 7 terminal, 3-phase ringless socket with lever bypass in both cases. The K8 suffix adds a double connector rated 4 AWG to 600 kcmil, which matters if your load side conductors are larger than the 350 kcmil the standard termination accepts or you are landing parallel sets. Order the K8 when the feeder sizing calls for it; otherwise the standard version covers 6 AWG to 350 kcmil.
9) Ringless versus ring-type meter socket, which does my utility want?
A ringless socket like the U2735-XT uses a sealing cover over the meter instead of a locking ring, and most utilities specify one or the other, not both. Check your serving utility's approved equipment list before ordering, because a ringless enclosure will not accept a ring-type sealing arrangement. Milbank's ringless design here also simplifies the center wireway cable entry for overhead or underground feed.
10) Is 200 amps per position or total for the whole Milbank 5-gang socket?
The 200 continuous ampere rating is the socket's per-position meter rating at 600 volts AC. Total service capacity ahead of the trough is a separate calculation and is set by your service entrance equipment, not by this enclosure, since no main breaker is included here.
