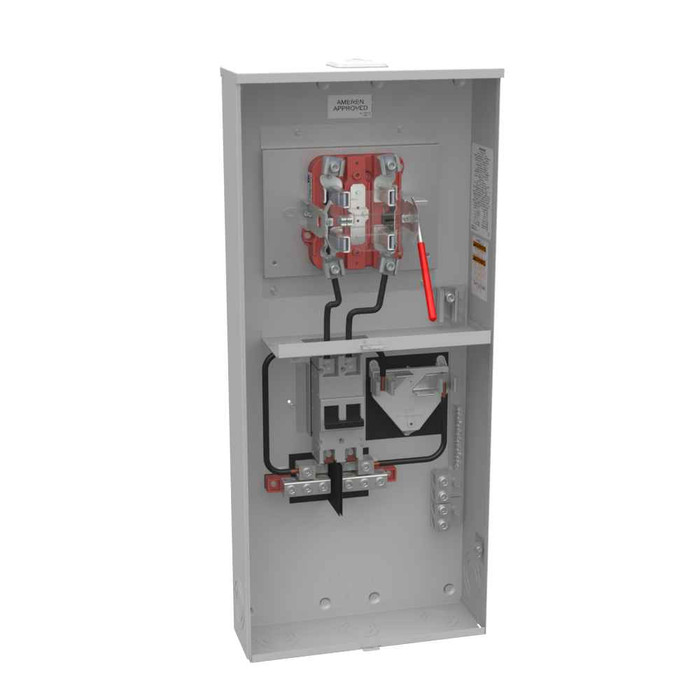

Milbank U4834-XL-200 5 Terminal Ringless Small Closing Plate 200A Meter Socket with 5th Terminal 9 O’clock Position and 100A Auxiliary Breaker Provision

Milbank 200A Ringless Meter Socket with Main Breaker 5 Terminal 1 Phase Surface Mount

(No reviews yet) Write a Review

Model: U4834-XL-200-5T9

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,423.61
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 200A Ringless Meter Socket with Main Breaker 5 Terminal 1 Phase Surface Mount

Professional electrical metering solution with integrated main breaker protection

The Milbank 200A Ringless Meter Socket delivers reliable electrical metering and main breaker protection in a single professional unit. This 1 phase surface mount meter socket features 5 terminal configuration with integrated 200 ampere main breaker, constructed with G90 galvanized steel and powder coat finish for durability. The Type 3R rated enclosure provides weather resistance for outdoor installations while accommodating both overhead and underground cable entry methods.

Professional Features & Benefits

  • 200 Continuous Ampere Rating: Handles substantial electrical loads for residential and light commercial applications with reliable current capacity.
  • Integrated Main Breaker Protection: Built-in 200A main breaker provides essential overcurrent protection and convenient disconnect capability.
  • 5 Terminal Ringless Design: Advanced terminal configuration eliminates meter rings while providing secure connections and enhanced safety.
  • Type 3R Weather Rating: Outdoor-rated enclosure protects internal components from rain, sleet, and ice damage in exterior installations.
  • G90 Galvanized Steel Construction: Corrosion-resistant material with powder coat finish ensures long-term durability and professional appearance.
  • Flexible Cable Entry: Accommodates both overhead and underground service connections for versatile installation options.
  • UL Listed Safety: Meets rigorous safety standards for reliable operation and code compliance in professional installations.

Technical Specifications

  • Amperage Rating: 200 Continuous Ampere
  • Application: Meter Socket With Main
  • Brand Name: Milbank
  • Bypass Provision: Lever Bypass
  • Cable Entry: Overhead or Underground
  • Departent: Electrical
  • Equipment Ground: Ground Bar
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Small Closing Plate
  • Insulation: Glass Polyester
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Load Side Wire Range: 1 AWG - 300 kcmil
  • Main Breaker Size: One 200 Ampere Main Breaker
  • Number Of Jaws: 5 Terminal
  • Number Of Main Breakers: 1
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: MMHD
  • Product Height: 39 IN
  • Product Length: 5.5 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 5.5L x 17W x39H
  • Product Type: Ringless Meter Socket
  • Special Features: Ameren Energy
  • Standard: UL Listed;Type 3R
  • Terminal: Lay in
  • Unspsc Number: 39121102
  • Voltage Rating: Up to 240 Volts Alternating Current
  • Width: 17 IN

Professional Applications

  • Residential Service Entrance Applications
  • Light Commercial Electrical Services
  • Multi-Unit Residential Properties
  • Professional Office Buildings
  • Retail and Commercial Establishments
  • Utility Company Metering Requirements
  • Electrical Contractor Installations

Why Choose Milbank Quality?

Milbank delivers proven reliability through UL Listed safety certification and Type 3R weather protection. The G90 galvanized steel construction with powder coat finish ensures lasting durability in demanding outdoor environments, while the professional 5 terminal ringless design provides enhanced safety and performance for critical electrical metering applications.

Manufacturer Resources

Product Specs

Amperage Rating:
200 Continuous Ampere
Application:
Meter Socket With Main
Brand Name:
Milbank
Bypass Provision:
Lever Bypass
Cable Entry:
Overhead or Underground
Equipment Ground:
Ground Bar
Frequency Rating:
60 Hertz
Hub Closing Plate:
Small Closing Plate
Insulation:
Glass Polyester
Line Side Wire Range:
6 AWG - 350 kcmil
Load Side Wire Range:
1 AWG - 300 kcmil
Main Breaker Size:
One 200 Ampere Main Breaker
Number Of Jaws:
5 Terminal
Number Of Main Breakers:
1
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
MMHD
Product Height:
39 IN
Product Length:
5.5 IN
Product Size:
5.5L x 17W x39H
Product Type:
Ringless Meter Socket
Special Features:
Ameren Energy
Standards:
UL Listed;Type 3R
Terminal:
Lay in
Unspsc Number:
39121102
Voltage Rating:
Up to 240 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
200
Product Width:
17 IN
Department:
Electrical
Product Subgroup:
Electrical
Insulation Type:
Glass Polyester
Hub Style:
Small Closing Plate
Installation Category:
Surface Mount
Terminal Type:
Lay In
Number of Phases:
1
Frequency:
60 hertz
Product Details:
Ringless Meter Socket
Number of Terminations:
5
Product Group:
Metering & Service Entrance

Milbank U4834-XL-200-5T9 – Frequently Asked Questions

1) Will the Milbank U4834-XL-200 work on a 200A single phase residential service at 120/240V?
Yes. The U4834-XL-200-5T9 is rated 200 continuous amperes, single phase, 60 hertz, up to 240 volts AC, with one meter position and one 200 ampere main breaker built in. That covers a standard 120/240V single phase residential or light commercial service entrance. It is not a three phase socket and it is not rated above 240 volts.
2) What size service conductors can I land in this Milbank meter socket with main?
Line side lay-in terminals take 6 AWG through 350 kcmil, and the load side takes 1 AWG through 300 kcmil. So a typical 200A service run of 4/0 aluminum or 2/0 copper lands on the line side without adapters, and the load side will accept the same feeder sizes up to 300 kcmil. Terminals are lay-in type, so conductors drop in rather than threading through a lug barrel.
3) What is the difference between the standard Milbank U4834-XL-200-5T9 and the -AMS version?
Two build options exist: the standard U4834-XL-200-5T9 and U4834-XL-200-5T9-AMS, which is built to the Ameren utility specification. Electrically and dimensionally they are the same 200A, 5 terminal, ringless unit; the AMS suffix is what Ameren territory inspectors and the utility's approved equipment list call for. If your serving utility is Ameren, order the AMS. Anywhere else, the standard part is the one to buy.
4) Why does this meter socket have 5 jaws instead of 4?
The fifth jaw is for utilities that require a 5 terminal socket, typically for a network or neutral-sensing meter. This Milbank unit is a 5 terminal ringless socket with the 5th terminal at the 9 o'clock position. If your utility spec calls for a 4 jaw socket, this is not the right can; the meter base configuration has to match what the serving utility will set a meter in.
5) Does this Milbank socket take an overhead service drop or an underground lateral?
Either one. Cable entry is rated for overhead or underground service. It ships with a small closing plate in the hub opening, so for an overhead drop you pull the closing plate and install the hub sized to your service raceway; for an underground lateral you leave the plate in place and bring the conduit in through a bottom knockout. The hub is a separate order.
6) Can this Milbank 200A socket be installed outdoors, and how does it mount?
It is built for exterior service entrance work: Type 3R rated and UL Listed, with a G90 galvanized steel enclosure and powder coat finish to handle rain, sleet and ice. Mounting is surface mount, so it fastens flat to a wall or a meter board rather than recessing into the wall cavity. For a flush installation you need a flush mount can instead.
7) How much wall space do I need for the Milbank U4834-XL-200 meter main?
The enclosure measures 5.5L x 17W x 39H inches, so plan on roughly 17 inches of wall width and 39 inches of vertical run, with 5.5 inches of projection off the wall. Set the height so the meter face lands in the utility's required window, usually between 4 and 6 feet above finished grade.
8) Can the utility pull the meter without killing power to the house on this unit?
It has a lever bypass, so the meter can be removed and the socket bypassed under load without interrupting service to the customer. Many utilities require bypass on 200A sockets for meter changes and testing. There is also a ground bar included for the equipment grounding conductor.
9) Do I still need a separate main breaker panel downstream of this meter socket?
No service disconnect is needed downstream, because the 200A main breaker in this can serves as the service disconnect and overcurrent protection. What you feed from it is a main lug only panel for branch circuits. The socket itself has no receptacles and no branch breaker spaces, so all distribution happens in the downstream panel.
10) Is a ringless meter socket the right choice, or should I get a ring type?
Ringless is a utility preference, not a performance difference. A ringless can uses a hinged or lift-off cover that the utility seals directly, while a ring type uses a separate locking ring around the meter. This Milbank unit is ringless with a 5 terminal base. Check which style your serving utility accepts before ordering, because a ringless can will not be sealed by a utility that specifies ring type.
