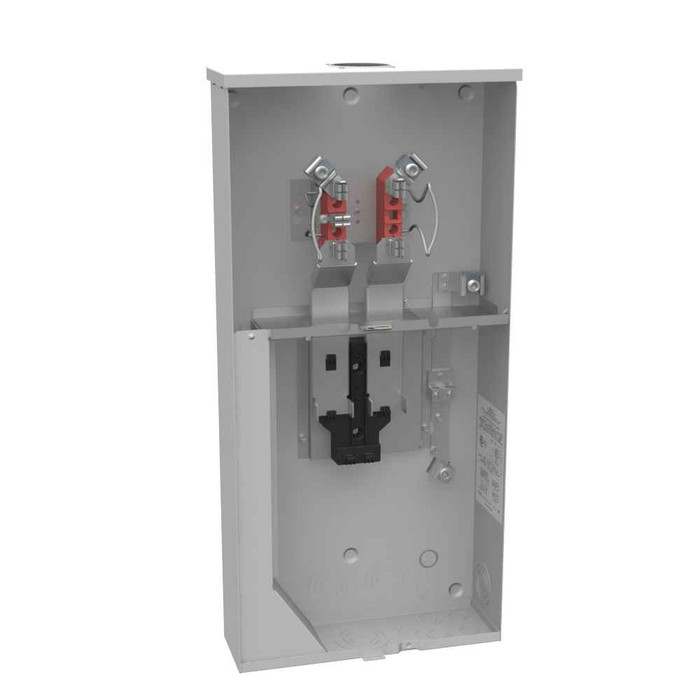

Milbank U5844-RL 4 Terminal Ringless Small Hub Open 1-main Breaker Provision

Milbank 200A 1-Phase Ringless Meter Socket with Main Breaker Provision - 4 Terminal Surface Mount

(No reviews yet) Write a Review

Model: U5844-RL

In Stock (leaves warehouse same day if ordered before 3pm ET)

$718.99
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 200A 1-Phase Ringless Meter Socket with Main Breaker Provision - 4 Terminal Surface Mount

Professional electrical metering solution with main breaker provision for versatile installations

The Milbank 200A 1-Phase Ringless Meter Socket delivers reliable electrical metering with main breaker provision capability. Featuring 4 terminal configuration and surface mount design, this UL Listed Type 3R enclosure provides professional-grade performance for residential and commercial applications. Constructed with G90 galvanized steel and powder coat finish for durability, supporting overhead or underground cable entry with glass polyester insulation.

Professional Features & Benefits

  • 200 Continuous Ampere Rating: Handles substantial electrical loads with reliable current capacity for demanding applications
  • 4 Terminal Ringless Design: Simplifies installation and maintenance with accessible terminal configuration
  • Main Breaker Provision: Accommodates main breaker installation for enhanced electrical protection and control
  • Type 3R UL Listed Enclosure: Weather-resistant construction meets safety standards for outdoor installations
  • G90 Galvanized Steel Construction: Powder coat finish provides superior corrosion resistance and long-term durability
  • Overhead/Underground Compatible: Flexible cable entry options support various installation requirements
  • Glass Polyester Insulation: Professional-grade insulation ensures safe electrical isolation and performance

Technical Specifications

  • Amperage Rating: 200 Continuous Ampere
  • Application: Meter Socket With Main
  • Brand Name: Milbank
  • Bypass Provision: No Bypass
  • Cable Entry: Overhead or Underground
  • Departent: Electrical
  • Equipment Ground: 2 Barrel Ground Lug
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Small Hub Opening
  • Insulation: Glass Polyester
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Main Breaker Size: Breaker Provision
  • Number Branch Circuits: 1
  • Number Of Jaws: 4 Terminal
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: MTMN
  • Product Height: 30 IN
  • Product Length: 4.5 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 4.5L x 14.01W x30H
  • Product Type: Ringless Meter Socket
  • Standard: UL Listed;Type 3R
  • Terminal: Lay in
  • Unspsc Number: 39121102
  • Voltage Rating: Up to 240 Volts Alternating Current
  • Width: 14.01 IN

Professional Applications

  • Residential electrical service installations
  • Commercial building electrical systems
  • Multi-unit residential properties
  • Small commercial facilities
  • Electrical service upgrades
  • New construction projects
  • Utility metering applications

Why Choose Milbank Quality?

Milbank delivers professional-grade electrical solutions with UL Listed safety certification and Type 3R weather resistance. The G90 galvanized steel construction with powder coat finish ensures long-term durability and reliable performance in demanding electrical applications.

Manufacturer Resources

Product Specs

Amperage Rating:
200 Continuous Ampere
Application:
Meter Socket With Main
Brand Name:
Milbank
Bypass Provision:
No Bypass
Cable Entry:
Overhead or Underground
Equipment Ground:
2 Barrel Ground Lug
Frequency Rating:
60 Hertz
Hub Closing Plate:
Small Hub Opening
Insulation:
Glass Polyester
Line Side Wire Range:
6 AWG - 350 kcmil
Main Breaker Size:
Breaker Provision
Number Branch Circuits:
1
Number Of Jaws:
4 Terminal
Number Of Main Breakers:
0
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
MTMN
Product Height:
30 IN
Product Length:
4.5 IN
Product Size:
4.5L x 14.01W x30H
Product Type:
Ringless Meter Socket
Standards:
UL Listed;Type 3R
Terminal:
Lay in
Unspsc Number:
39121102
Voltage Rating:
Up to 240 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
200
Product Width:
14.01 IN
Department:
Electrical
Product Subgroup:
Metering & Meter Sockets
Product Group:
Power Distribution

Milbank U5844-RL – Frequently Asked Questions

1) Does the Milbank U5844-RL meter socket come with a main breaker installed?
No breaker is included. The U5844-RL is a breaker provision socket only, with zero main breakers factory installed and space to add one. You order the breaker separately, and it has to be a breaker that mounts in Milbank's provision. The socket itself is rated 200 continuous amps, single phase, up to 240VAC at 60 Hz.
2) Will a 4 terminal ringless socket work for my 200A single phase residential service?
Yes for a standard 120/240V single phase, 3 wire residential service. Four jaws is the normal configuration for that service: two line, two load, with the neutral landing on the lug. The U5844-RL is single phase, rated up to 240 volts AC, 60 Hz, one meter position. If your utility requires a 5 jaw (5th terminal) socket for network or 120/208 service, this is not the right part.
3) Can this meter socket be used for an underground service lateral, or is it overhead only?
Either. The U5844-RL accepts overhead or underground cable entry. It ships with a small hub opening and closing plate, so for an overhead drop you fit a hub into that opening, and for an underground feed you leave the top closed and bring conduit in the bottom. Confirm the hub size your utility wants, since the hub itself is a separate part.
4) Is this meter socket rated for outdoor mounting on an exterior wall?
Yes. The enclosure is UL Listed and Type 3R, which is the rain and sleet rated classification used for outdoor service equipment, and the body is G90 galvanized steel with a powder coat finish for corrosion resistance. That is the standard construction for an exterior wall mount service can.
5) Does the U5844-RL have a meter bypass for pulling the meter under load?
No bypass. The U5844-RL is specified with no bypass provision, so the meter has to come out dead. Utilities that require a lever or horn bypass for commercial metering will reject this one, and you want a bypass model instead. Also note there is no ring, it is a ringless socket, so the utility sealing cover is what secures the meter.
6) How much wall space do I need for the Milbank U5844-RL meter socket?
Plan for a surface mounted footprint of 4.5L x 14.01W x 30H inches. The 30 inch height is the one that catches people, since meter center height has to land in the utility's window once the can is mounted. It surface mounts, so no wall cut-in or flush trim is needed.
7) Where does the grounding electrode conductor land in this Milbank socket?
There is a 2 barrel ground lug factory installed for the equipment ground, giving you two landing points in the can. Insulation inside is glass polyester, which carries the jaw assembly and keeps the line and load sides isolated.
8) Is this a combination meter main panel, or do I still need a separate load center?
It is a meter socket with main breaker provision, not a loaded meter main. There is one branch circuit position and no receptacles, so there is no distribution section for feeder breakers. Once the main is added, you feed a separate load center downstream for branch circuits.
9) What exact Milbank part number should I order for a 200A ringless 4 terminal socket with breaker provision?
Milbank U5844-RL. That covers the 200A, single phase, 4 terminal ringless socket with small hub opening and one main breaker provision, in a surface mount Type 3R can. It is a single model, so there are no finish or size options to pick on the order.
