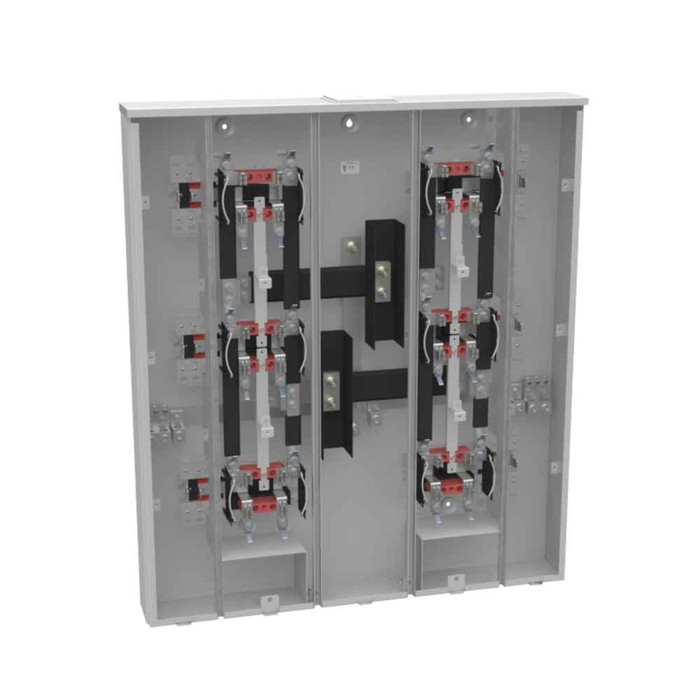

Milbank U2866-X 4 Terminal Ringless Meter Socket Large Closing Plate 6 Position 6-200 Ampere Main Breaker Provision

Milbank 6-Position Ringless Meter Socket with Main Breaker Provision 200A 1-Phase Surface Mount

(No reviews yet) Write a Review

Model: U2866-X-KK-PED

In Stock (leaves warehouse same day if ordered before 3pm ET)

$4,271.71
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 6-Position Ringless Meter Socket with Main Breaker Provision 200A 1-Phase Surface Mount

Professional Multi-Tenant Metering Solution with Main Breaker Provision

The Milbank 6-Position Ringless Meter Socket delivers reliable multi-tenant electrical metering with 200 continuous ampere rating and 1-phase 240V AC service. Featuring G90 galvanized steel construction with powder coat finish and Type 3R enclosure rating, this surface mount unit provides durable performance for residential and commercial applications. The 4-terminal ringless design with large closing plate accommodates overhead or underground cable entry with ground lug equipment grounding.

Professional Features & Benefits

  • 200 Continuous Ampere Rating: Handles substantial electrical loads for multi-unit residential and commercial metering applications with reliable capacity.
  • 6-Position Meter Configuration: Accommodates up to 6 individual meter installations for efficient multi-tenant electrical service management.
  • G90 Galvanized Steel with Powder Coat: Provides superior corrosion resistance and long-lasting durability in outdoor installations.
  • Type 3R Enclosure Rating: Ensures protection against rain, sleet, and ice damage for reliable outdoor performance.
  • 4-Terminal Ringless Design: Simplifies meter installation and removal without requiring specialized tools or ring terminals.
  • Main Breaker Provision: Ready for main breaker installation to provide overcurrent protection and service disconnect capability.
  • UL Listed Certification: Meets rigorous safety standards for professional electrical installations and code compliance.

Technical Specifications

  • Amperage Rating: 200 Continuous Ampere
  • Application: Meter Socket With Main
  • Brand Name: Milbank
  • Cable Entry: Overhead or Underground
  • Departent: Electrical
  • Equipment Ground: Ground Lug
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Large Closing Plate
  • Insulation: Glass Polyester
  • Main Breaker Size: Breaker Provision
  • Number Branch Circuits: 6
  • Number Of Jaws: 4 Terminal
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 6 Positions
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: CU20
  • Product Height: 41 IN
  • Product Length: 4.844 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 4.844L x 36W x41H
  • Product Type: Ringless Meter Socket
  • Special Features: Commonwealth Edison Chicago Housing Authority
  • Standard: UL Listed;Type 3R
  • Terminal: 3/8 Inch Stud
  • Unspsc Number: 39121102
  • Voltage Rating: Up to 240 Volts Alternating Current
  • Width: 36 IN

Professional Applications

  • Multi-Unit Residential Properties
  • Apartment Buildings and Condominiums
  • Commercial Strip Centers
  • Mixed-Use Developments
  • Multi-Tenant Office Buildings
  • Retail Shopping Centers
  • Housing Authority Projects

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather protection for demanding multi-tenant metering applications. The robust G90 galvanized steel construction with powder coat finish ensures long-term durability, while the 4-terminal ringless design and large closing plate provide professional installation flexibility for overhead or underground service connections.

Manufacturer Resources

Product Specs

Amperage Rating:
200 Continuous Ampere
Application:
Meter Socket With Main
Brand Name:
Milbank
Cable Entry:
Overhead or Underground
Equipment Ground:
Ground Lug
Frequency Rating:
60 Hertz
Hub Closing Plate:
Large Closing Plate
Insulation:
Glass Polyester
Main Breaker Size:
Breaker Provision
Number Branch Circuits:
6
Number Of Jaws:
4 Terminal
Number Of Main Breakers:
0
Number Of Meter Positions:
6 Positions
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
CU20
Product Height:
41 IN
Product Length:
4.844 IN
Product Size:
4.844L x 36W x41H
Product Type:
Ringless Meter Socket
Special Features:
Commonwealth Edison Chicago Housing Authority
Standards:
UL Listed;Type 3R
Terminal:
3/8 Inch Stud
Unspsc Number:
39121102
Voltage Rating:
Up to 240 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
200
Product Width:
36 IN
Department:
Electrical
Product Subgroup:
Electrical
Insulation Type:
Glass Polyester
Hub Style:
Large Closing Plate
Installation Category:
Surface Mount
Terminal Type:
3/8 Inch Stud
Number of Phases:
1
Product Details:
Ringless Meter Socket
Frequency:
60 hertz
Number of Terminations:
4
Product Group:
Metering & Service Entrance

Milbank U2866-X-KK-PED – Frequently Asked Questions

1) Does the Milbank U2866-X meter socket come with main breakers installed?
No. The U2866-X is supplied with a main breaker provision only, and the number of main breakers is zero. You get the space and mounting provision for a main breaker, but the breaker itself has to be ordered separately. Plan that into the job so you are not short a device at rough-in.
2) How many tenants can I meter with the Milbank 6-position ringless socket, and what is the amp rating per position?
Six meter positions with six branch circuits, rated 200 continuous amperes at up to 240 volts AC, 60 Hz, single phase. It is built for multi-tenant service: apartments, condos, strip centers, and mixed-use buildings where each unit needs its own meter off one service.
3) Will a 4-terminal ringless socket work on my utility's service, or do I need 5-jaw?
The U2866-X uses 4-terminal ringless jaws, which is the standard arrangement for single-phase 120/240V three-wire residential and light commercial metering. If your utility specifies a 5-jaw socket (typically for network or 120/208 single-phase service off a three-phase system), this is not the right socket. Confirm the jaw count on the utility's approved-equipment sheet before ordering.
4) Can this Milbank socket be installed outdoors on an exterior wall?
Yes. The enclosure is Type 3R and UL Listed, so it is rated for outdoor use against rain, sleet, and ice. The shell is G90 galvanized steel with a powder coat finish for corrosion resistance, which is what you want on an exposed exterior wall or a service pole location.
5) Does the U2866-X accept overhead service drop and underground lateral, or do I have to pick one?
Either. Cable entry is listed as overhead or underground, and the unit ships with a large closing plate over the hub opening so you can fit the hub your utility requires for an overhead drop, or leave the plate in place and bring conduit up from an underground lateral.
6) What is the difference between the U2866-X, the -KK, and the -PED versions?
Same 6-position 200A ringless socket, different options. U2866-X is the base unit. U2866-X-HSP adds a stainless steel hasp for padlocking. U2866-X-KK adds horn bypass, which lets the utility pull a meter under load without dropping service. U2866-X-KK-PED is the horn bypass unit configured for pedestal mounting instead of wall surface mount, and U2866-X-KK-PED-CECHA is the vertical pedestal version approved for Commonwealth Edison and Chicago Housing Authority work.
7) I have a ComEd job in Chicago. Which version of this Milbank 6-gang socket do I order?
Order the U2866-X-KK-PED-CECHA. That is the horn bypass, vertical pedestal mount configuration carrying the Commonwealth Edison and Chicago Housing Authority approval. The base surface-mount U2866-X does not carry that designation, so on a ComEd or CHA-spec job the CECHA variant is the one that gets signed off.
8) Can I use this Milbank socket on a 3-phase service?
No. This is a single-phase unit, 1 phase, rated up to 240 volts AC at 60 Hz with 4-terminal jaws. For a three-phase building service you need a three-phase socket with the jaw configuration your utility specifies. Putting a single-phase 4-jaw socket on a three-phase service will not pass inspection.
9) What lugs and terminals does this meter socket use for service conductors and grounding?
Line and load terminations are 3/8 inch stud type, four terminations total, and equipment grounding is by ground lug. Glass polyester is used for the insulating base. Size your conductors and lug hardware to the 3/8 inch stud, not to a set-screw lug.
10) Why choose a ringless meter socket over a ring-type one?
Ringless means the meter is held by a large sealing cover rather than a separate locking ring, so a meter can be set or pulled without handling ring hardware. The choice is not really yours though, it is the utility's: most serving utilities specify one style or the other for their territory. The U2866-X is ringless with a 4-terminal jaw arrangement, so verify your utility accepts ringless before you buy.
11) Does this 6-gang socket include tenant branch breakers or a receptacle?
No receptacles are included and no main breakers are factory installed. The unit provides six metered positions with branch circuit provisions and a main breaker provision. Individual tenant disconnects and the main device are ordered separately.
