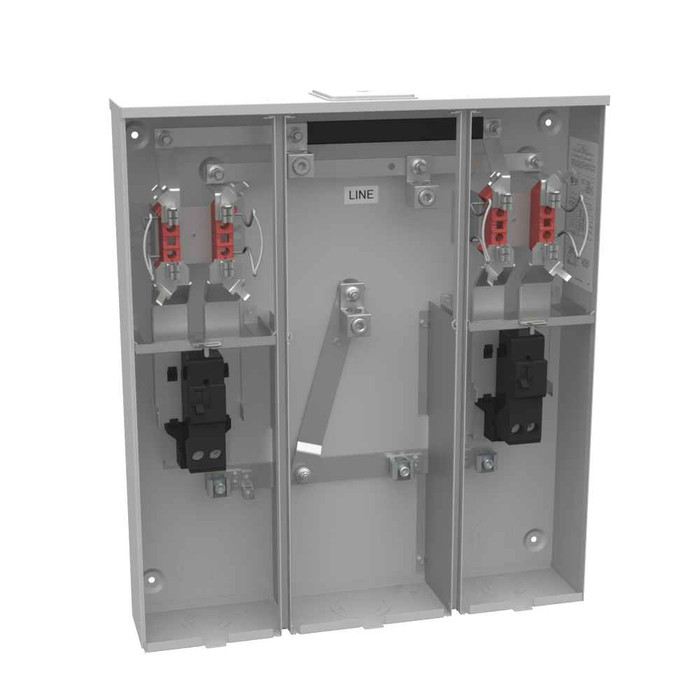

Milbank 2-Position Ringless Meter Socket with Main Breaker Provision 200A 1-Phase Surface Mount System

Milbank 2-Position Ringless Meter Socket with Main Breaker Provision 200A 1-Phase Surface Mount System

Professional dual-meter electrical service solution with main breaker provisions

The Milbank 2-Position Ringless Meter Socket delivers reliable electrical service distribution for dual-meter applications requiring 200 continuous ampere capacity. This 1-phase surface mount system features G90 galvanized steel construction with powder coat finish and glass polyester insulation, providing durable performance for overhead or underground cable entry configurations with main breaker provisions and ground lug equipment grounding.

Professional Features & Benefits

• 200 Continuous Ampere Rating: Provides substantial electrical capacity for demanding dual-meter service applications with reliable current handling.
• 2-Position Meter Configuration: Accommodates dual metering requirements for multi-unit properties or separate service monitoring needs.
• G90 Galvanized Steel Construction: Delivers superior corrosion resistance and structural integrity with professional powder coat finish for long-term durability.
• Type 3R Rating: Ensures reliable outdoor performance with protection against rain, sleet, and ice formation for versatile installation locations.
• Ringless Design: Simplifies meter installation and removal procedures while maintaining secure electrical connections and professional appearance.
• UL Listed Certification: Meets rigorous safety and performance standards for professional electrical installations and code compliance.
• Flexible Cable Entry: Supports both overhead and underground service configurations for adaptable installation requirements.

Technical Specifications

• Amperage Rating: 200 Continuous Ampere
• Application: Meter Socket With Main
• Brand Name: Milbank
• Cable Entry: Overhead or Underground
• Departent: Electrical
• Equipment Ground: Ground Lug
• Frequency Rating: 60 Hertz
• Hub Closing Plate: Large Closing Plate
• Insulation: Glass Polyester
• Load Side Wire Range: 1 AWG - 300 kcmil
• Number Branch Circuits: 2
• Number Of Meter Positions: 2 Positions
• Number Of Receptacles: 0
• Phase: 1 Phase
• Product Family Code: CU20
• Product Height: 30 IN
• Product Length: 5.125 IN
• Product Material: G90 Galvanized Steel with Powder Coat Finish
• Product Mounting: Surface Mount
• Product Size: 5.125L x 26.5W x30H
• Product Type: Ringless Meter Socket
• Standard: UL Listed;Type 3R
• Unspsc Number: 39121102
• Voltage Rating: Up to 240 Volts Alternating Current
• Width: 26.5 IN

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Multi-Unit Residential Properties
• Duplex and Townhome Developments
• Commercial Buildings with Separate Tenant Metering
• Mixed-Use Facilities
• Professional Office Complexes
• Retail Strip Centers
• Light Industrial Facilities

Why Choose Milbank Quality?

Milbank delivers proven reliability through UL Listed certification and Type 3R weather protection, ensuring dependable performance in demanding electrical service applications. The robust G90 galvanized steel construction with powder coat finish provides long-term durability and professional appearance for critical electrical infrastructure installations.
