Milbank 4-Position Ringless Me...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$2,717.29

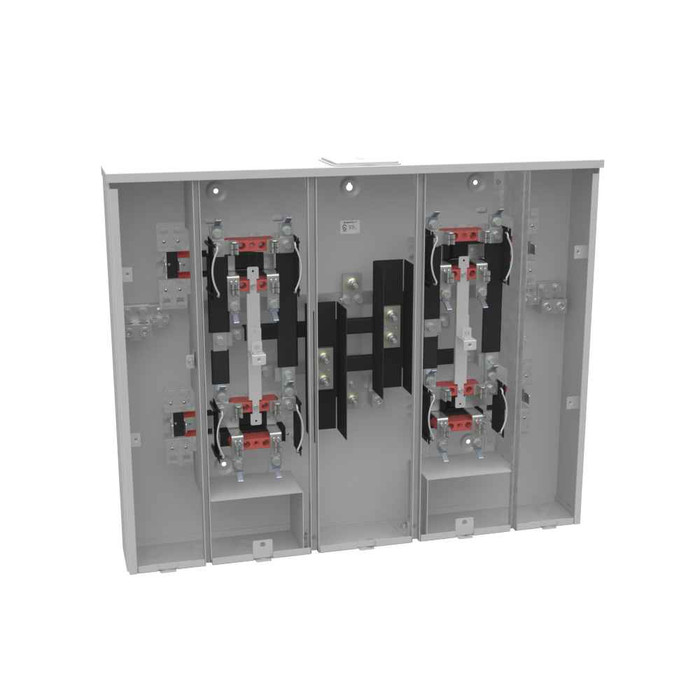

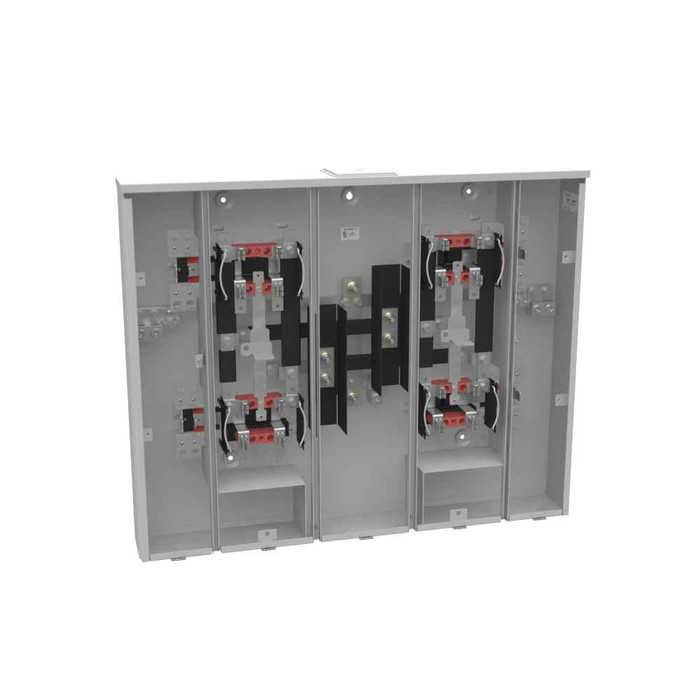

Milbank U2864-X 4-5 Terminal Ringless Meter Socket Large Closing Plate 4 Position 4-200 Ampere Main Breaker Provision Double Connector 4-600kcmil

Milbank 4-Position Ringless Meter Socket with Main Breaker Provision 200A 240V Single Phase Surface Mount

(No reviews yet) Write a Review

Model: U2864-X-KK-PED

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,717.29
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 4-Position Ringless Meter Socket with Main Breaker Provision 200A 240V Single Phase Surface Mount

Professional Multi-Tenant Electrical Metering Solution

The Milbank 4-Position Ringless Meter Socket delivers reliable electrical metering for multi-unit residential and commercial applications. This surface-mount unit features 200 continuous ampere rating with single phase 240V capacity, constructed from G90 galvanized steel with powder coat finish for long-lasting durability. The large closing plate design accommodates overhead or underground cable entry with 6 AWG to 350 kcmil load side wire range.

Professional Features & Benefits

  • 200 Continuous Ampere Rating: Provides robust electrical capacity for demanding multi-tenant applications with reliable current handling.
  • 4-Position Configuration: Enables efficient metering of multiple units from a single centralized location, reducing installation complexity.
  • G90 Galvanized Steel Construction: Delivers superior corrosion resistance and structural integrity for long-term outdoor performance.
  • UL Listed Type 3R Rating: Ensures compliance with safety standards and weather-resistant protection for outdoor installations.
  • Flexible Cable Entry: Accommodates both overhead and underground service connections for versatile installation options.
  • Main Breaker Provision: Allows for integrated overcurrent protection installation to enhance system safety and code compliance.
  • Glass Polyester Insulation: Provides excellent electrical isolation and thermal performance for safe, reliable operation.

Technical Specifications

  • Amperage Rating: 200 Continuous Ampere
  • Application: Meter Socket With Main
  • Brand Name: Milbank
  • Cable Entry: Overhead or Underground
  • Departent: Electrical
  • Equipment Ground: Ground Lug
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Large Closing Plate
  • Insulation: Glass Polyester
  • Load Side Wire Range: 6 AWG - 350 kcmil
  • Main Breaker Size: Breaker Provision
  • Number Branch Circuits: 4
  • Number Of Meter Positions: 4 Positions
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: CU20
  • Product Height: 29 IN
  • Product Length: 4.844 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 4.844L x 36W x29H
  • Product Type: Ringless Meter Socket
  • Special Features: Commonwealth Edison Chicago Housing Authority
  • Standard: UL Listed;Type 3R
  • Terminal: 3/8 Inch Stud
  • Unspsc Number: 39121102
  • Voltage Rating: Up to 240 Volts Alternating Current
  • Width: 36 IN

Professional Applications

  • Multi-Unit Residential Properties
  • Apartment Buildings and Condominiums
  • Commercial Strip Centers
  • Small Office Buildings
  • Retail Establishments
  • Mixed-Use Developments
  • Housing Authority Projects

Why Choose Milbank Quality?

Milbank delivers proven reliability through UL Listed Type 3R certification and robust G90 galvanized steel construction with powder coat finish. The Commonwealth Edison Chicago Housing Authority special features designation demonstrates compliance with demanding municipal utility standards, ensuring long-term performance in critical electrical infrastructure applications.

Manufacturer Resources

Product Specs

Amperage Rating:
200 Continuous Ampere
Application:
Meter Socket With Main
Brand Name:
Milbank
Cable Entry:
Overhead or Underground
Equipment Ground:
Ground Lug
Frequency Rating:
60 Hertz
Hub Closing Plate:
Large Closing Plate
Insulation:
Glass Polyester
Load Side Wire Range:
6 AWG - 350 kcmil
Main Breaker Size:
Breaker Provision
Number Branch Circuits:
4
Number Of Meter Positions:
4 Positions
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
CU20
Product Height:
29 IN
Product Length:
4.844 IN
Product Size:
4.844L x 36W x29H
Product Type:
Ringless Meter Socket
Special Features:
Commonwealth Edison Chicago Housing Authority
Standards:
UL Listed;Type 3R
Terminal:
3/8 Inch Stud
Unspsc Number:
39121102
Voltage Rating:
Up to 240 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
200
Product Width:
36 IN
Department:
Electrical
Product Subgroup:
Electrical
Insulation Type:
Glass Polyester
Hub Style:
Large Closing Plate
Installation Category:
Surface Mount
Terminal Type:
3/8 Inch Stud
Number of Phases:
1
Frequency:
60 hertz
Product Details:
Ringless Meter Socket
Product Group:
Metering & Service Entrance

Milbank U2864-X-KK-PED – Frequently Asked Questions

1) Will the Milbank U2864-X meter socket handle four apartment units on a single 240V service?
Four metering positions, single phase, up to 240 volts AC at 60 Hertz, with four branch circuits behind them. That covers a four-unit building fed from one service point. It's rated 200 continuous amperes, so the service feeding it and the main breaker installed in the provision have to be sized within that. If the building has more than four units, you need a larger position count, not this one.
2) Does the Milbank U2864-X come with a main breaker installed?
No. The U2864-X is built with a main breaker provision, meaning the space and mounting are there but the breaker itself is a separate order. Plan on specifying the main breaker alongside the socket, sized for the 200 ampere continuous rating and the single phase 240 volt service.
3) What wire size can I land in the Milbank U2864-X load side terminals?
Load side wire range is 6 AWG through 350 kcmil, onto 3/8 inch stud terminals. That span covers typical 100A unit feeders up through heavy conductors, so the same enclosure works whether you are feeding small apartments or larger commercial tenant panels. Equipment ground is a ground lug.
4) Can the Milbank U2864-X be mounted outdoors on an exterior wall?
Yes, it's UL Listed and Type 3R, which is the rain-tight outdoor rating for this class of enclosure. The body is G90 galvanized steel with a powder coat finish, and internal insulation is glass polyester. Surface mount only in the standard configuration.
5) Does the U2864-X work for underground service, or only overhead?
Both. Cable entry on the U2864-X is overhead or underground, and it ships with a large closing plate at the hub opening, so you punch or fit the hub for an overhead mast or leave it closed and bring the lateral in from below.
6) What's the difference between the U2864-X options: horn bypass, 5 terminal, hasp, pedestal?
Six build options on the U2864-X, and your utility usually dictates which. U2864-X is the base build. U2864-X-HSP adds a stainless steel hasp for padlocking. U2864-X-KK is the horn bypass version, letting the meter be pulled without dropping power. U2864-X-KK-5T is horn bypass with a 5 terminal vertical arrangement, used where the utility requires a neutral terminal in the socket. U2864-X-KK-PED is horn bypass built for pedestal mounting instead of a wall. U2864-X-KK-PED-CECHA is the pedestal horn bypass version carrying the Commonwealth Edison Chicago Housing Authority approval. Check the utility's approved equipment list before you pick.
7) Is the Milbank U2864-X approved for ComEd territory in Chicago?
The U2864-X-KK-PED-CECHA build is the Commonwealth Edison Chicago Housing Authority approved version, pedestal mount with horn bypass. If the job is in ComEd territory or a CHA property, that's the part number to specify rather than the base U2864-X.
8) Can I use the Milbank U2864-X on a three phase service?
No. It's a single phase unit rated up to 240 volts AC at 60 Hertz. A three phase building needs a three phase socket, and dropping this on a 208Y/120 three phase service is the wrong equipment.
9) How much wall space do I need for a 4-position Milbank ringless meter socket?
The U2864-X measures 4.844 x 36 x 29 inches, listed as 36 inches wide and 29 inches high with 4.844 inches of length. It's a surface mount unit, so lay out the wall for that footprint plus the working clearance your inspector requires in front of it.
10) Ringless versus ring-type meter socket, which one do I order?
The U2864-X is ringless, meaning the meter is retained by the socket cover itself rather than a separate sealing ring. Utilities specify one or the other and they are not interchangeable in the field, so the utility's requirement decides it, not preference. If your serving utility calls for ring-type, this is the wrong enclosure. Where ringless is accepted, the horn bypass builds let a meter be pulled without interrupting the tenants below it.
11) Can the U2864-X be pole or pedestal mounted instead of on a building wall?
The standard U2864-X is a surface mount enclosure meant for a wall. For a freestanding installation, order U2864-X-KK-PED, the horn bypass pedestal mount build, or U2864-X-KK-PED-CECHA where Commonwealth Edison Chicago Housing Authority approval is required. Mobile home parks and lots with no suitable wall are where the pedestal builds go.
12) Does the Milbank 4-position meter socket include tenant receptacles or house power?
No receptacles are built into the U2864-X. It carries zero receptacles, four metering positions and four branch circuits only. If the job needs a house panel or convenience outlet at the service, that's separate equipment.
