Milbank 4-Position Ringless Meter Socket with Main Breaker Provision - 200A, 240V, Surface Mount

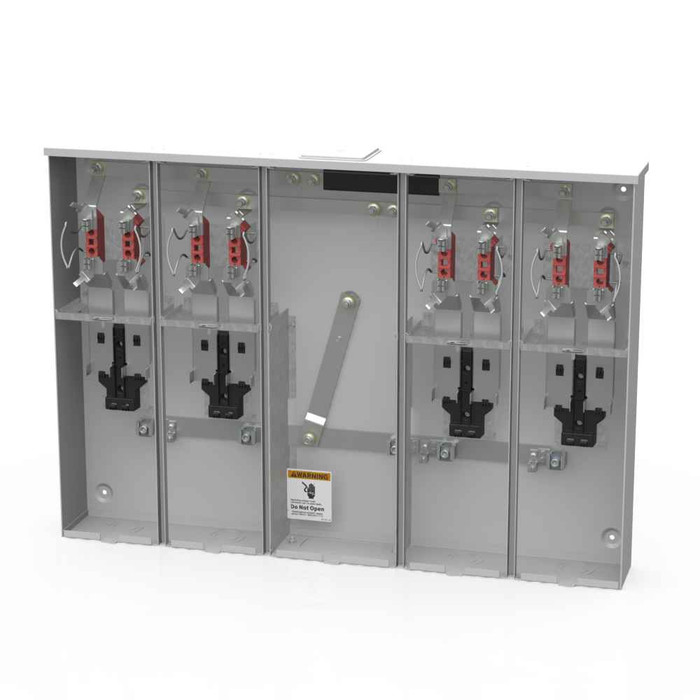

Milbank 4-Position Ringless Meter Socket with Main Breaker Provision

Professional Multi-Unit Electrical Service Solution

The Milbank 4-Position Ringless Meter Socket delivers reliable electrical service distribution for multi-unit applications with 200 continuous ampere rating and 240V AC capacity. Featuring G90 galvanized steel construction with powder coat finish and Type 3R enclosure rating, this surface mount unit provides durable performance for overhead or underground cable entry configurations.

Professional Features & Benefits

• 200 Continuous Ampere Rating: Handles substantial electrical loads for multi-unit residential and commercial applications with reliable capacity.
• 4-Position Meter Configuration: Accommodates four separate metering points in a single enclosure for efficient space utilization and installation.
• Type 3R Enclosure Rating: Provides weather-resistant protection suitable for outdoor installations and harsh environmental conditions.
• G90 Galvanized Steel Construction: Delivers superior corrosion resistance and structural integrity with professional powder coat finish.
• Flexible Cable Entry: Supports both overhead and underground service connections for versatile installation requirements.
• Glass Polyester Insulation: Ensures reliable electrical isolation and safety performance in demanding service applications.
• UL Listed Certification: Meets rigorous safety and performance standards for professional electrical installations.

Technical Specifications

• Amperage Rating: 200 Continuous Ampere
• Application: Meter Socket With Main
• Brand Name: Milbank
• Cable Entry: Overhead or Underground
• Departent: Electrical
• Equipment Ground: Ground Lug
• Frequency Rating: 60 Hertz
• Hub Closing Plate: Large Closing Plate
• Insulation: Glass Polyester
• Line Side Wire Range: 6 AWG - 350 kcmil
• Load Side Wire Range: 1 AWG - 300 kcmil
• Number Branch Circuits: 4
• Number Of Meter Positions: 4 Positions
• Number Of Receptacles: 0
• Phase: 1 Phase
• Product Family Code: CU20
• Product Height: 30 IN
• Product Length: 5.125 IN
• Product Material: G90 Galvanized Steel with Powder Coat Finish
• Product Mounting: Surface Mount
• Product Type: Ringless Meter Socket
• Standard: UL Listed;Type 3R
• Unspsc Number: 39121102
• Voltage Rating: Up to 240 Volts Alternating Current
• Width: 42.813 IN

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Multi-Unit Residential Properties
• Apartment Buildings and Condominiums
• Commercial Strip Centers
• Small Office Buildings
• Retail Establishments
• Mixed-Use Developments
• Professional Service Buildings

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather-resistant construction. The G90 galvanized steel with powder coat finish ensures long-term durability and corrosion resistance for demanding electrical service applications.
