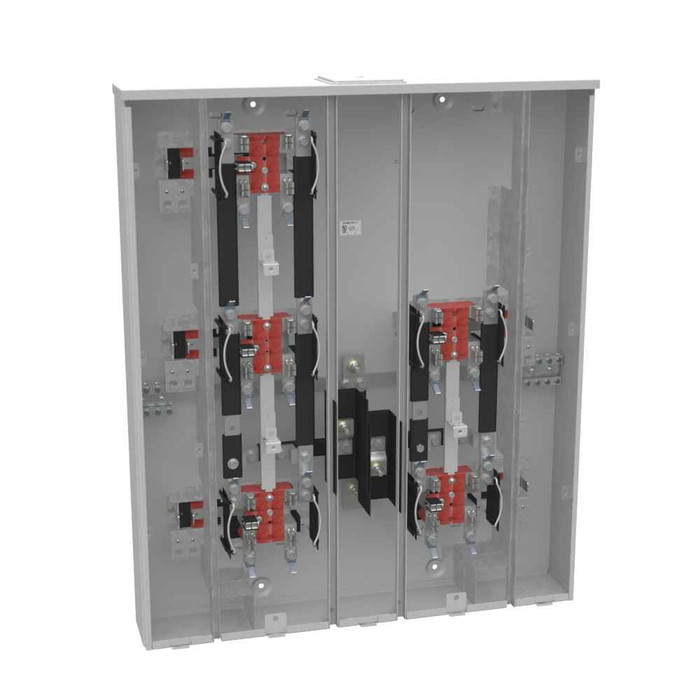

Milbank 5-Position Ringless Meter Socket with Main Breaker Provision - 125A, 240V, Surface Mount

Milbank 5-Position Ringless Meter Socket with Main Breaker Provision

Professional Multi-Unit Metering Solution with Main Breaker Provision

The Milbank 5-Position Ringless Meter Socket delivers reliable multi-unit electrical metering with 125 continuous ampere rating and 240V AC capacity. Featuring G90 galvanized steel construction with powder coat finish and Type 3R enclosure rating, this surface mount meter socket provides professional-grade durability for overhead or underground cable entry applications. The 4-terminal design with large closing plate and glass polyester insulation ensures dependable service in demanding installations.

Professional Features & Benefits

• 125 Continuous Ampere Rating: Provides robust capacity for multi-unit residential and light commercial applications with reliable current handling.
• 5-Position Configuration: Accommodates multiple meter installations in a single enclosure, optimizing space utilization and installation efficiency.
• Main Breaker Provision: Includes provision for main breaker installation, enabling comprehensive electrical protection and control at the service entrance.
• Type 3R Enclosure Rating: Weather-resistant construction protects against rain, sleet, and ice formation for reliable outdoor performance.
• G90 Galvanized Steel with Powder Coat: Corrosion-resistant materials ensure long-term durability and professional appearance in harsh environments.
• Overhead or Underground Entry: Versatile cable entry options accommodate various installation requirements and utility configurations.
• UL Listed Certification: Meets rigorous safety standards for professional electrical installations and code compliance.

Technical Specifications

• Amperage Rating: 125 Continuous Ampere
• Application: Meter Socket With Main
• Brand Name: Milbank
• Cable Entry: Overhead or Underground
• Departent: Electrical
• Equipment Ground: Ground Lug
• Frequency Rating: 60 Hertz
• Hub Closing Plate: Large Closing Plate
• Insulation: Glass Polyester
• Main Breaker Size: Breaker Provision
• Number Branch Circuits: 5
• Number Of Jaws: 4 Terminal
• Number Of Meter Positions: 5 Positions
• Number Of Receptacles: 0
• Phase: 1 Phase
• Product Family Code: CU12
• Product Height: 37 IN
• Product Material: G90 Galvanized Steel with Powder Coat Finish
• Product Mounting: Surface Mount
• Product Type: Ringless Meter Socket
• Special Features: Commonwealth Edison Chicago Housing Authority
• Standard: UL Listed;Type 3R
• Terminal: 3/8 Inch Stud
• Unspsc Number: 39121102
• Voltage Rating: Up to 240 Volts Alternating Current
• Width: 31 IN

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Multi-Unit Residential Properties
• Apartment Buildings and Condominiums
• Commercial Multi-Tenant Facilities
• Mixed-Use Developments
• Housing Authority Projects
• Light Commercial Buildings
• Professional Office Complexes

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather-resistant construction. The G90 galvanized steel with powder coat finish provides exceptional corrosion resistance, while the glass polyester insulation ensures long-term electrical integrity. Professional-grade materials and construction deliver dependable service for demanding multi-unit metering applications.
