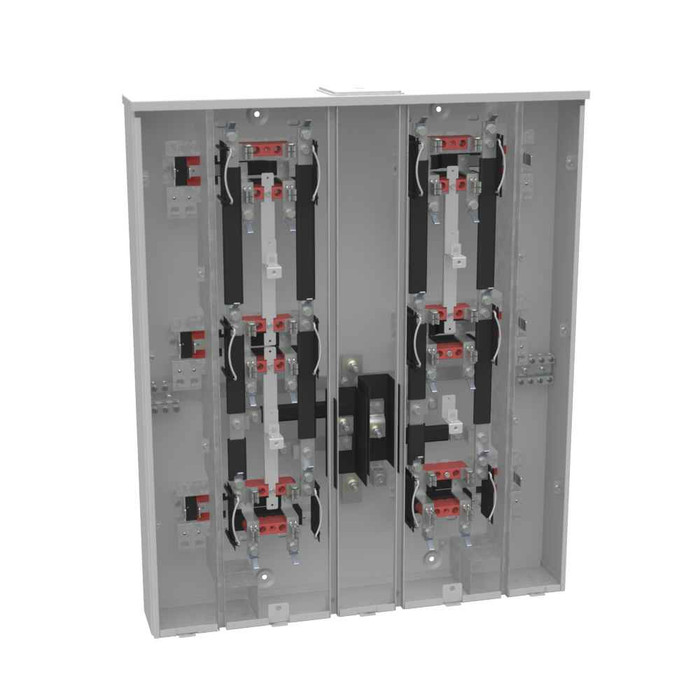

Milbank U2856-X 4-5 Terminal Ringless Meter Socket Large Closing Plate 6 Position 6-125 Ampere Main Breaker Provision

Milbank 6-Position Ringless Meter Socket with Main Breaker Provision 125A 1-Phase Surface Mount

(No reviews yet) Write a Review

Model: U2856-X-KK-5T

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3,545.98
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 6-Position Ringless Meter Socket with Main Breaker Provision 125A 1-Phase Surface Mount

Professional Multi-Tenant Metering Solution with Main Breaker Provision

The Milbank 6-Position Ringless Meter Socket delivers reliable multi-tenant electrical metering with 125 continuous ampere capacity and 1-phase 240V AC service. Featuring G90 galvanized steel construction with powder coat finish and Type 3R enclosure rating, this surface mount unit provides durable performance for overhead or underground cable entry applications with main breaker provision capability.

Professional Features & Benefits

  • 125 Continuous Ampere Rating: Provides robust electrical capacity for multi-tenant applications with reliable current handling capability.
  • 6-Position Configuration: Accommodates multiple meter installations in a single compact unit, maximizing space efficiency and installation flexibility.
  • G90 Galvanized Steel with Powder Coat Finish: Delivers superior corrosion resistance and long-lasting durability in various environmental conditions.
  • Type 3R Enclosure Rating: Ensures protection against rain, sleet, and ice formation for reliable outdoor installation performance.
  • Ringless Design: Simplifies meter installation and maintenance with enhanced accessibility and reduced connection complexity.
  • Main Breaker Provision: Accommodates main breaker installation for enhanced electrical protection and load management capability.
  • UL Listed: Meets rigorous safety and performance standards for professional electrical installations and code compliance.

Technical Specifications

  • Amperage Rating: 125 Continuous Ampere
  • Application: Meter Socket With Main
  • Brand Name: Milbank
  • Cable Entry: Overhead or Underground
  • Departent: Electrical
  • Equipment Ground: Ground Lug
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Large Closing Plate
  • Insulation: Glass Polyester
  • Main Breaker Size: Breaker Provision
  • Number Branch Circuits: 6
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 6 Positions
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: CU12
  • Product Height: 37 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Type: Ringless Meter Socket
  • Special Features: Commonwealth Edison Chicago Housing Authority
  • Standard: UL Listed;Type 3R
  • Terminal: 3/8 Inch Stud
  • Unspsc Number: 39121102
  • Voltage Rating: Up to 240 Volts Alternating Current
  • Width: 31 IN

Professional Applications

  • Multi-Unit Residential Properties
  • Apartment Buildings and Condominiums
  • Commercial Multi-Tenant Facilities
  • Mixed-Use Developments
  • Housing Authority Projects
  • Property Management Applications
  • Utility Metering Installations

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R enclosure protection. The G90 galvanized steel construction with powder coat finish ensures long-term durability, while the glass polyester insulation and ground lug equipment grounding provide enhanced safety and performance for professional electrical installations.

Manufacturer Resources

Product Specs

Amperage Rating:
125 Continuous Ampere
Application:
Meter Socket With Main
Brand Name:
Milbank
Cable Entry:
Overhead or Underground
Equipment Ground:
Ground Lug
Frequency Rating:
60 Hertz
Hub Closing Plate:
Large Closing Plate
Insulation:
Glass Polyester
Main Breaker Size:
Breaker Provision
Number Branch Circuits:
6
Number Of Main Breakers:
0
Number Of Meter Positions:
6 Positions
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
CU12
Product Height:
37 IN
Product Type:
Ringless Meter Socket
Special Features:
Commonwealth Edison Chicago Housing Authority
Standards:
UL Listed;Type 3R
Terminal:
3/8 Inch Stud
Unspsc Number:
39121102
Voltage Rating:
Up to 240 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
125
Product Width:
31 IN
Department:
Electrical
Product Subgroup:
Electrical
Insulation Type:
Glass Polyester
Hub Style:
Large Closing Plate
Installation Category:
Surface Mount
Terminal Type:
3/8 Inch Stud
Number of Phases:
1
Frequency:
60 hertz
Product Details:
Ringless Meter Socket
Product Group:
Metering & Service Entrance

Milbank U2856-X-KK-5T – Frequently Asked Questions

1) Does the Milbank U2856-X meter socket come with a main breaker installed?
No. The U2856-X is supplied with a main breaker provision only, and the number of main breakers is zero. You get the space and mounting arrangement to add a main, but the breaker itself has to be ordered separately. If you need a factory-installed main, this is not the unit to spec.
2) How many tenants can the Milbank 6-position ringless meter socket serve, and at what amperage?
Six meter positions with six branch circuits, rated 125 continuous amperes at up to 240 volts AC, single phase, 60 Hz. That covers a six-unit apartment or small multi-tenant commercial building off one service point. The 125A rating is the socket's continuous capacity, not a per-tenant figure.
3) Can the Milbank U2856-X be installed outdoors on an exterior wall?
Yes. It is a Type 3R enclosure, UL Listed, built from G90 galvanized steel with a powder coat finish, so it is rated for outdoor wall mounting where rain, sleet and ice are the exposure. It is a surface mount unit, so it bolts to the wall face rather than recessing into it.
4) Will the U2856-X work with an underground service lateral, or is it overhead only?
Either. Cable entry is rated for overhead or underground, and it ships with a large closing plate over the hub opening so you can fit the hub your utility requires for an overhead drop, or leave the plate in place and bring the lateral in from below.
5) Which Milbank U2856-X option do I order for a ComEd or Chicago Housing Authority job?
The U2856-X-KK-PED-CECHA is the CECHA approved configuration, horn bypass with vertical pedestal mount. The other five options are the plain U2856-X, the -HSP with a stainless steel hasp, the -KK horn bypass, the -KK-5T five terminal horn bypass vertical, and the -KK-PED horn bypass pedestal mount with single connector. Utility approval drives this choice more than anything else, so confirm what the serving utility will accept before you pick.
6) Can I use the Milbank U2856-X on a 208Y/120 three-phase service?
No. This is a single-phase socket rated up to 240 volts AC at 60 Hz. For a three-phase service you need a three-phase gang socket instead. Single-phase 120/240 residential and light commercial multi-tenant services are what this unit is built for.
7) What wall space do I need for a Milbank 6-position 125A meter socket?
The enclosure is 37 inches high by 31 inches wide. Plan the surface-mount backing and working clearance around those dimensions before you set the unit, and allow for conduit entry above or below depending on whether the feed is overhead or underground.
8) What is the difference between the wall-mount and pedestal-mount versions of the Milbank U2856-X?
The base enclosure is a surface mount unit meant to go on a building wall. The -KK-PED and -KK-PED-CECHA options are configured for pedestal mounting, which is what you use when there is no wall at the service point, typically a free-standing gang meter in a parking area or between buildings. Both pedestal options include horn bypass.
9) Should I order 4-terminal or 5-terminal sockets on the Milbank U2856-X?
Take the -KK-5T if your utility requires five-terminal jaws in a vertical horn bypass arrangement. The standard U2856-X and the plain -KK horn bypass cover the usual 4 and 5 terminal ringless applications. The utility, not the building, decides this, so get the meter requirement in writing first.
10) What does horn bypass add on the Milbank meter socket, and do I need it?
Horn bypass lets the meter be pulled without dropping power to the tenant, which is why many utilities mandate it on multi-position gang sockets. Four of the six U2856-X configurations include it: -KK, -KK-5T, -KK-PED and -KK-PED-CECHA. If your utility does not require bypass, the standard U2856-X or the hasp version will do.
11) How are the line and load conductors landed in the Milbank U2856-X, and how is it grounded?
Connections are made to 3/8 inch studs, and equipment grounding is through a ground lug in the enclosure. Size your lugs and terminations to suit the 3/8 inch stud hardware. Internal insulation is glass polyester.
12) Does the Milbank 6-position socket include tenant branch breakers or receptacles?
No breakers and no receptacles are supplied. It carries six branch circuit positions and zero receptacles, so house-power outlets and the individual tenant overcurrent devices are separate. Plan tenant panels downstream of the socket.
13) Which Milbank U2856-X option can be padlocked?
The U2856-X-HSP adds a stainless steel hasp so the cover can be padlocked, which matters on ground-level installs in multi-family or housing authority properties where tampering is a concern. The other configurations do not include the hasp.
